Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 5 illustrations

Illustrations

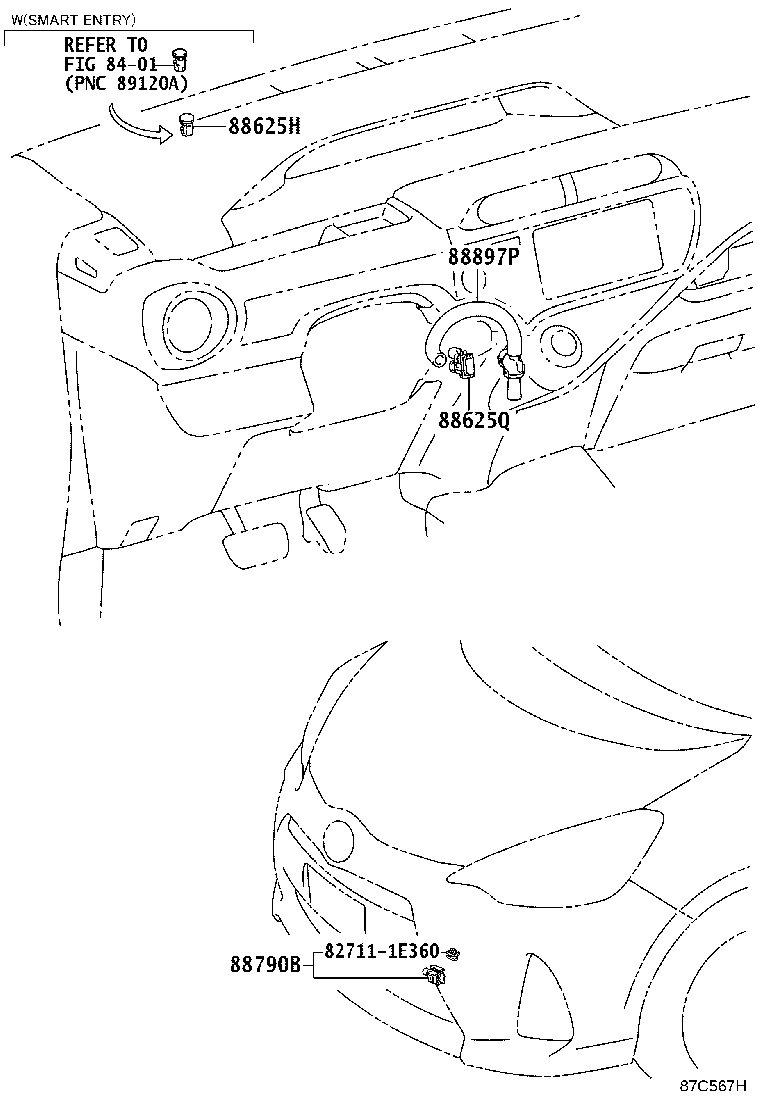

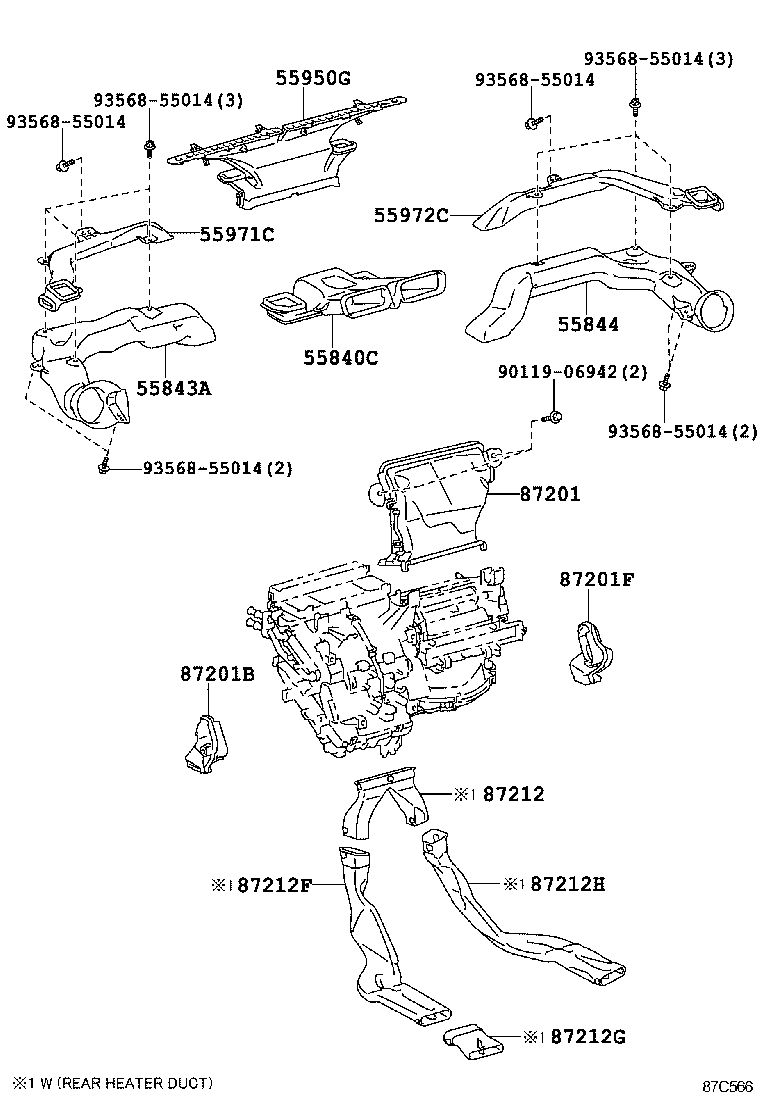

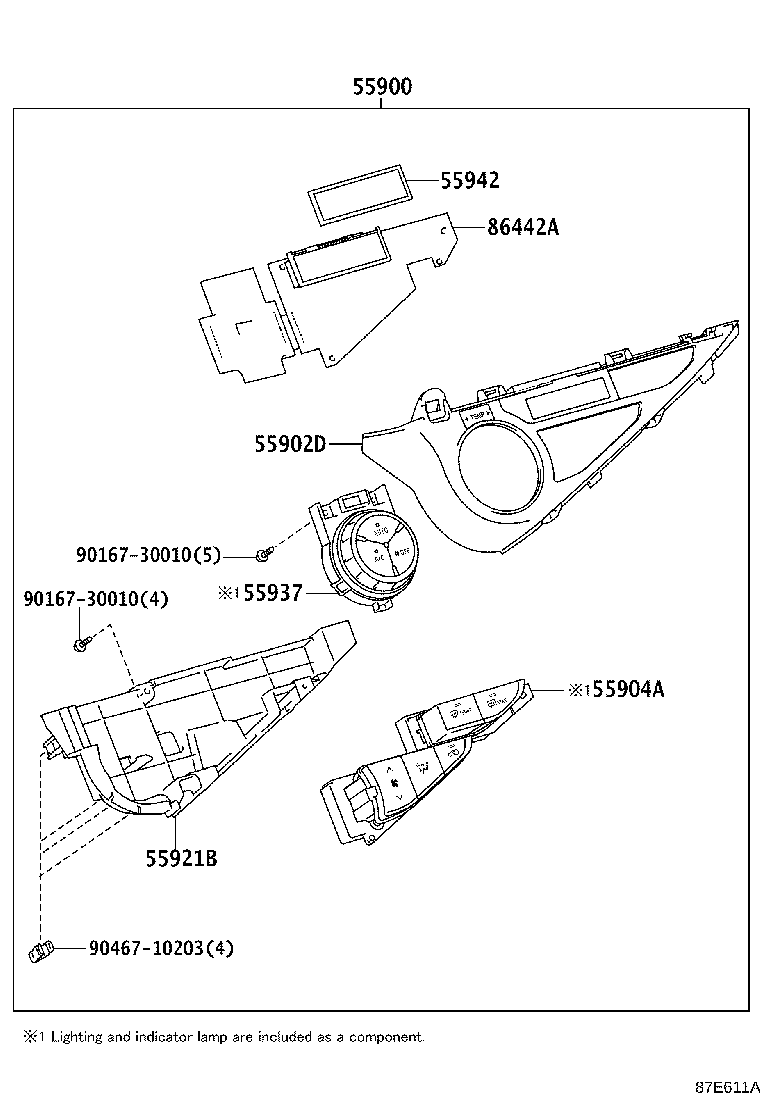

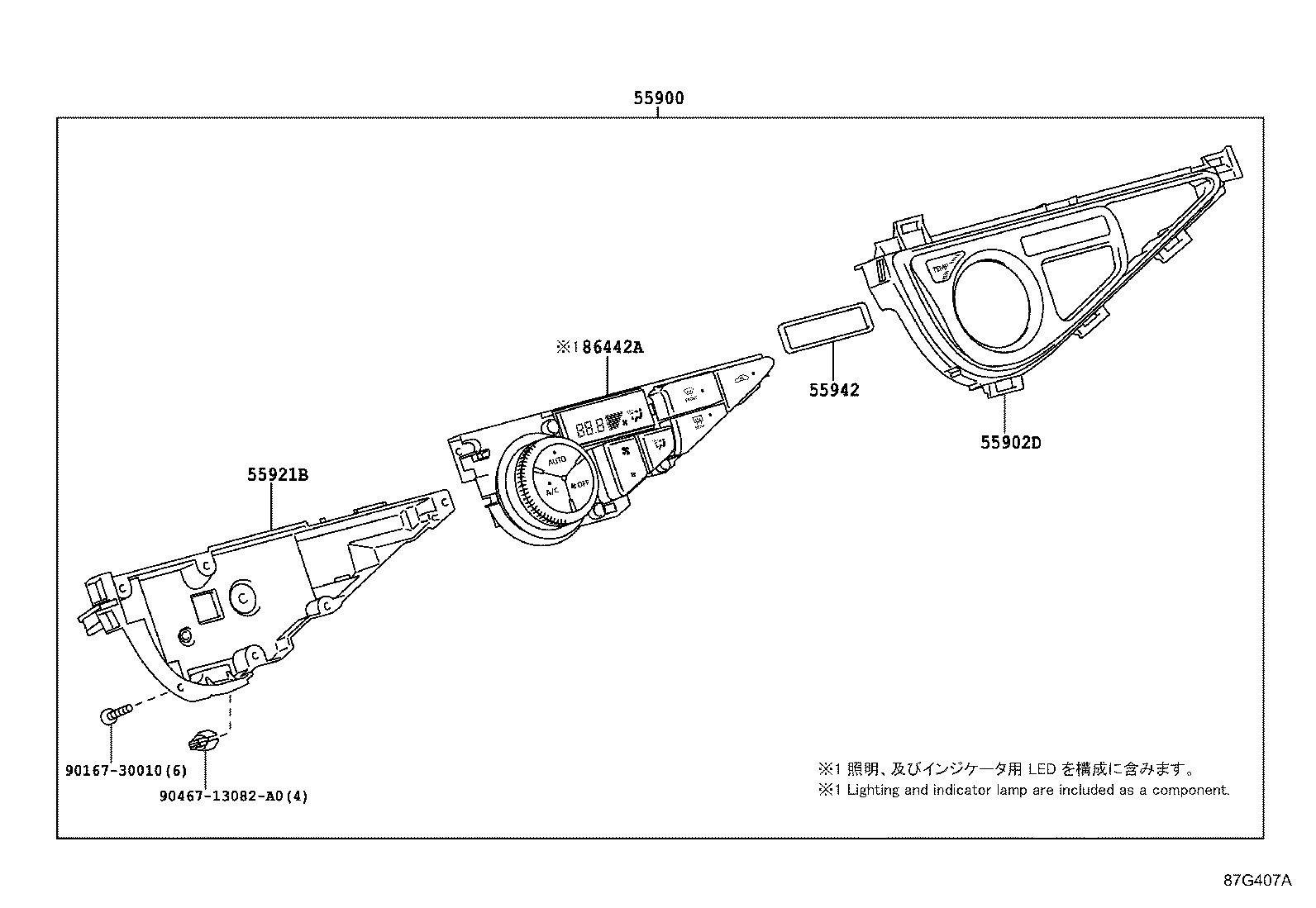

Figure 87C565A 87C565A 2011-12 → 2014-12 Figure 87E611A 87E611A 2014-12 → 2017-06 Figure 87G407A 87G407A 2017-06 → — Figure 87C566 87C566 2011-12 → — Figure 87C567H 87C567H 2011-12 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902D Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55921B Retainer, Heater Control
55937 Knob, Heater Control Lever
55942 Guard, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
86442A Board, Heater Control Switch
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
