Toyota Tercel
1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States
Discontinued model
Data version 1983-02

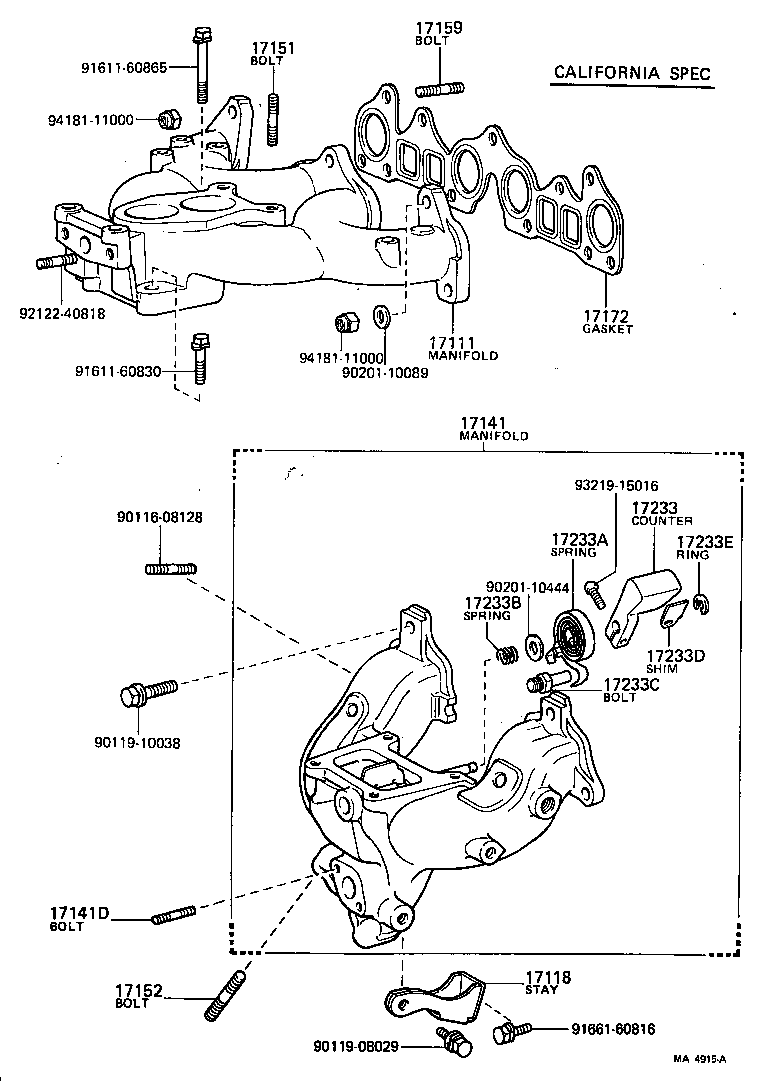

Manifold
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111C | Plug, NO.3 |
| 17118 | Stay, Manifold |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17233 | Counter Weight |
| 17233A | Spring, Spiral, NO.1(FOR COUNTER WEIGHT) |
| 17233B | Spring, Spiral, NO.2(FOR COUNTER WEIGHT) |
| 17233C | Bolt(FOR COUNTER WEIGHT) |
| 17233D | Shim(FOR COUNTER WEIGHT) |
| 17233E | Ring, E(FOR COUNTER WEIGHT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
