Toyota Tercel

1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States

Discontinued model Data version 1983-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 2 illustrations

Illustrations

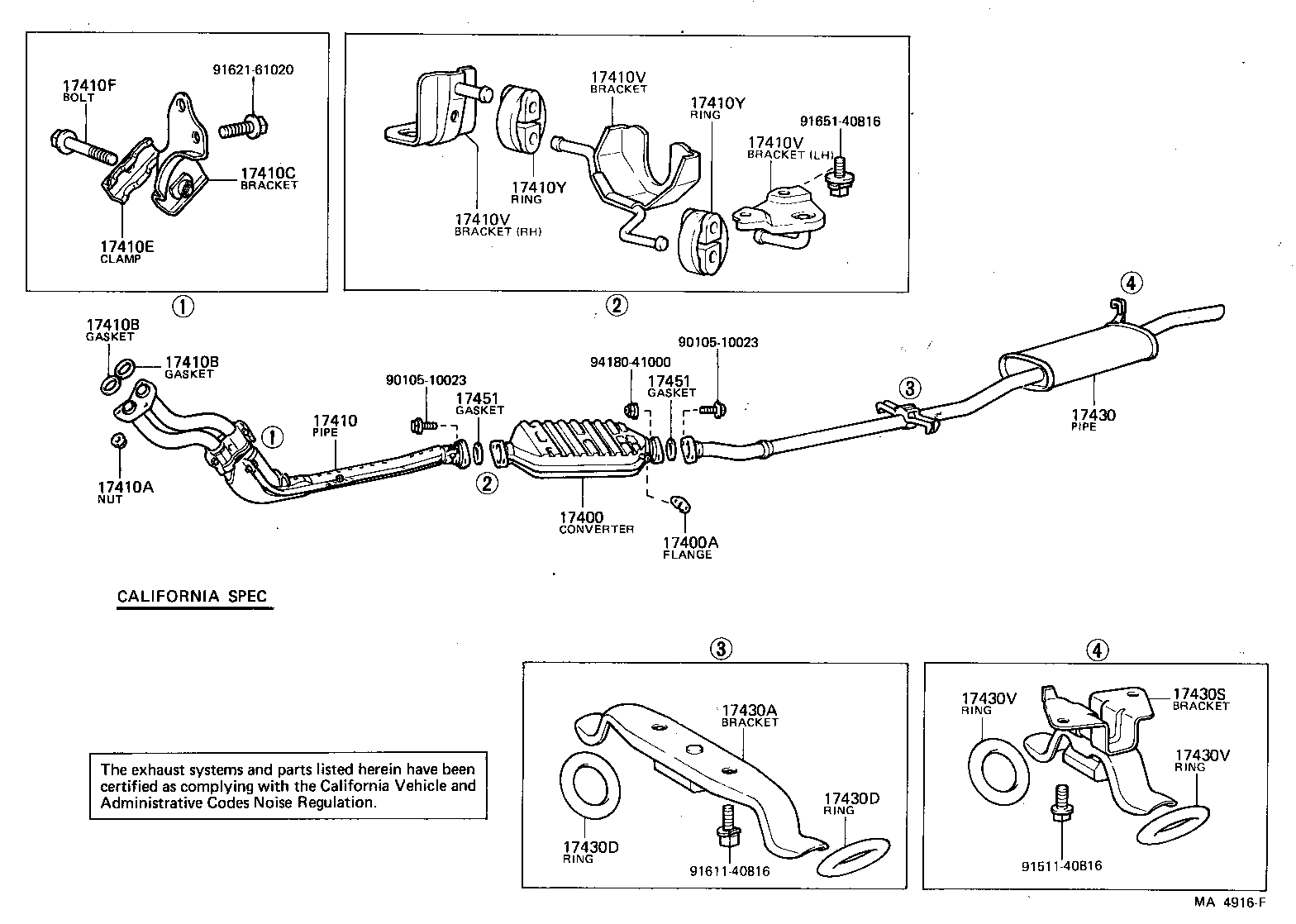

Figure MA4051H MA4051H 1979-08 → 1982-07 Figure MA4916F MA4916F 1980-08 → 1982-07

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
