Toyota Tercel

1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States

Discontinued model Data version 1983-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

32 part groups · 3 illustrations

Illustrations

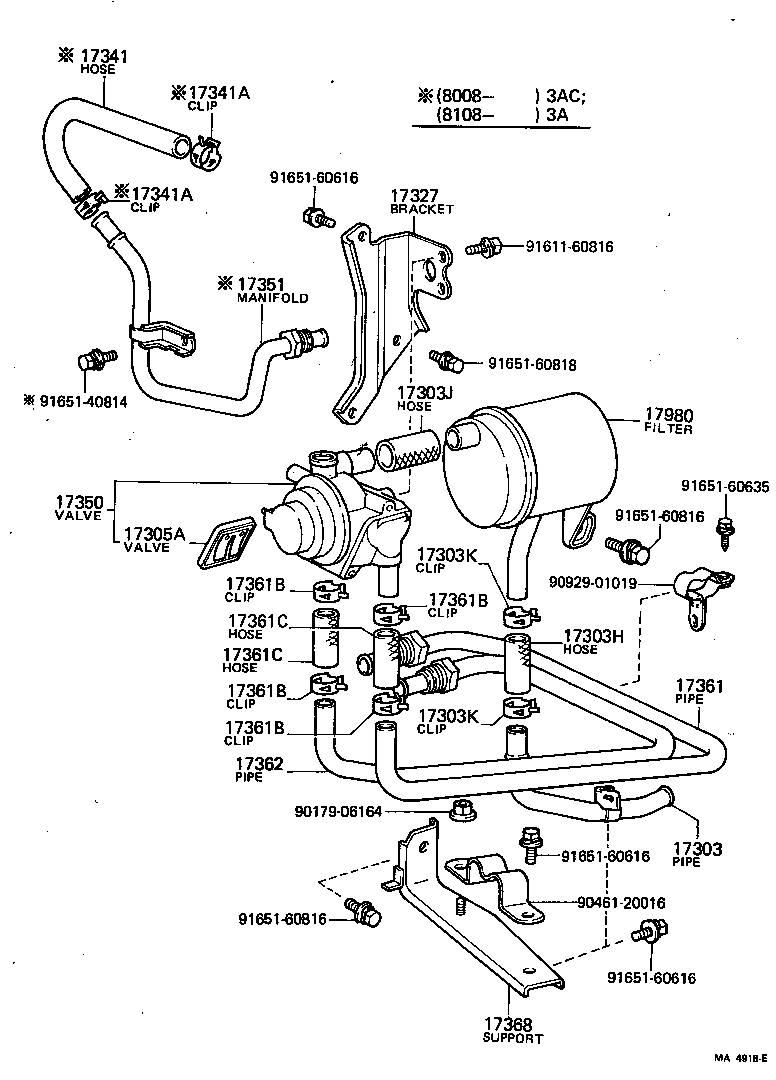

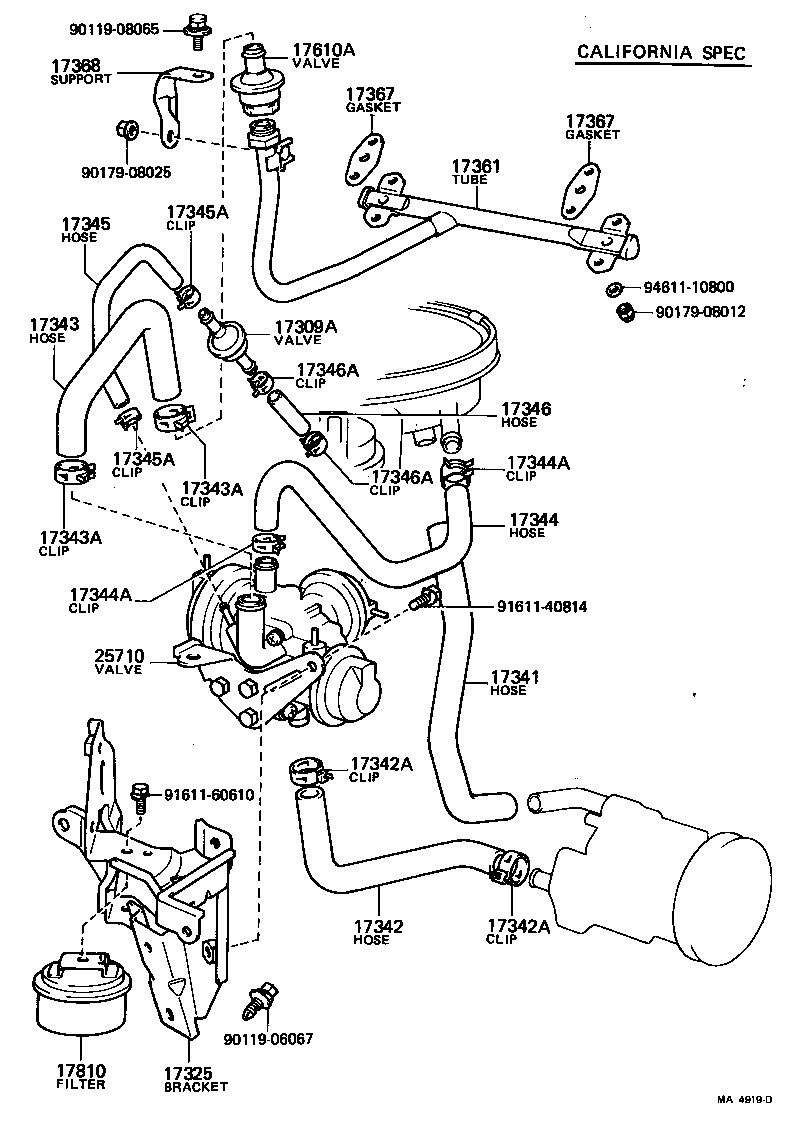

Figure MA4053C MA4053C 1979-08 → 1980-08 Figure MA4918E MA4918E 1980-08 → 1982-07 Figure MA4919D MA4919D 1980-08 → 1982-07

Part groups

PNCDescription
17303 Pipe Sub-assy, Air
17303H Hose, NO.1(FOR AIR PIPE)
17303J Hose, NO.2(FOR AIR PIPE)
17303K Clamp OR Clip(FOR AIR PIPE HOSE)
17305A Valve Sub-assy, Reed
17309A Valve, Check
17325 Bracket, Air Valve
17327 Bracket, Reed Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17345A Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
17346 Hose, NO.6(FOR AIR INJECTION SYSTEM)
17346A Clamp OR Clip, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17361 Tube, Air
17361B Clamp OR Clip(FOR AIR TUBE HOSE)
17361C Hose(FOR AIR TUBE)
17362 Tube, Air, NO.2
17367 Gasket, Air Tube
17368 Support, Air Tube
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17810 Filter Assy, Air
17980 Filter Assy, Air Suction
25710 Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
