Toyota Tercel

1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States

Discontinued model Data version 1983-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

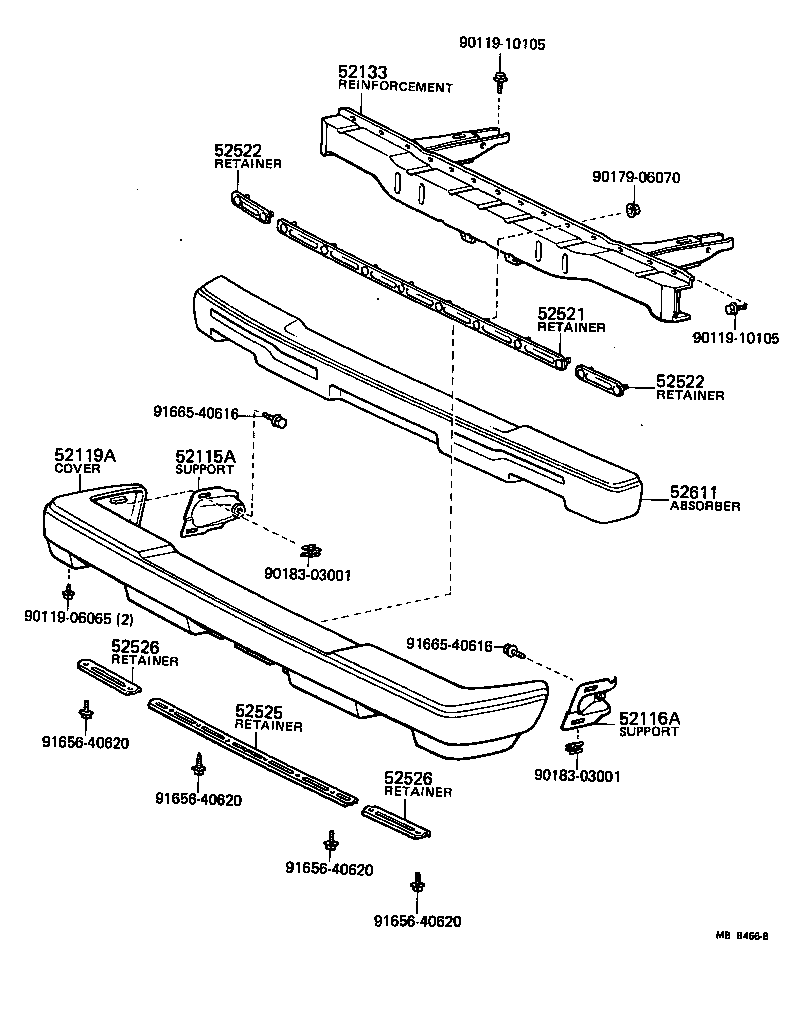

Figure MB7912C MB7912C 1979-08 → 1980-08 Figure MBB466B MBB466B 1980-08 → 1982-07

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52133 Reinforcement, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
