Toyota Tercel

1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States

Discontinued model Data version 1983-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

13 part groups · 2 illustrations

Illustrations

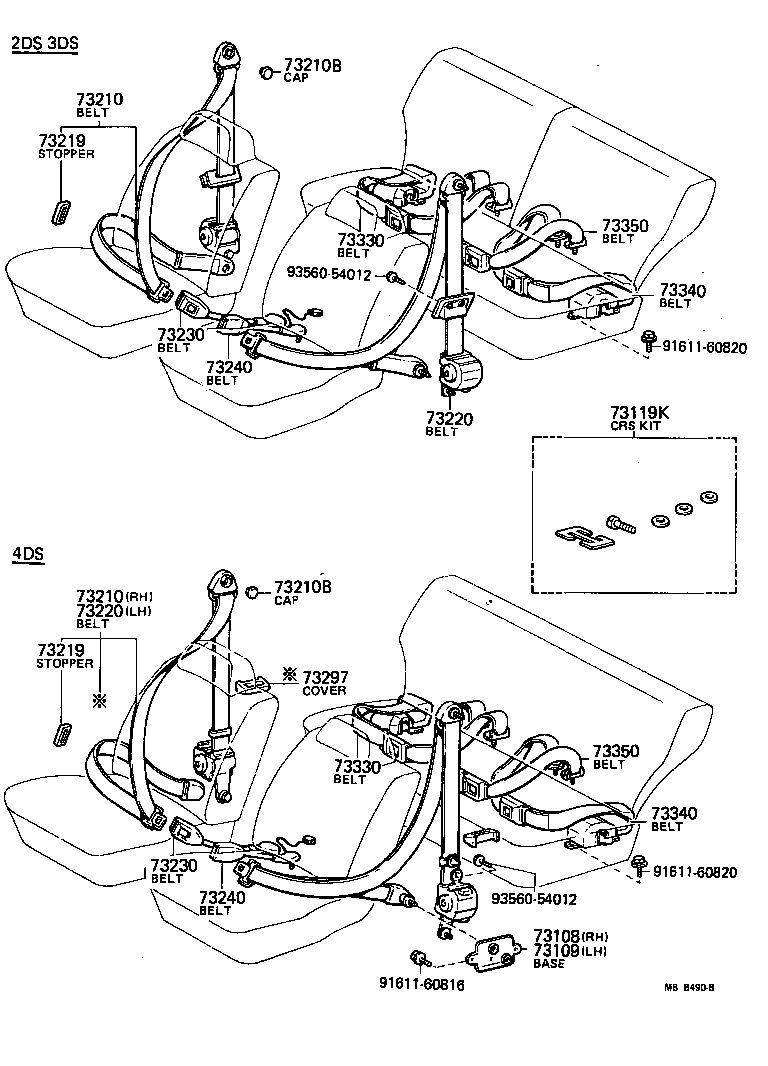

Figure MBA317A MBA317A 1979-08 → 1980-08 Figure MBB490B MBB490B 1980-08 → 1982-07

Part groups

PNCDescription
73108 Base Sub-assy, Front Seat Belt Anchor, RH
73109 Base Sub-assy, Front Seat Belt Anchor, LH
73119K Seat Kit, Child Restraint
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
