Toyota Tercel
1979-08 → 1982-07 · chassis AL1#(Z) · catalogue 131410 · United States
Discontinued model
Data version 1983-02
Switch & Relay & Computer
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

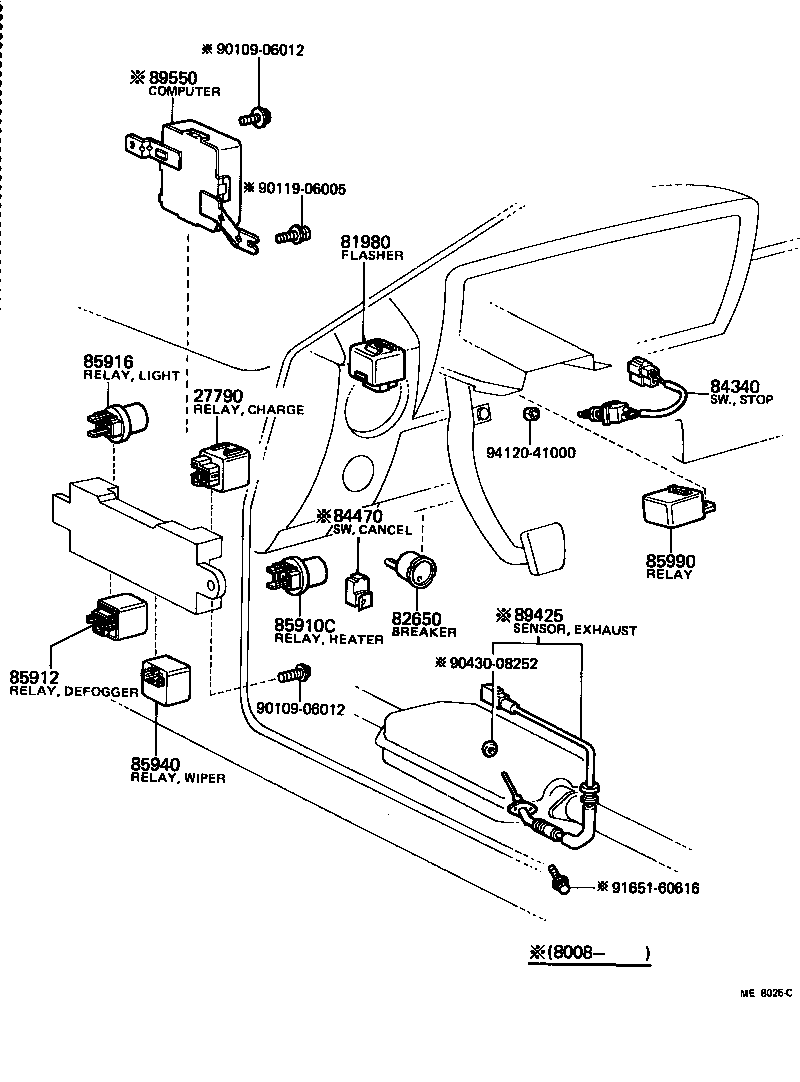

| 27790 | Relay Assy, Charge Lamp |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

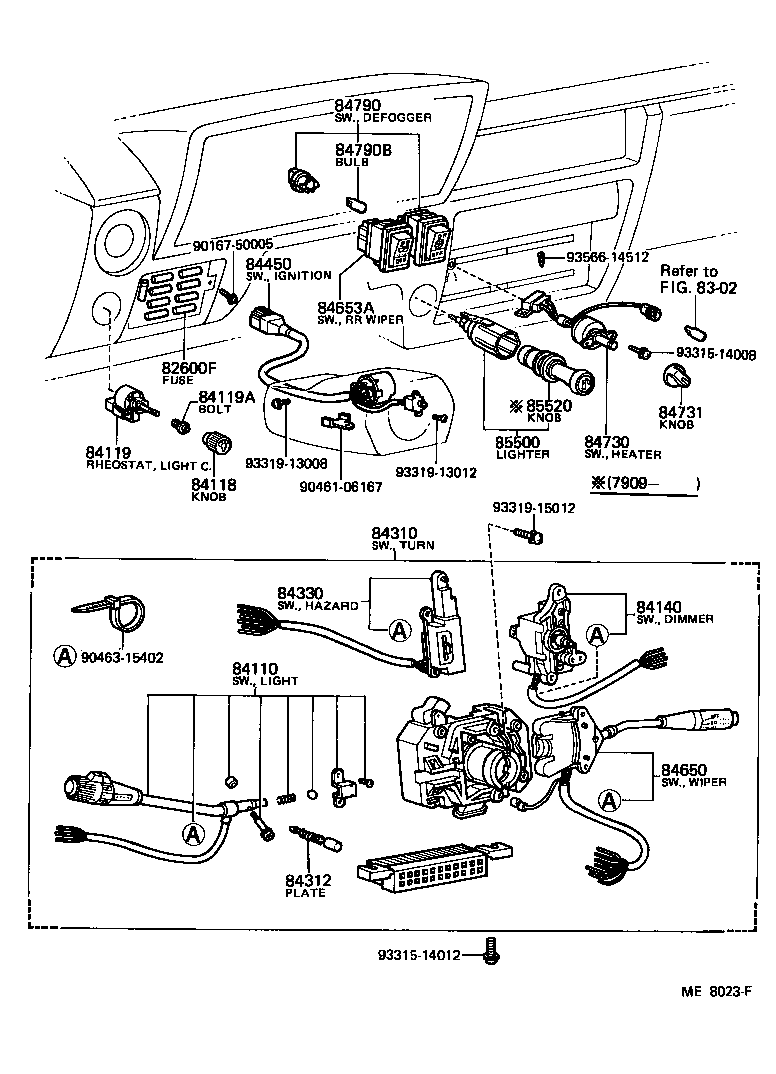

| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |

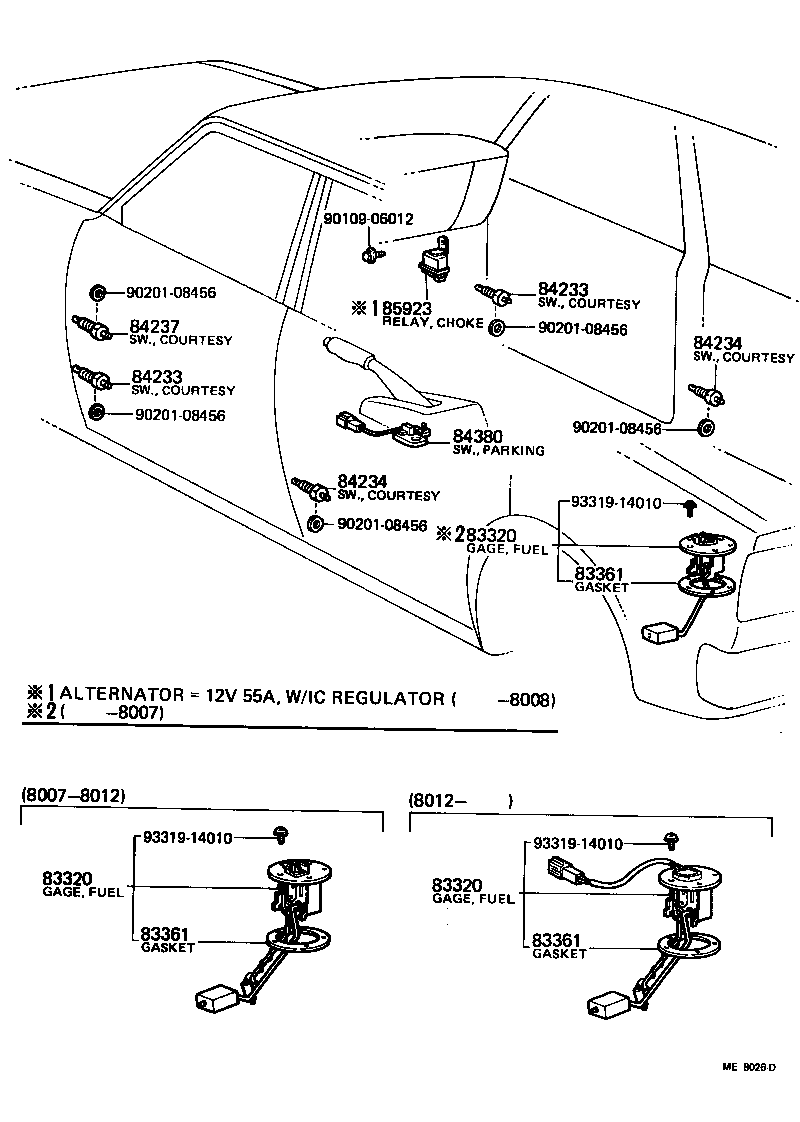

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84237 | Switch Assy, Courtesy Lamp (FOR STEERING UN-LOCK WARNING) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470 | Switch Assy, Warning Canceling |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84731 | Knob, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 85430 | Valve, Outer Vent Control |
| 85500 | Lighter Assy, Cigarette |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916 | Relay, Light Control |
| 85923 | Relay, Choke Control |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 85990 | Relay OR Computer Assy, Seat Belt Warning |
| 85999 | Bracket, Combination Relay |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89620 | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
