Toyota Tercel

1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 11 illustrations

Illustrations

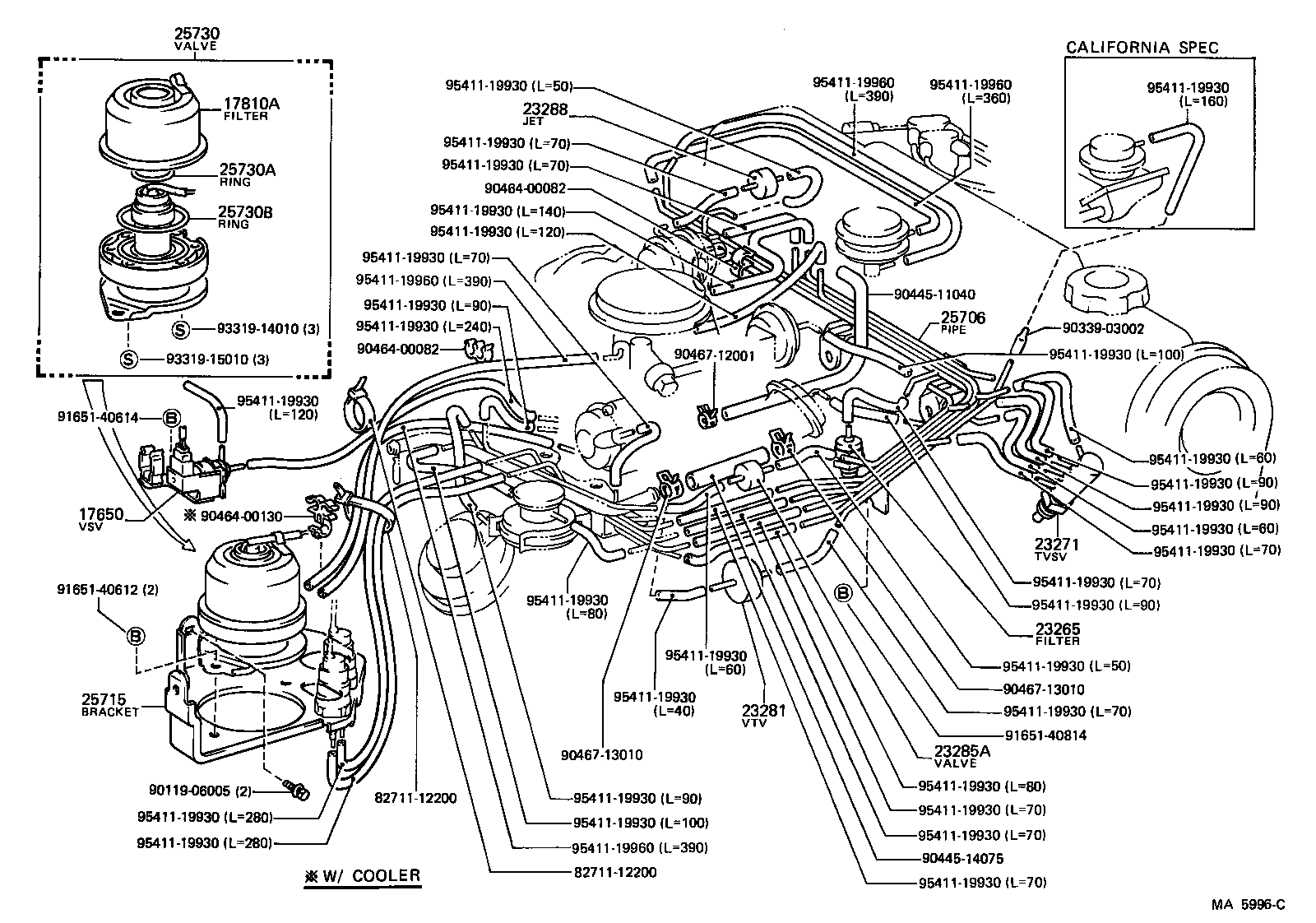

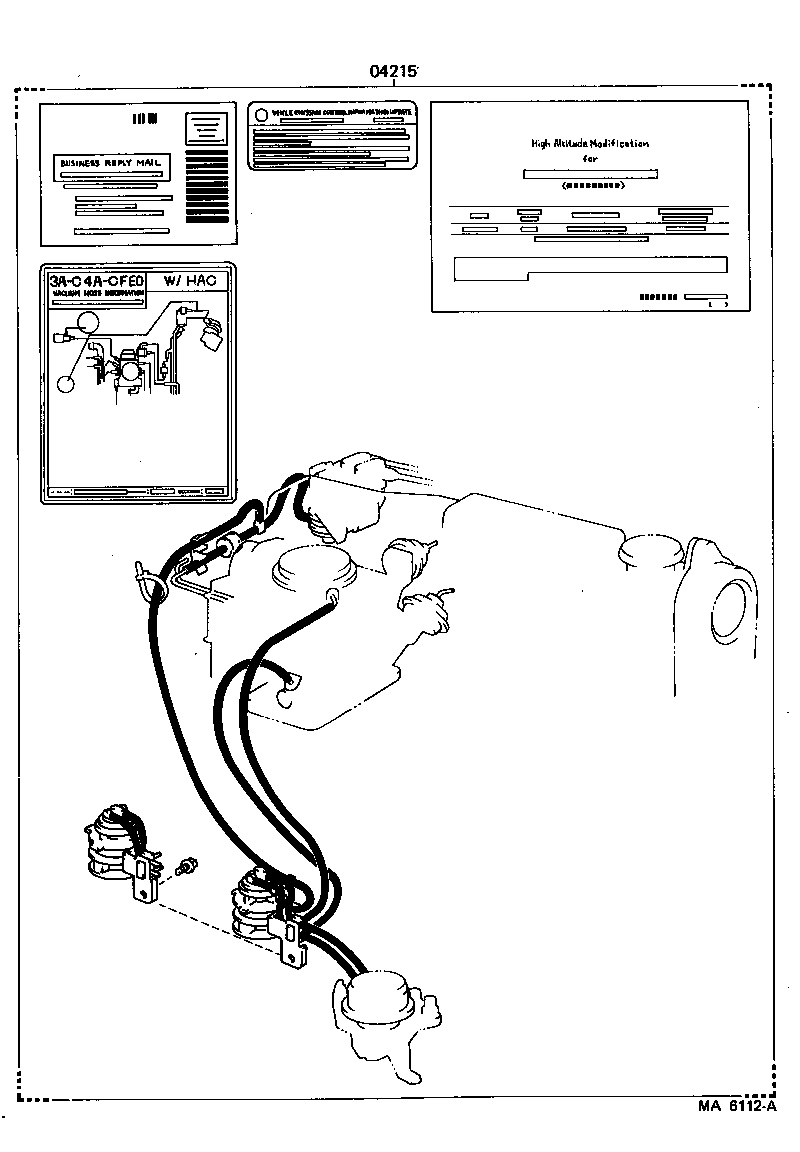

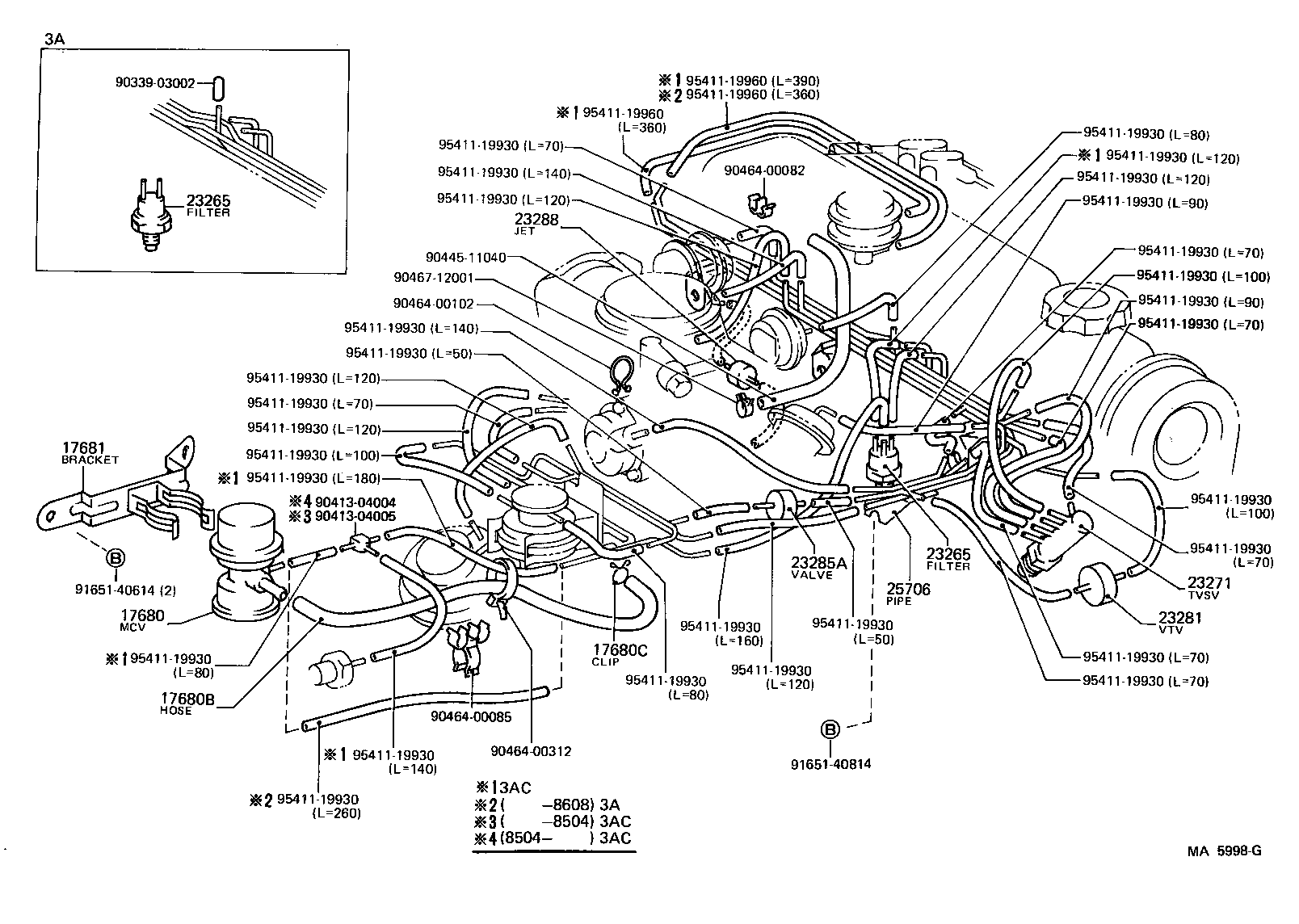

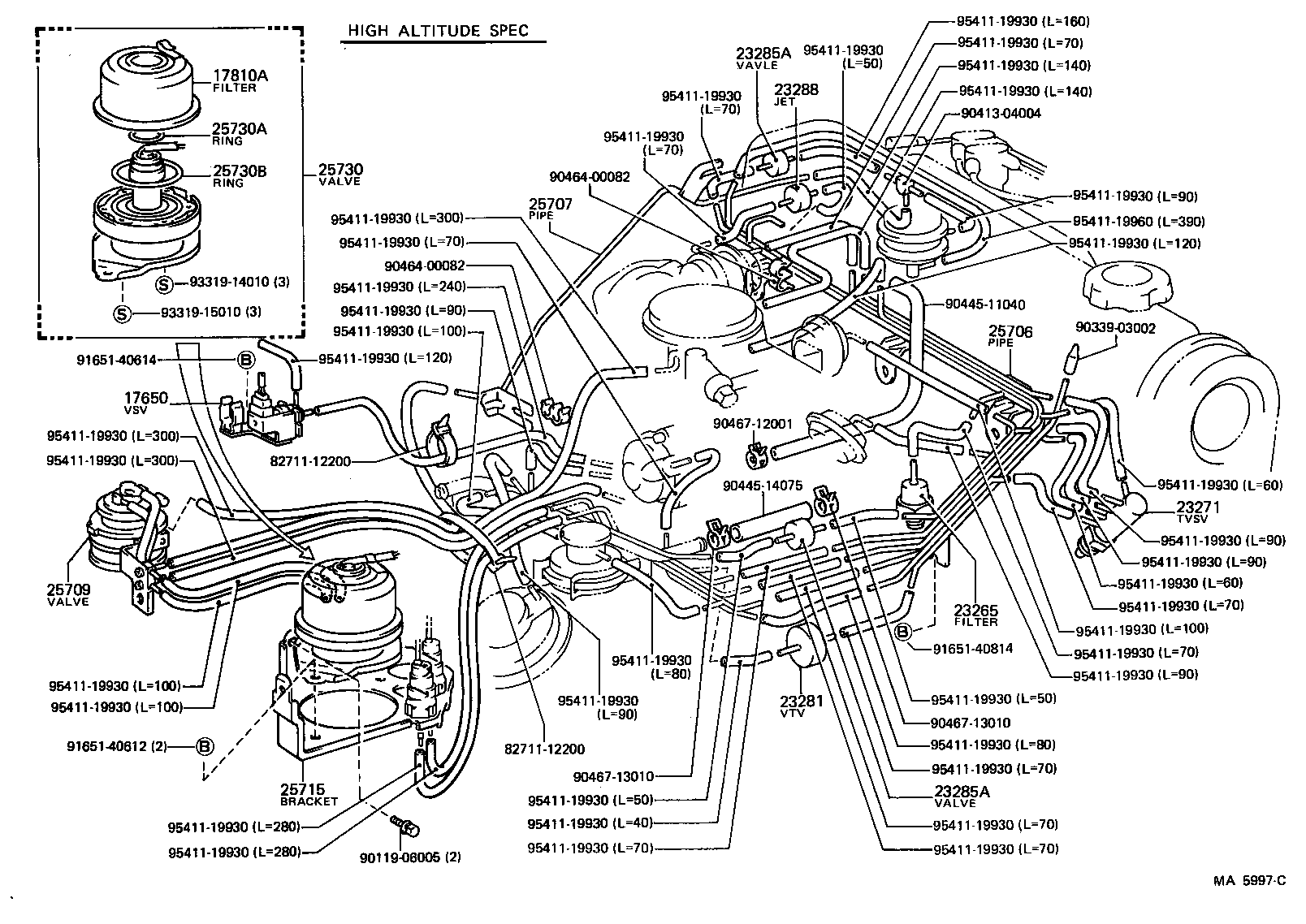

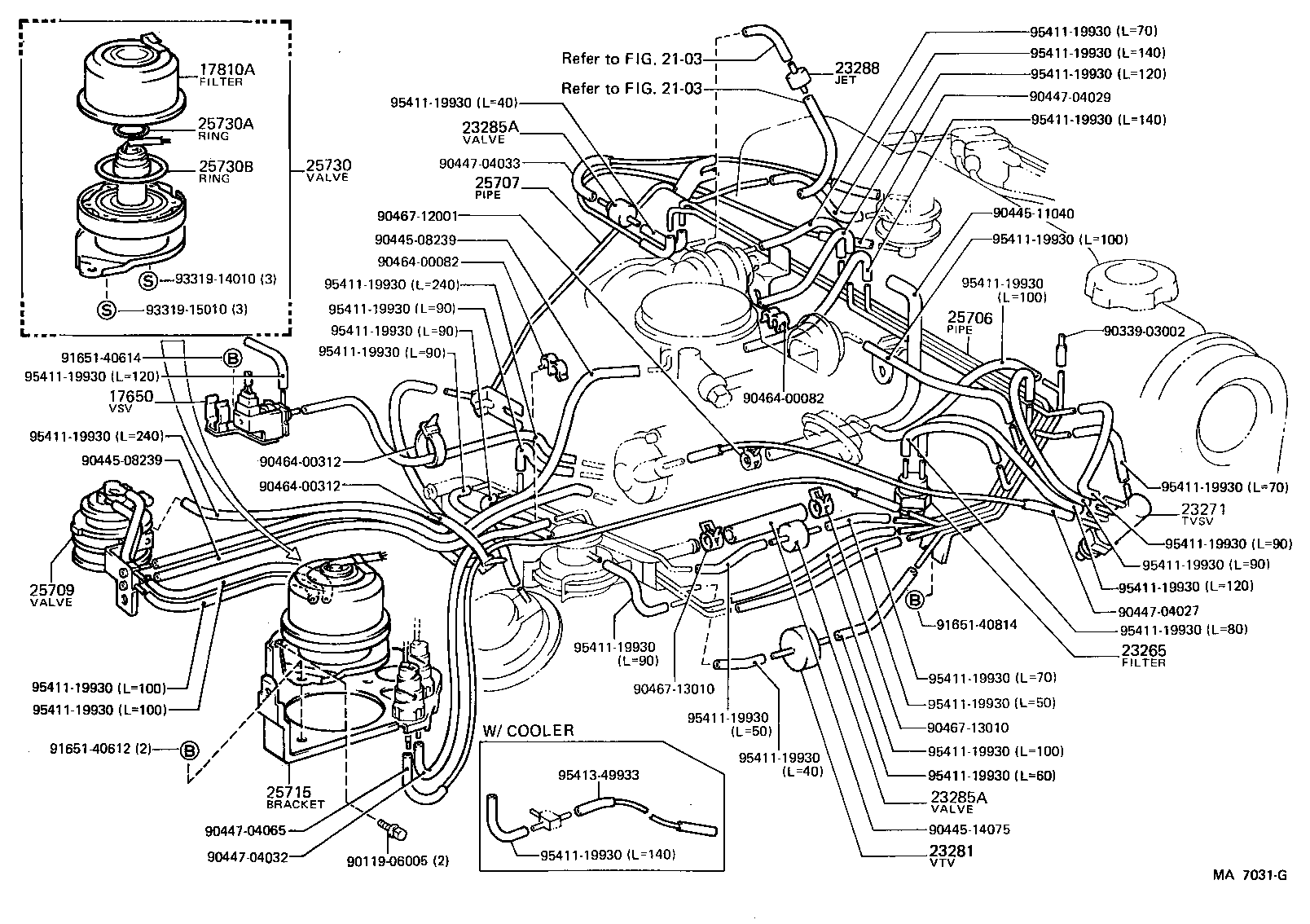

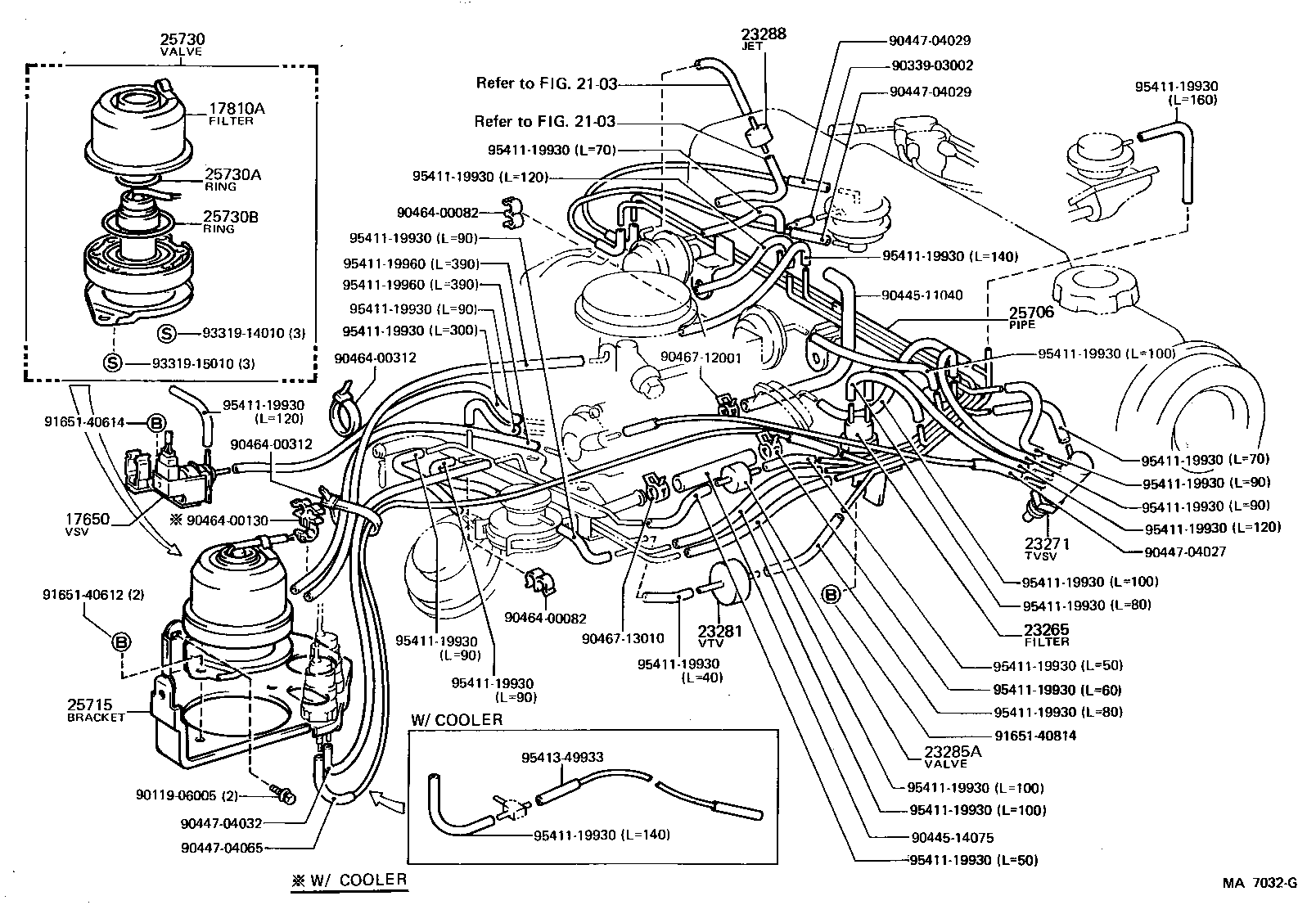

Figure MA9504A MA9504A 1982-08 → — Figure MA5996C MA5996C 1982-08 → 1983-08 Figure MA6112A MA6112A 1982-08 → 1983-08 Figure MA5997C MA5997C 1982-08 → 1983-08 Figure MA7031G MA7031G 1983-08 → 1984-08 Figure MA7031G MA7031G 1984-08 → — Figure MA7032G MA7032G 1983-08 → — Figure MA7032G MA7032G 1984-08 → 1986-08 Figure MA7032G MA7032G 1984-08 → — Figure MA5998G MA5998G 1982-08 → 1986-08 Figure MA5998G MA5998G 1986-08 → 1987-08

Part groups

PNCDescription
04215 Compensator Kit, High Altitude
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17680C Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
17681 Bracket, Mixture Control Valve
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
