Toyota Tercel

1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

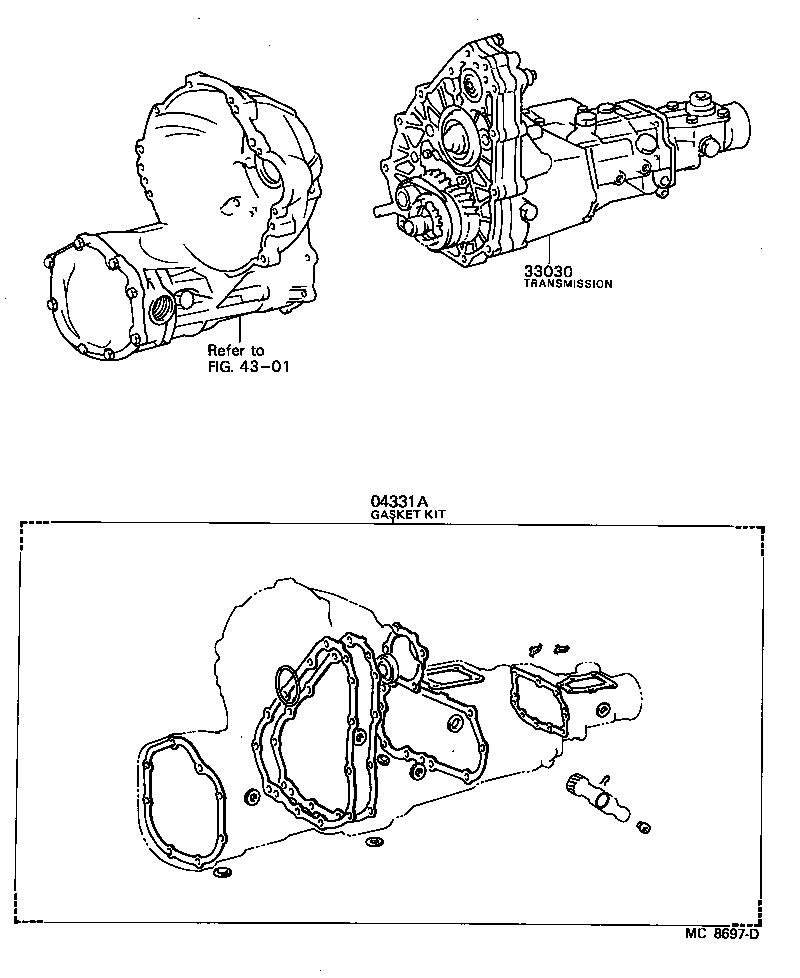

Figure MC8395C MC8395C 1982-08 → — Figure MC8697D MC8697D 1982-08 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
