Toyota Tercel

1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

19 part groups · 9 illustrations

Illustrations

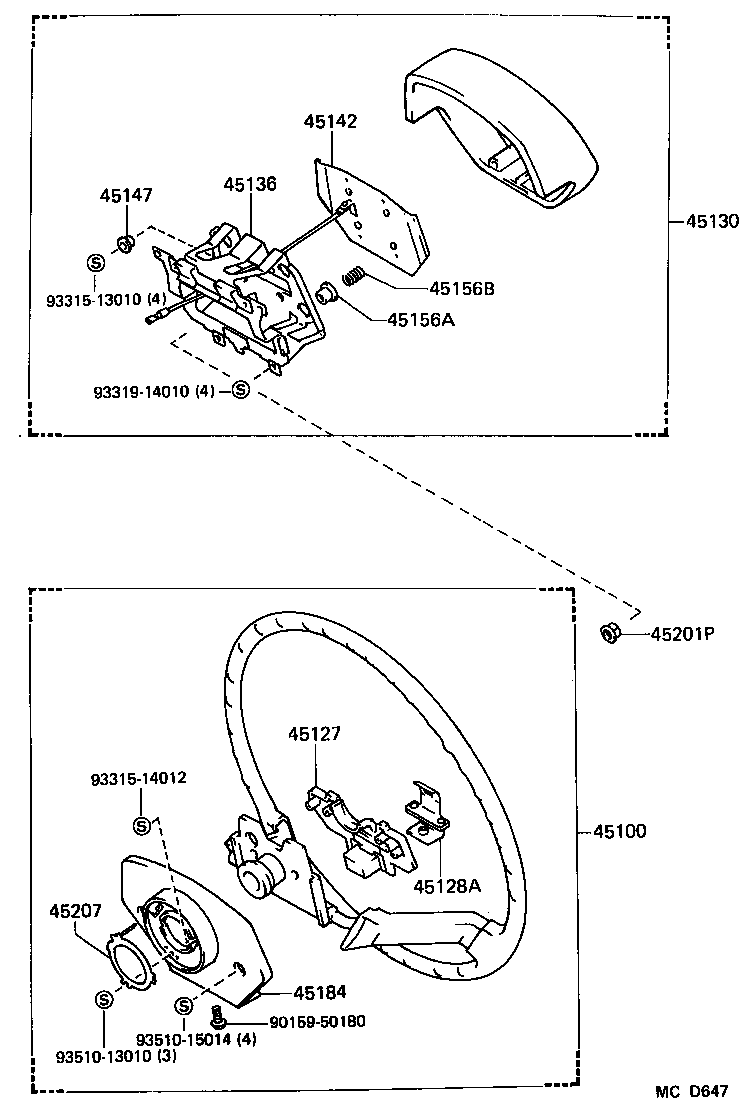

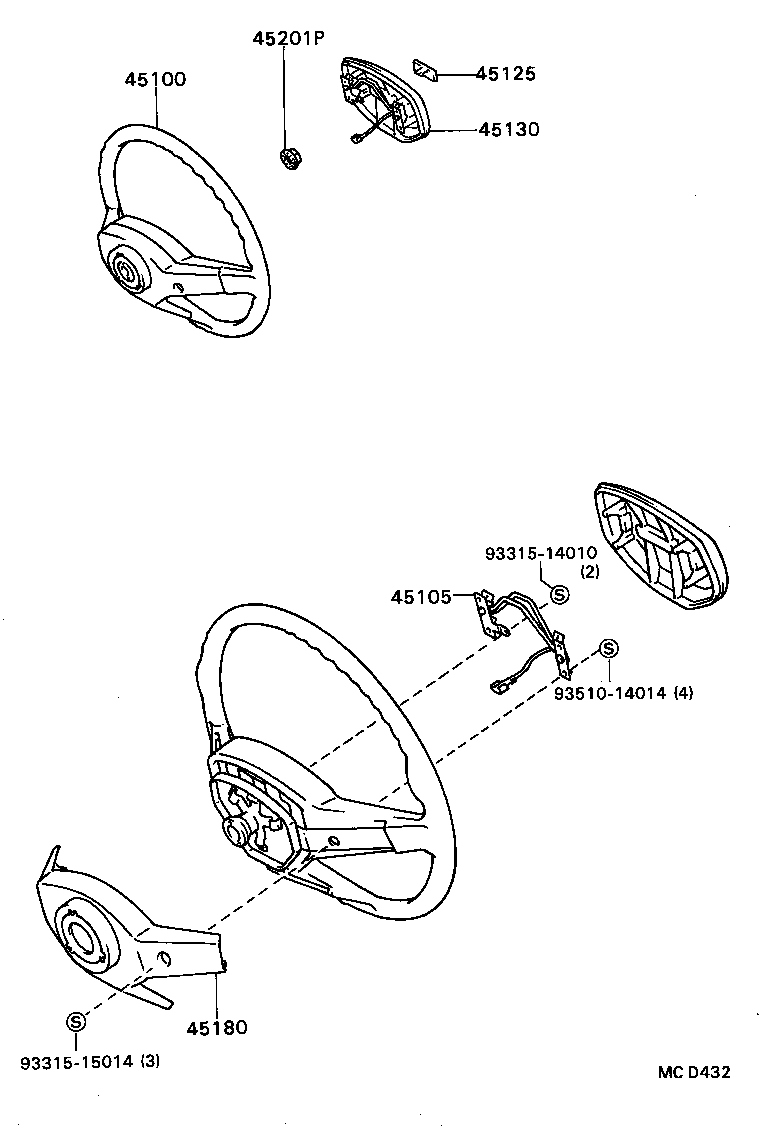

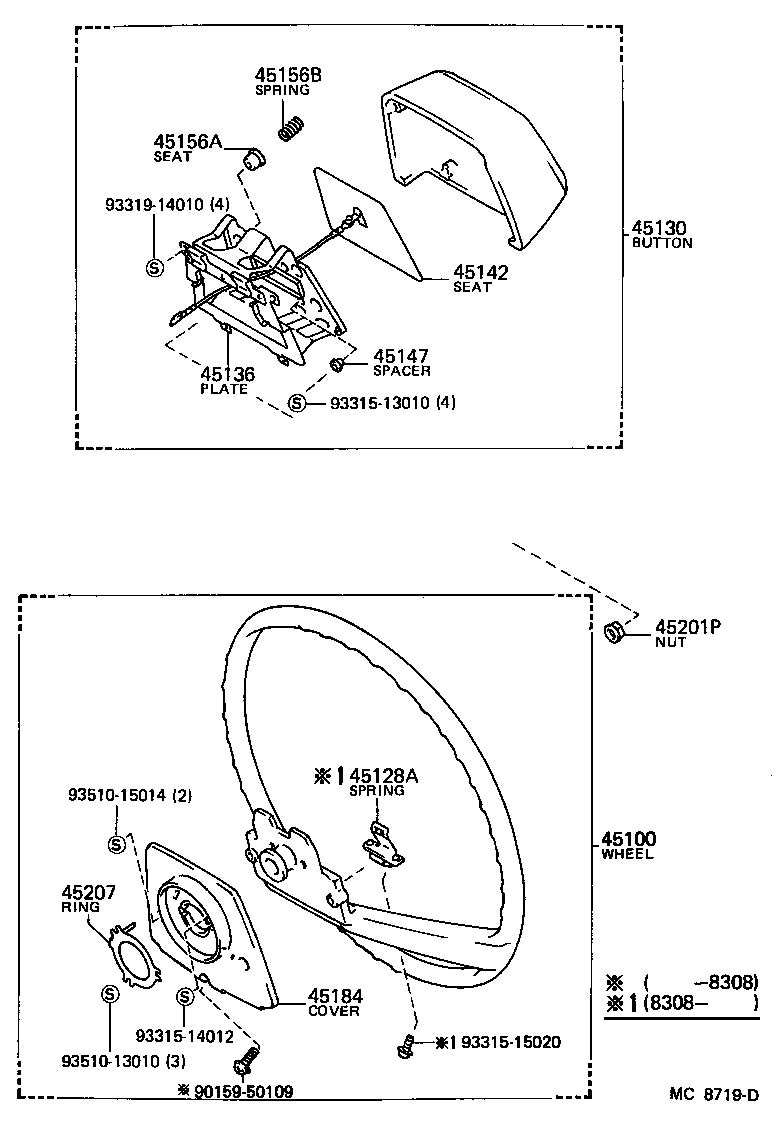

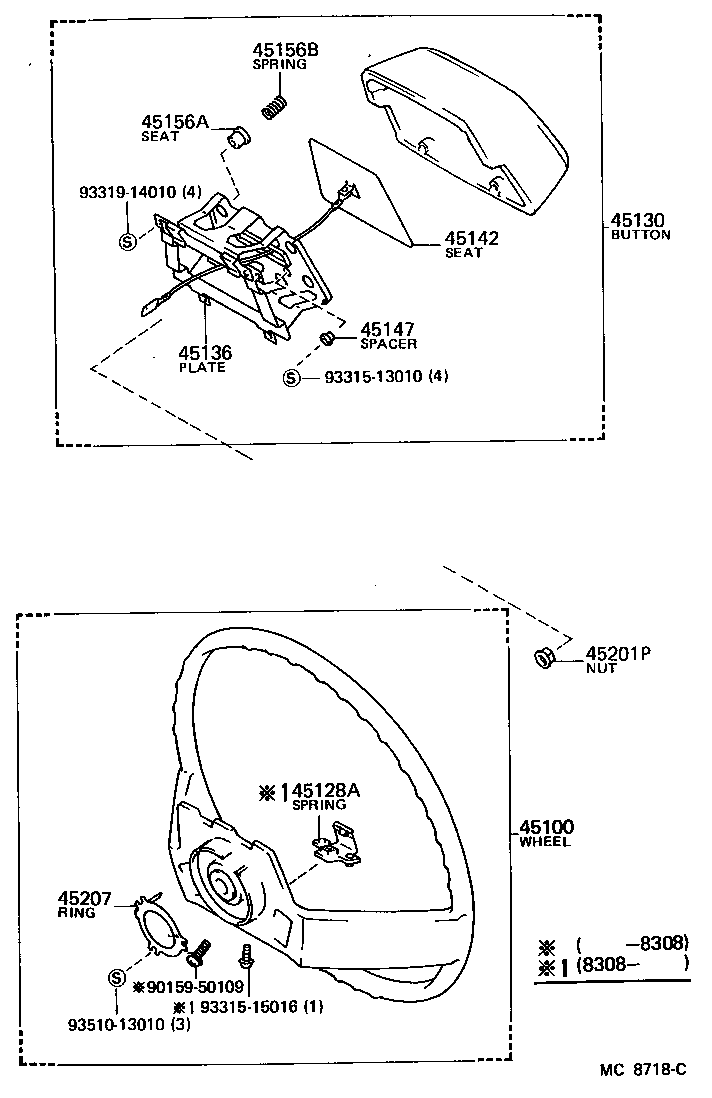

Figure MC8439B MC8439B 1982-08 → 1984-08 Figure MC8440B MC8440B 1982-08 → 1984-08 Figure MCB486A MCB486A 1984-08 → 1986-08 Figure MCB485A MCB485A 1984-08 → 1986-08 Figure MCD431 MCD431 1986-08 → — Figure MCD432 MCD432 1986-08 → — Figure MC8719D MC8719D 1982-08 → 1986-08 Figure MCD647 MCD647 1986-08 → — Figure MC8718C MC8718C 1982-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45127 Insert, Horn Button, Upper NO.1
45128A Spring, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45147 Spacer, Horn Button
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
