Toyota Tercel
1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States
Discontinued model
Data version 1988-03

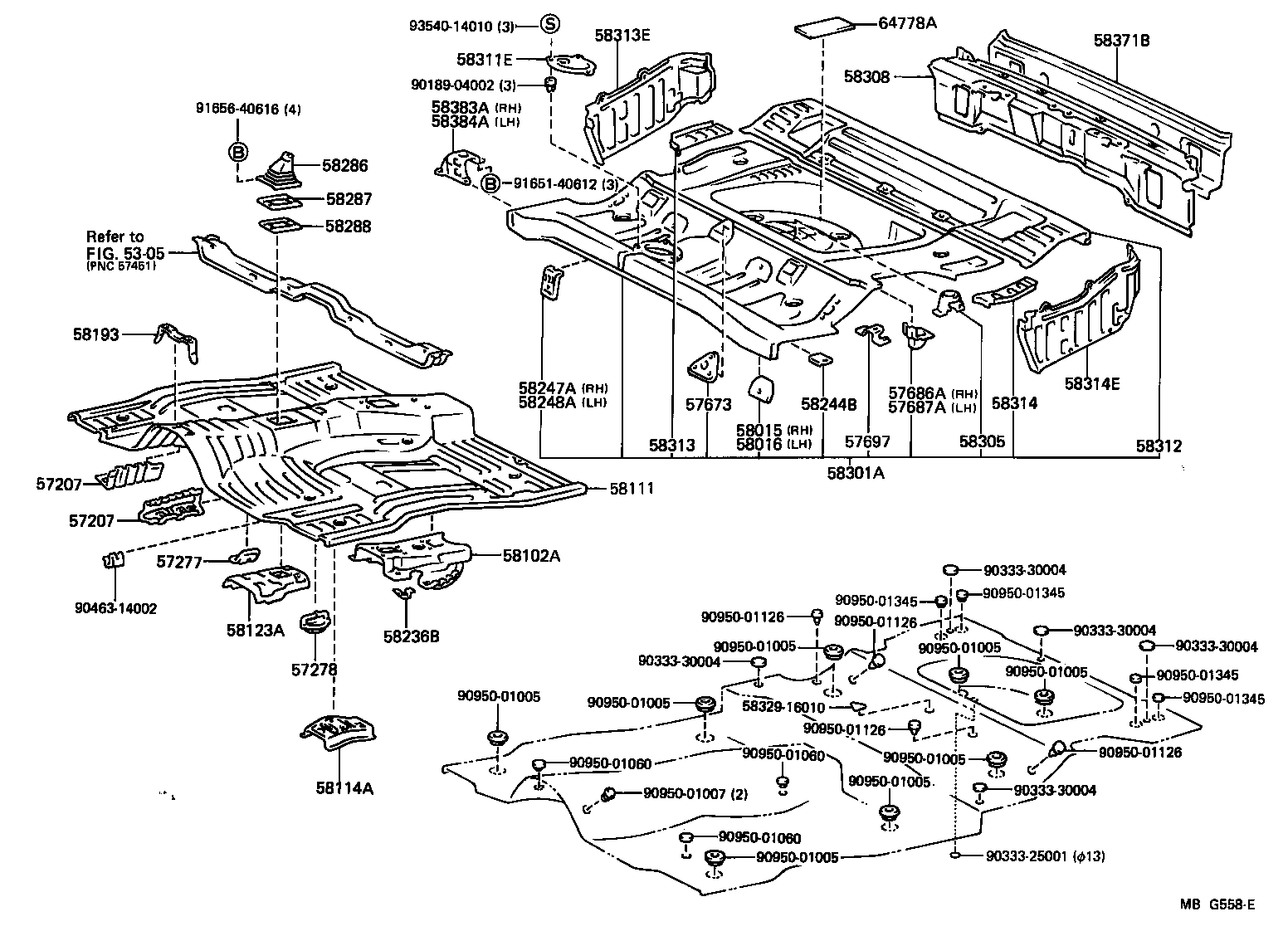

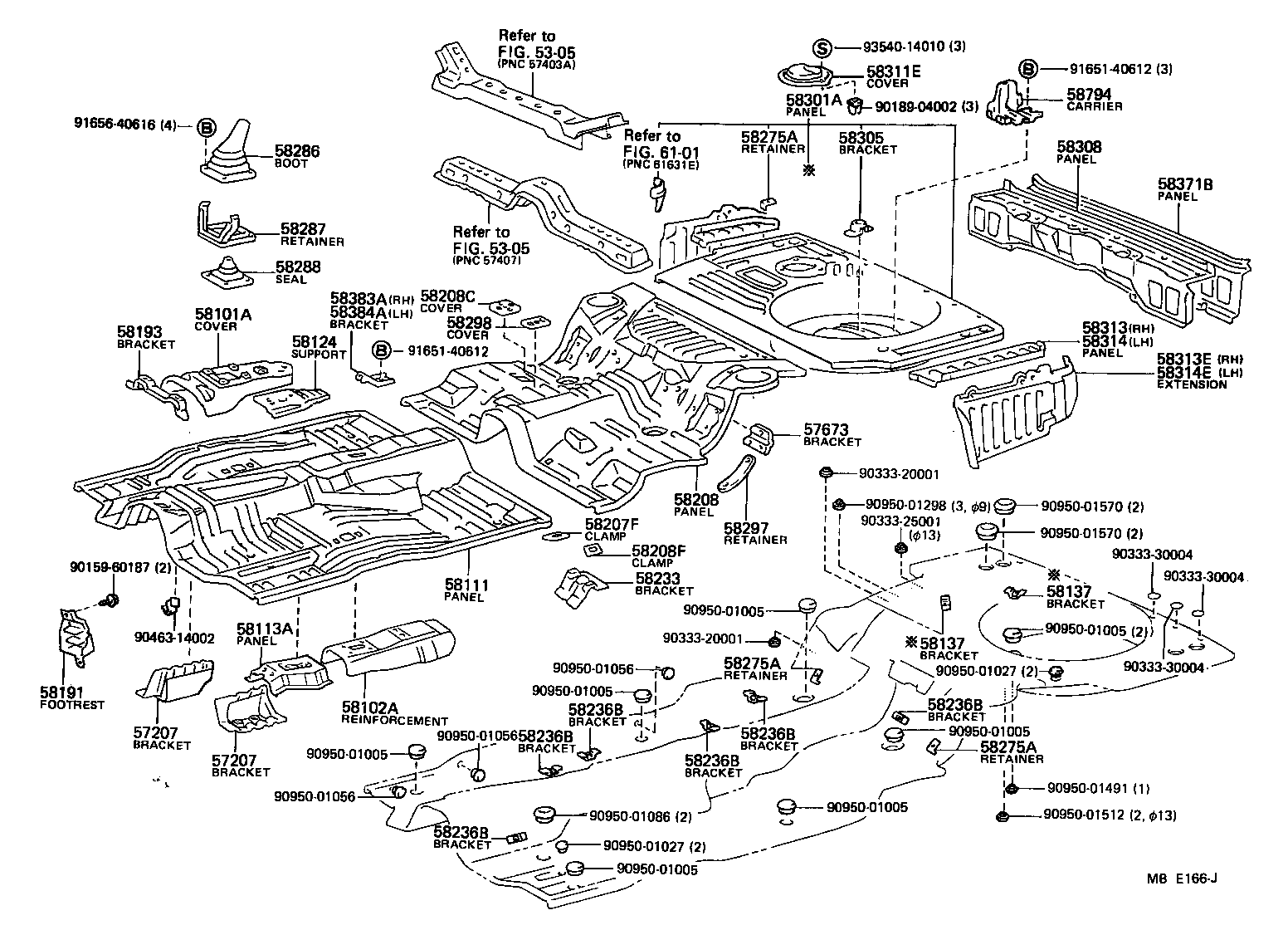

Floor Pan & Lower Back Panel
49 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57207 | Bracket Sub-assy, Engine Rear Mounting Member |
| 57277 | Bracket, Catalytic Converter Support, RH |
| 57278 | Bracket, Catalytic Converter Support, LH |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57686A | Bracket, Fuel Tank Mounting, Rear RH |
| 57687A | Bracket, Fuel Tank Mounting, Rear LH |
| 57697 | Retainer, Rear Seat Cushion |
| 58015 | Reinforcement, Belt Anchor TO Floor Pan, RH |
| 58016 | Reinforcement, Belt Anchor TO Floor Pan, LH |
| 58101A | Cover, Transmission Auxiliary |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58123A | Support, Shift & Select Lever |
| 58124 | Support, Transfer Lever |
| 58137 | Bracket, Center Floor Heat Insulator, NO.4 |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58207F | Clamp Sub-assy, Parking Brake Cable, RH |
| 58208 | Pan, Center Floor |
| 58208C | Cover, Center Floor Hole |
| 58208F | Clamp Sub-assy, Parking Brake Cable, LH |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58236B | Bracket, Center Floor Heat Insulator |
| 58244B | Bracket, Rear Seat Cushion Mounting |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58275A | Retainer, Rear Seatback TO Center Floor |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58287 | Retainer, Shift Lever Boot |
| 58288 | Seal, Shift Lever Boot |
| 58297 | Retainer, Seat Belt Retractor TO Center Floor |
| 58298 | Cover, Center Floor Hole, NO.2 |
| 58301A | Panel Sub-assy, Rear Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311E | Cover, Rear Floor Service Hole |
| 58312 | Panel, Rear Body Floor, NO.1 |
| 58313 | Panel, Rear Floor Side, RH |
| 58313E | Extension, Rear Floor Side Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314E | Extension, Rear Floor Side Panel, LH |
| 58371B | Panel, Body Lower Back, Outer |
| 58383A | Bracket, Rear Seat Support, RH |
| 58384A | Bracket, Rear Seat Support, LH |
| 58794 | Carrier, Jack |
| 64778A | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
