Toyota Tercel
1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States
Discontinued model
Data version 1988-03

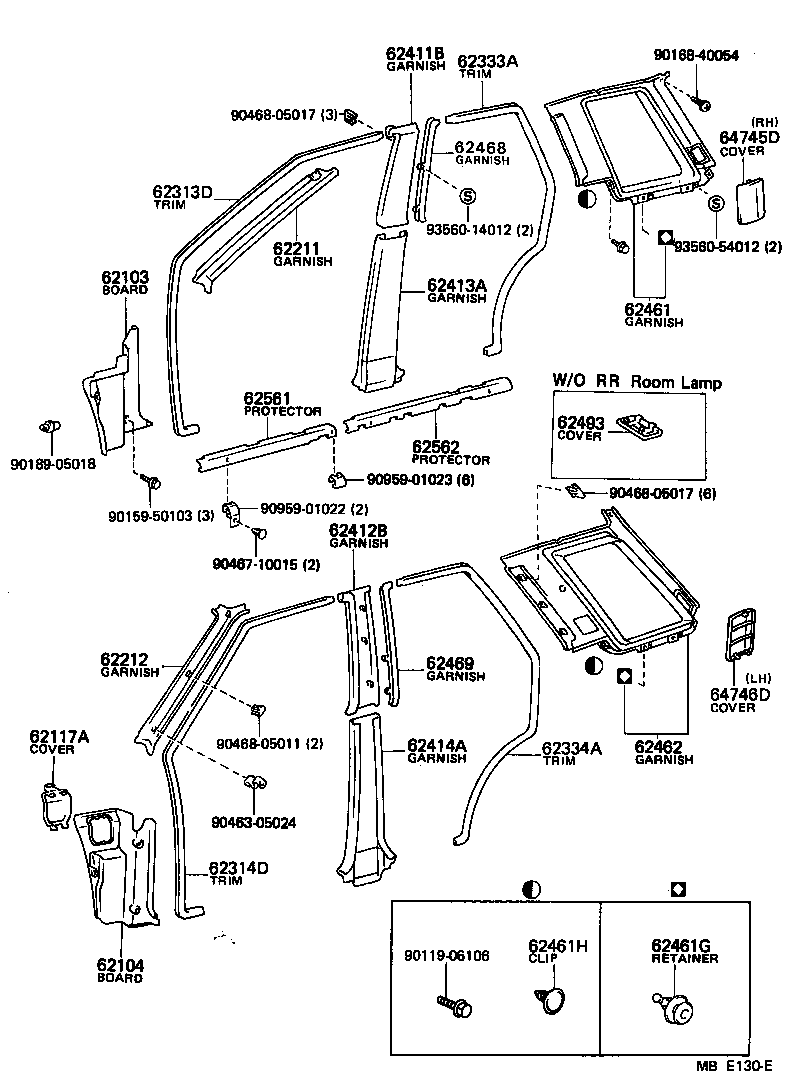

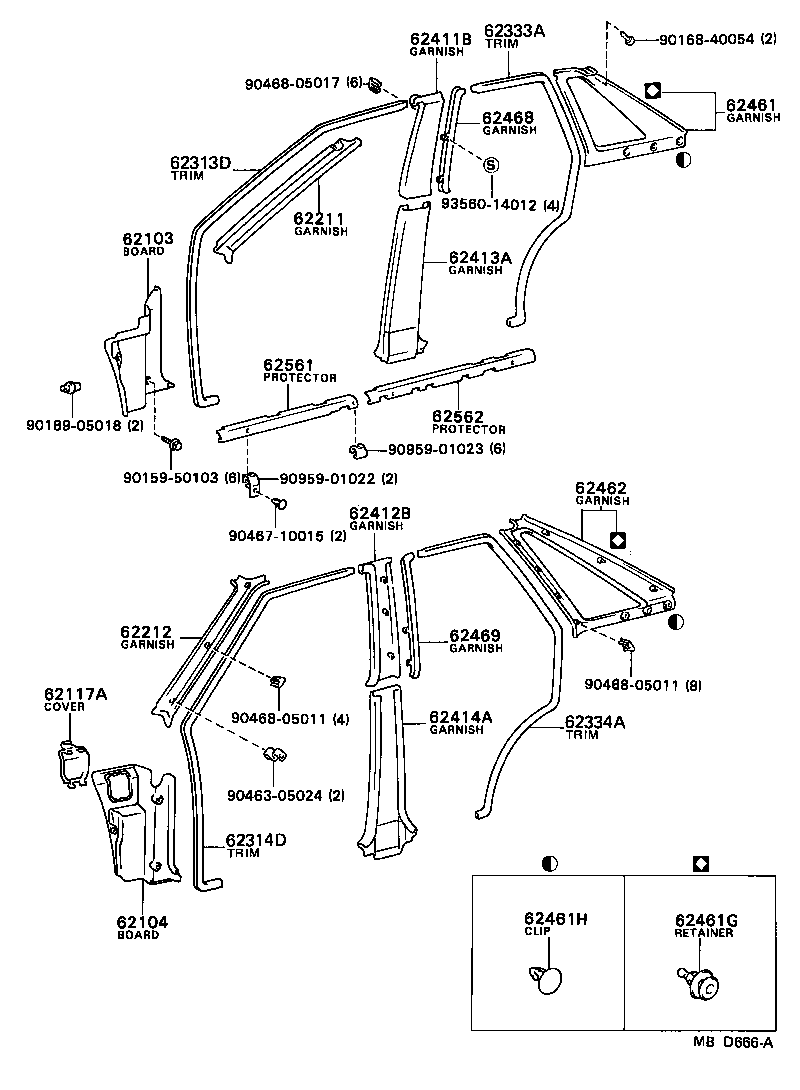

Inside Trim Board & Door Opening Trim Moulding
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62461G | Retainer, Door Trim |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62462 | Garnish, Roof Side Trim, LH |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62493 | Cover, Rear Room Lamp Opening |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511E | Pocket, Quarter Trim |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512S | Base, Quarter Trim, Front |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 64746D | Cover, Rear Combination Lamp Service, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
