Toyota Tercel

1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

8 part groups · 2 illustrations

Illustrations

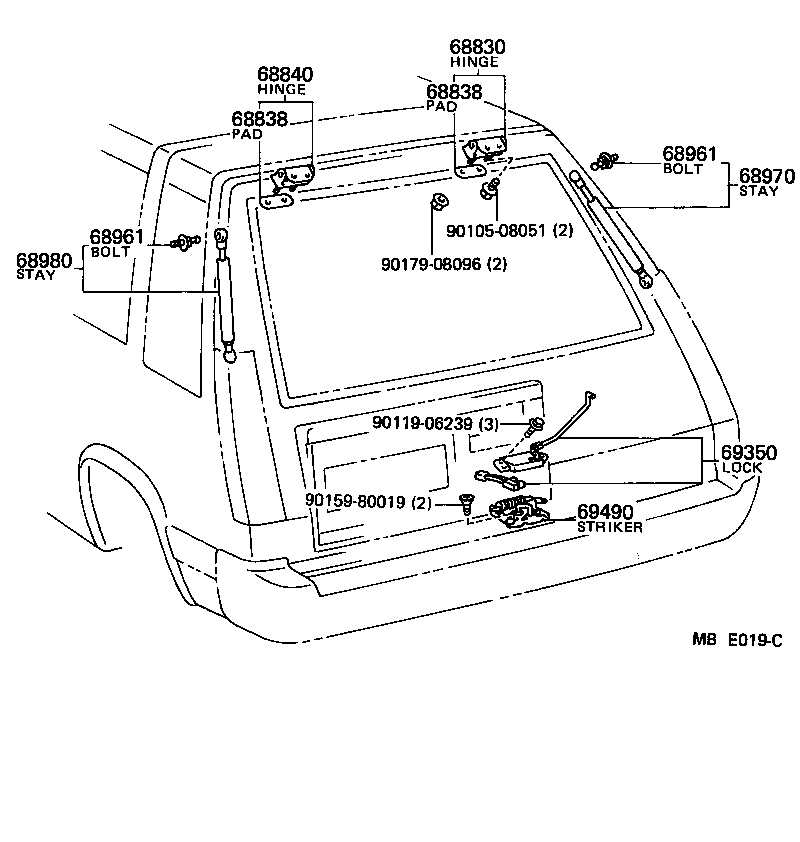

Figure MBD687D MBD687D 1982-08 → 1986-08 Figure MBE019C MBE019C 1982-08 → —

Part groups

PNCDescription
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68961 Bolt, Back Door Stay
68970 Stay Assy, Back Door, RH
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69490 Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
