Toyota Tercel
1982-08 → 1988-01 · chassis AL2# · catalogue 131420 · United States
Discontinued model
Data version 1988-03

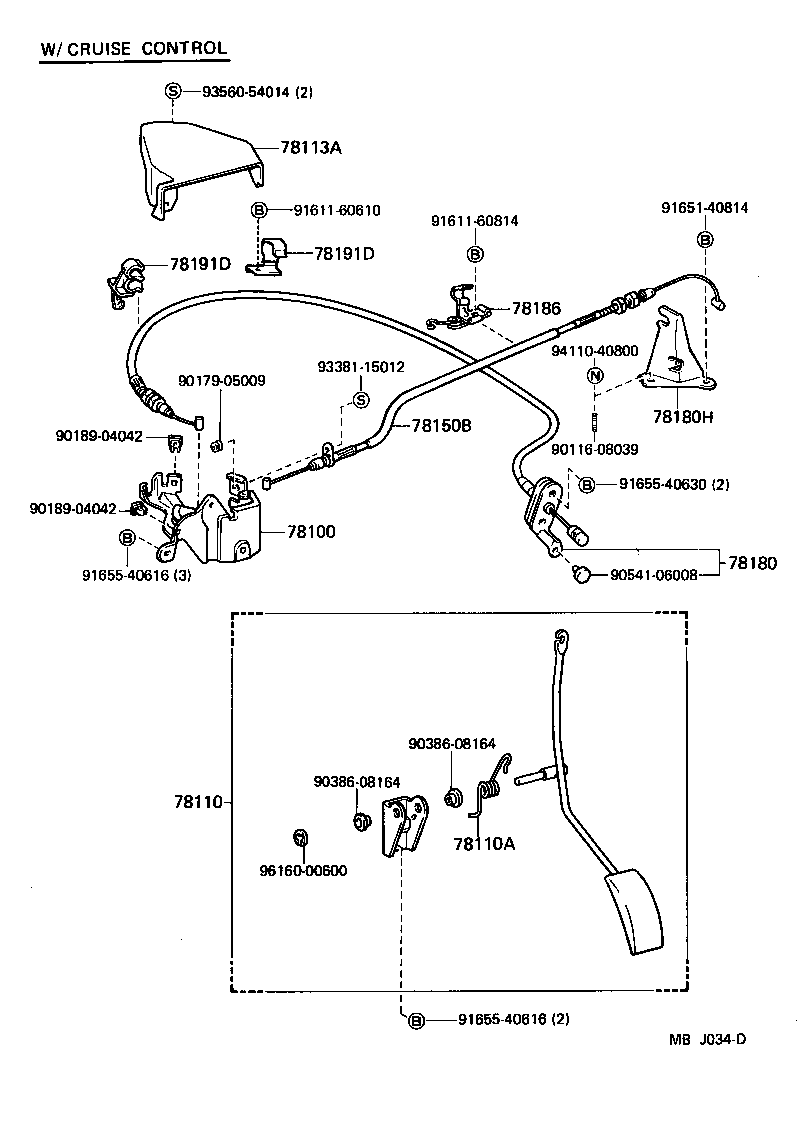

Accelerator Link
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78113A | Cover, Auto Drive Accelerator Link |
| 78150B | Cable Assy, Accelerator Auto Drive |
| 78180 | Wire Assy, Accelerator |
| 78180H | Bracket, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78191D | Clamp, Accelerator Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
