Toyota Tercel
1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · United States
Discontinued model
Data version 1991-03

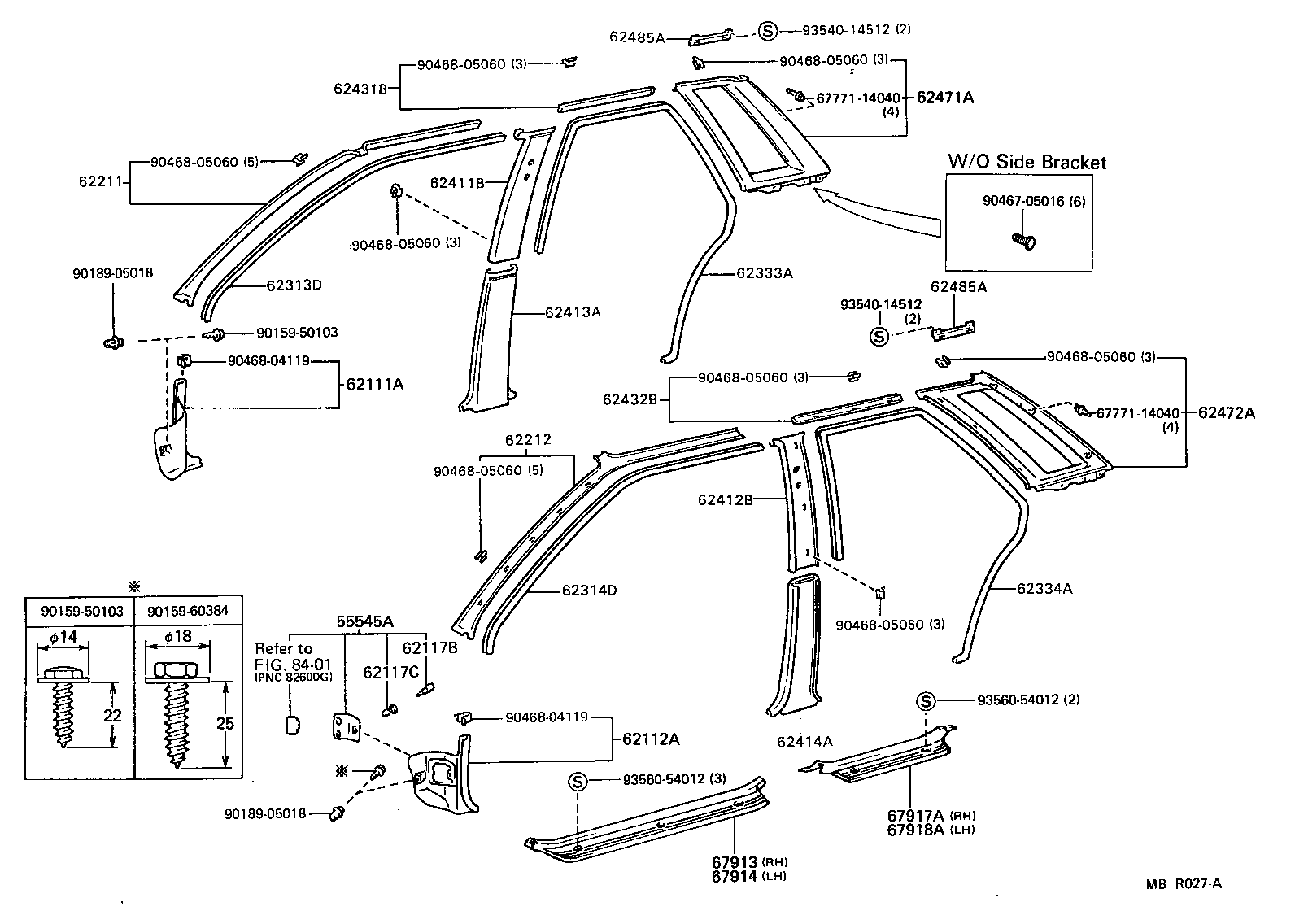

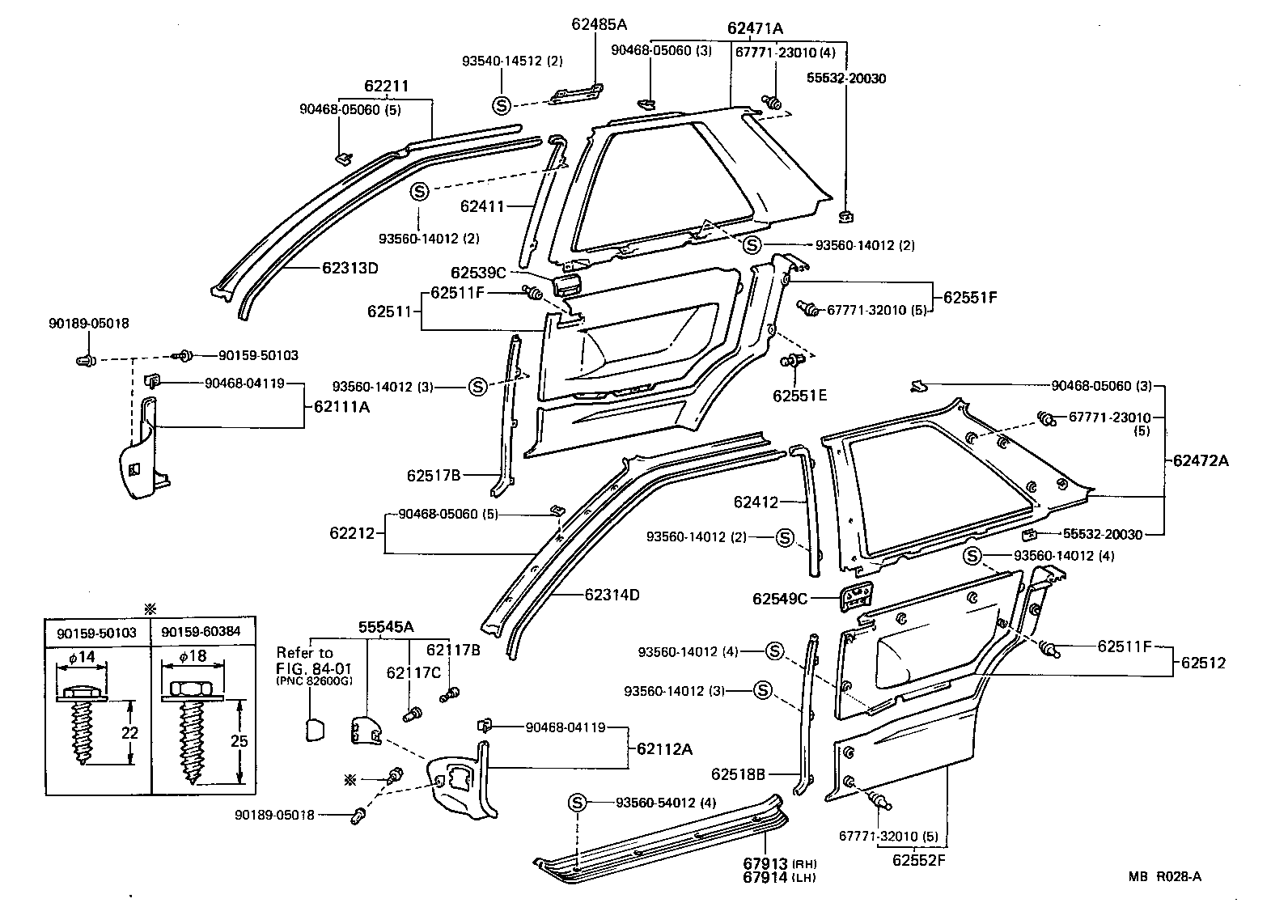

Inside Trim Board & Door Opening Trim Moulding
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55545A | Cover, Fuse Box Opening |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62485A | Retainer, Roof Side Inner Garnish |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62517B | Base, Quarter Trim, Front RH |
| 62518B | Base, Quarter Trim, Front LH |
| 62539C | Cover, Quarter Trim Upper Belt Hole, RH |
| 62549C | Cover, Quarter Trim Upper Belt Hole, LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
