Toyota Tercel
1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · United States
Discontinued model
Data version 1991-03

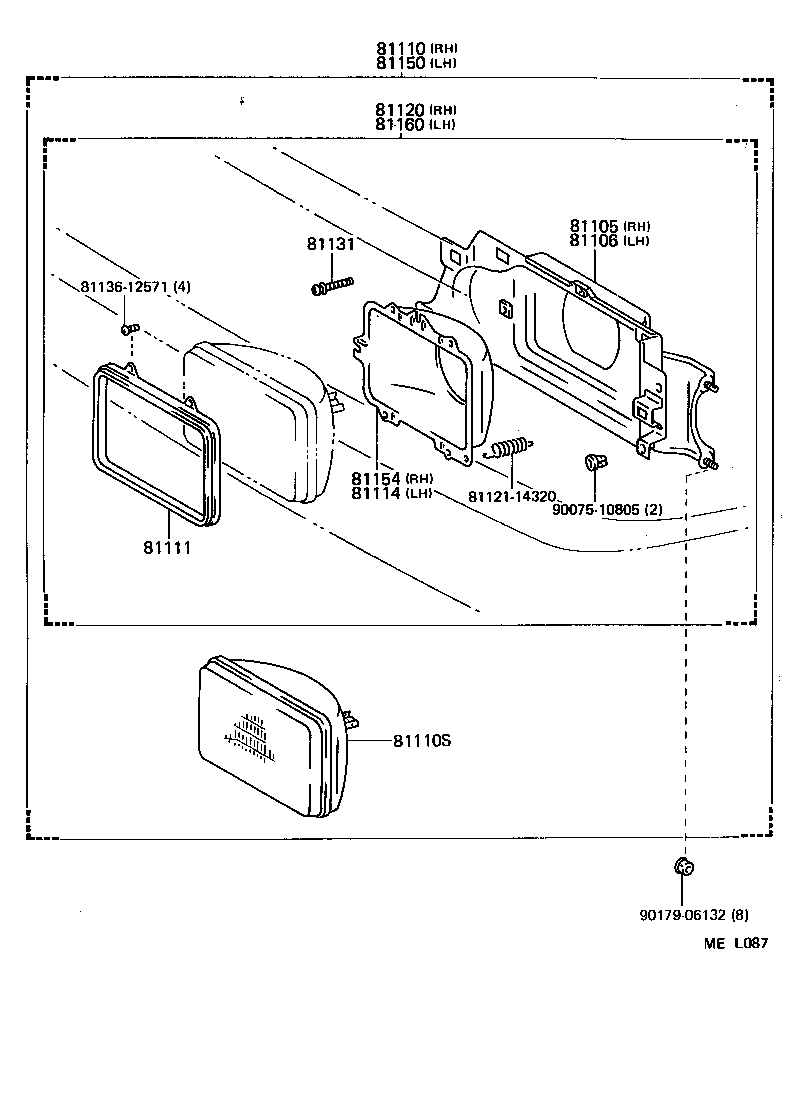

Headlamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81104B | Locking Cap, Headlamp |
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81111 | Ring, Sealed Beam Retaining |
| 81114 | Ring, Sealed Beam Mounting, NO.2 RH |
| 81120 | Headlamp Sub-assy, RH |
| 81128 | Nut, Headlamp |
| 81131 | Screw, Headlamp Adjusting |
| 81135 | Unit Assy, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81153B | Bearing, Headlamp |
| 81154 | Ring, Sealed Beam Mounting, NO.2 LH |
| 81160 | Headlamp Sub-assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
