Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · United States

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

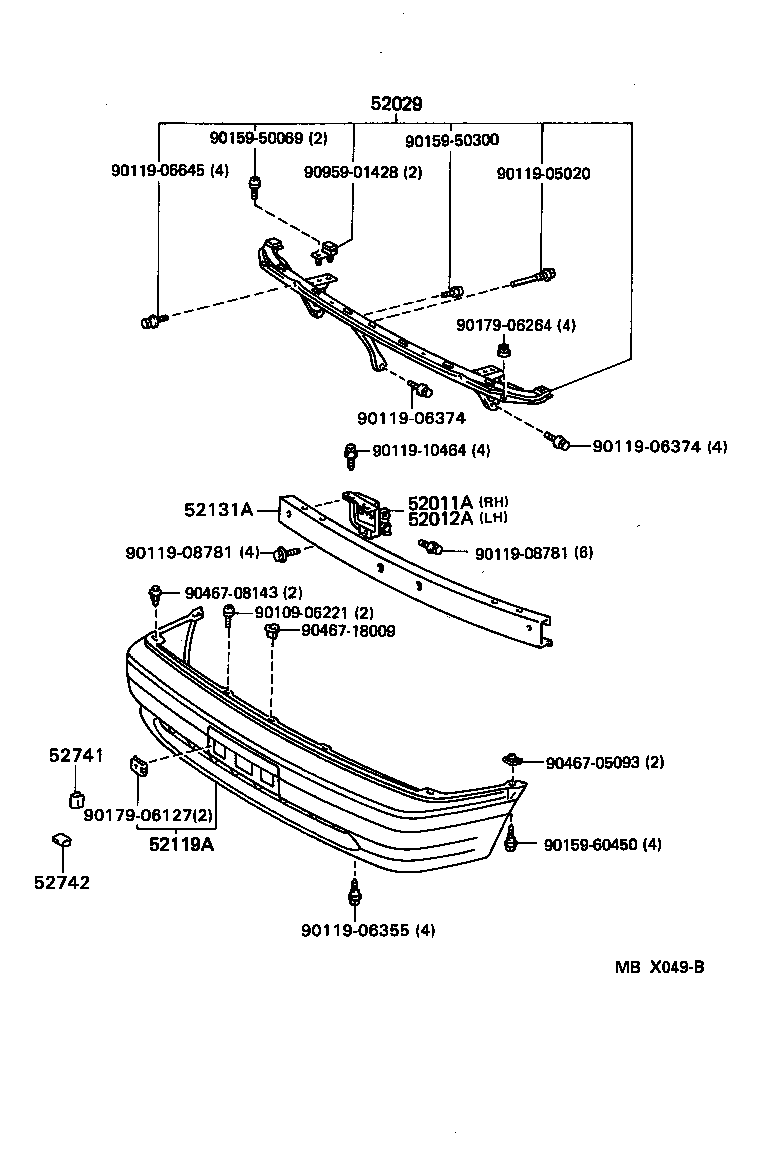

Figure MBU920D MBU920D 1990-09 → 1992-08 Figure MBX049B MBX049B 1992-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52741 Garnish, Front Bumper Bar, NO.1
52742 Garnish, Front Bumper Bar, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
