Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · United States

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

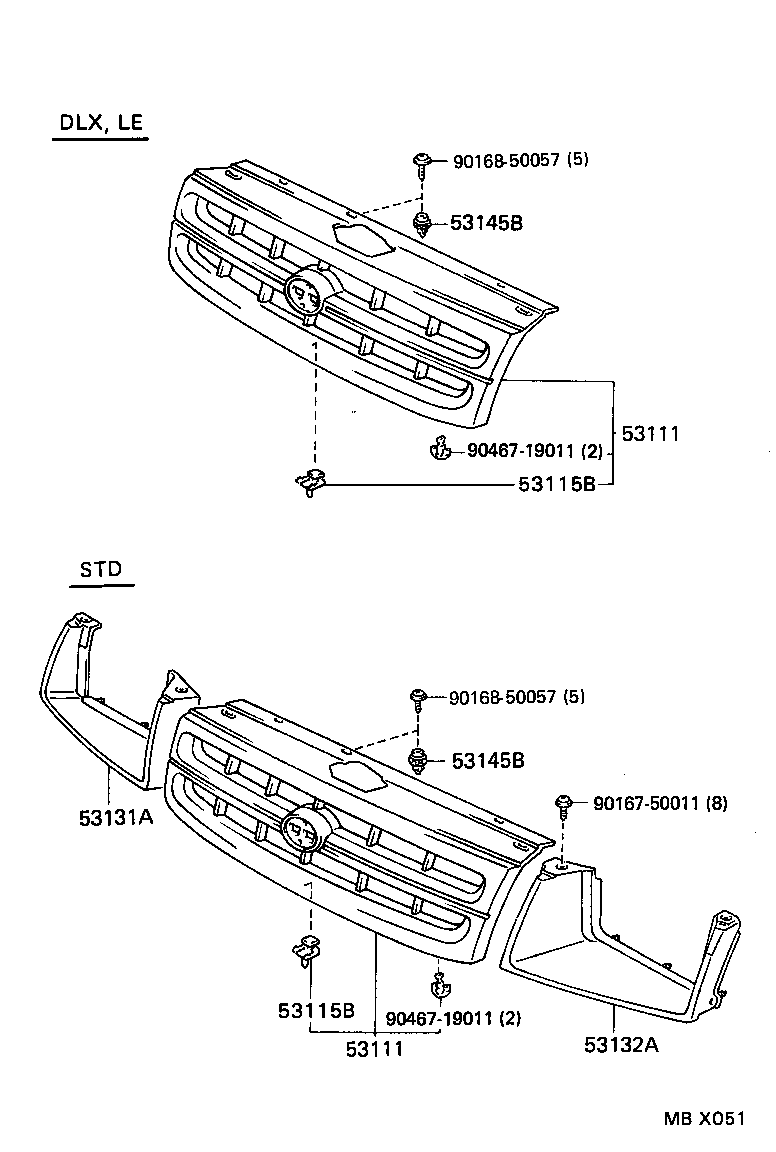

Figure MBU930A MBU930A 1990-09 → 1992-08 Figure MBX051 MBX051 1992-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53145B Clip, Radiator Grille Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
