Toyota Tercel
1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · United States
Discontinued model
Data version 1995-02
Inside Trim Board & Door Opening Trim Moulding

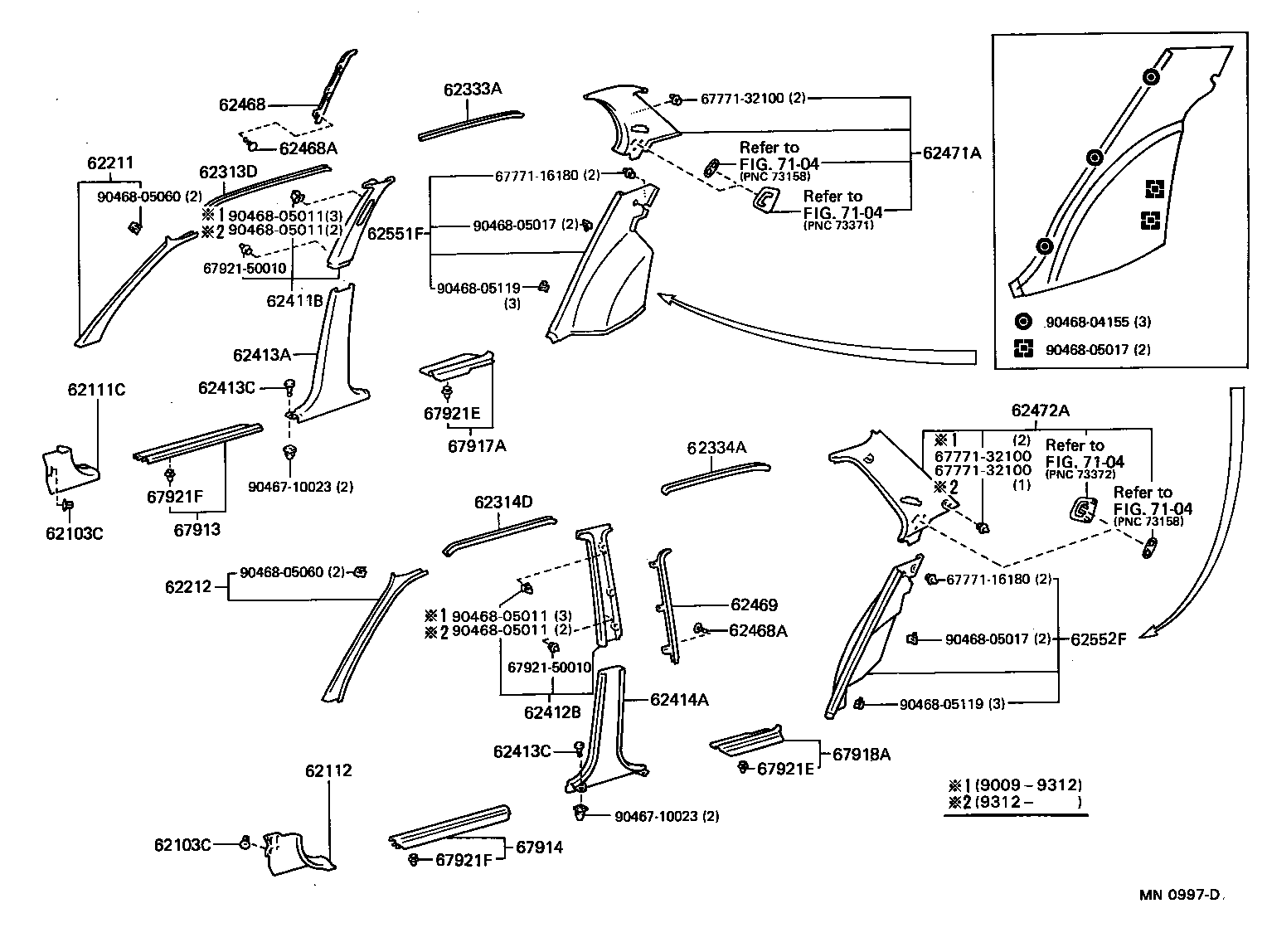

33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103C | Clip, Cowl Side Trim Board Set |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62468A | Clip (FOR CENTER PILLAR REAR GARNISH) |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62533A | Bracket, Quarter Trim Clamp |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
