Toyota Echo
1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States
Discontinued model
Data version 2006-05

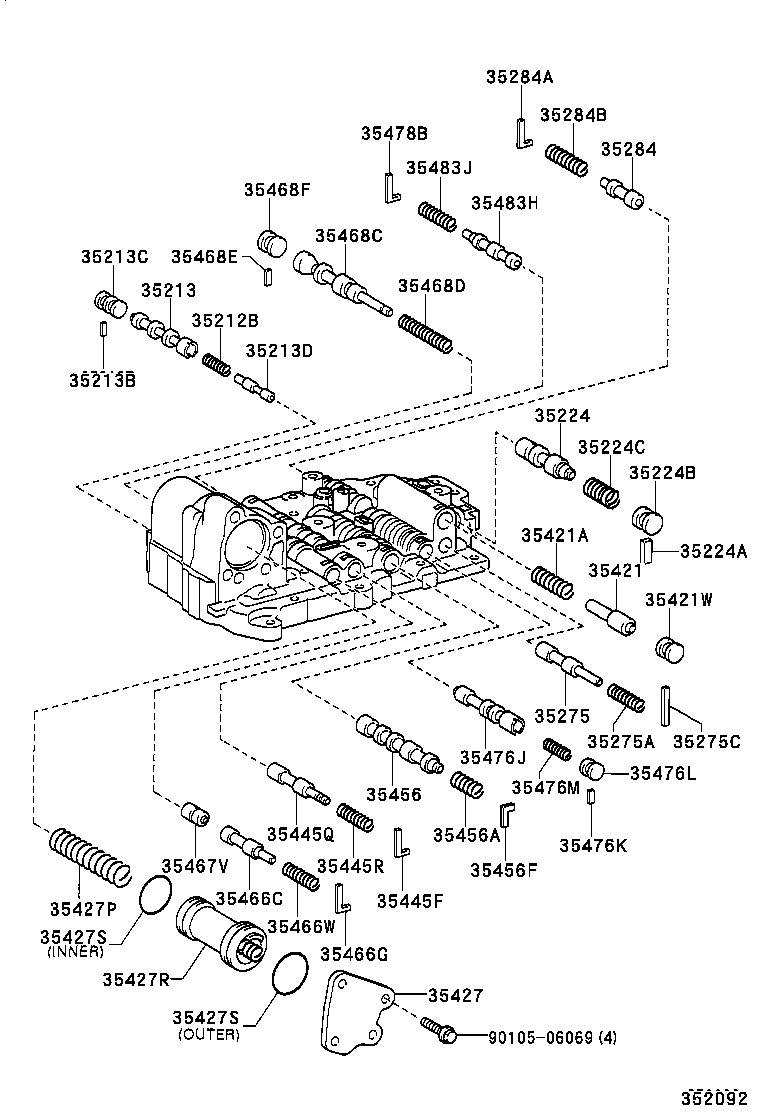

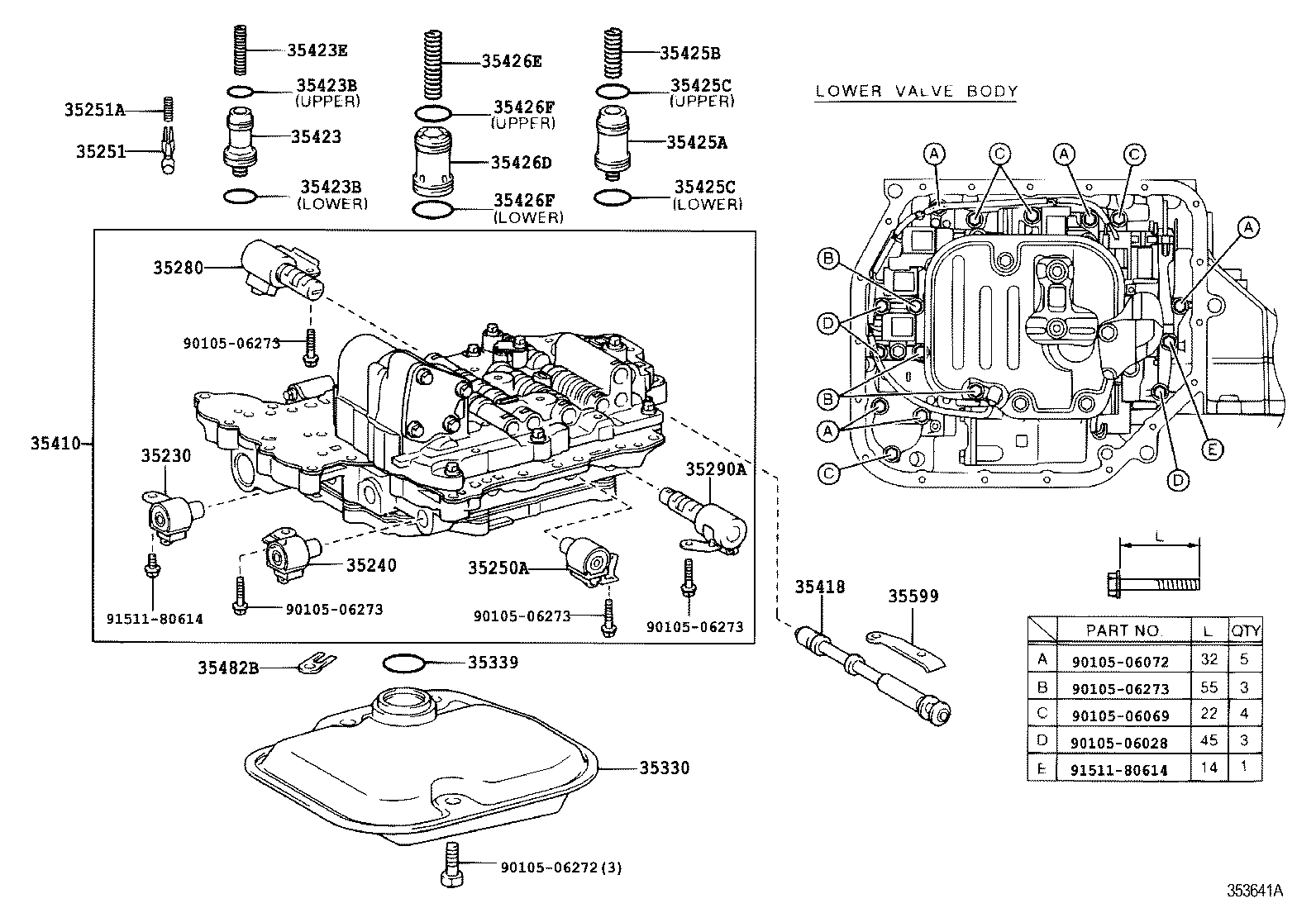

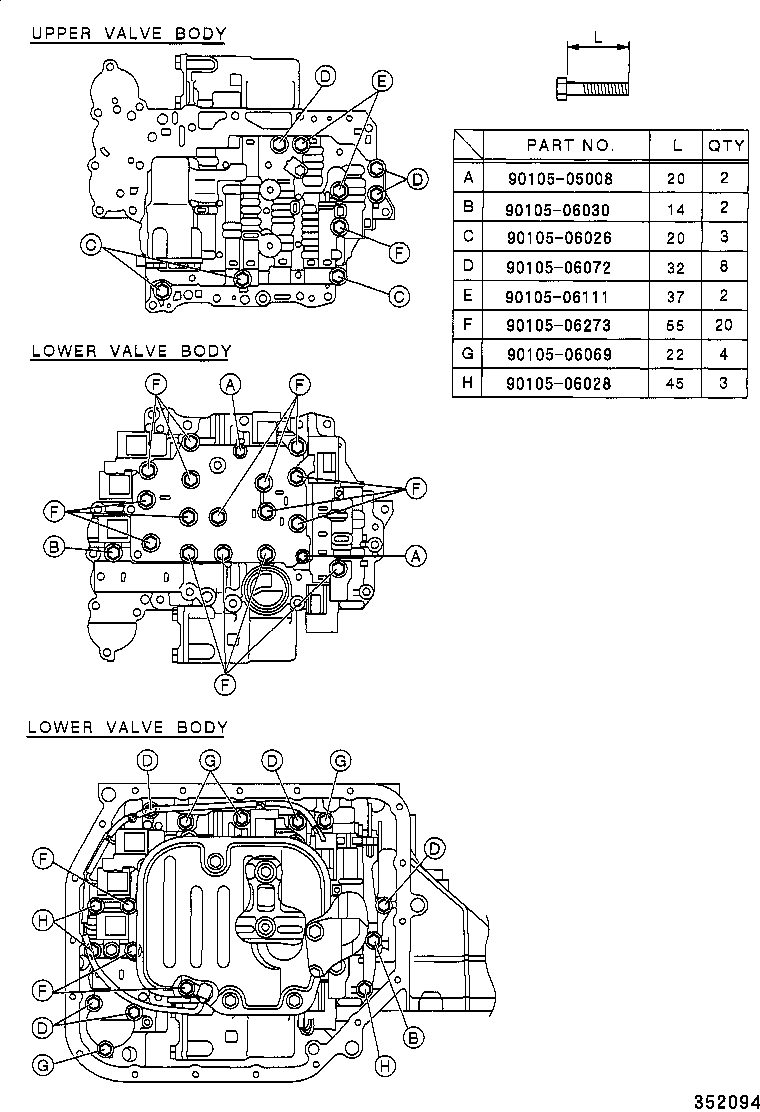

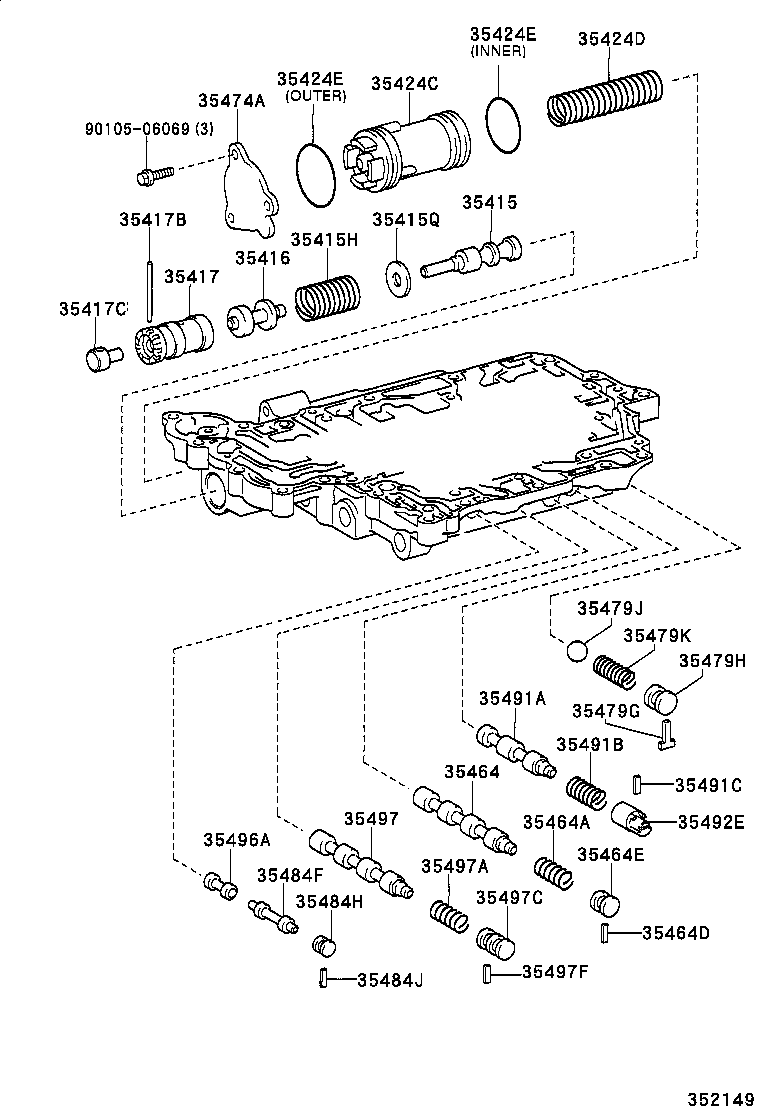

Valve Body & Oil Strainer (ATM)
108 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213 | Valve, Lock UP Relay Control |
| 35213B | Key, Straight (FOR LOCK UP CONTROL VALVE) |
| 35213C | Plug (FOR LOCK UP CONTROL VALVE) |
| 35213D | Plunger, Lock UP Relay Valve |
| 35224 | Valve, Reverse Control |
| 35224A | Key, Straight (FOR REVERSE CONTROL VALVE) |
| 35224B | Plug (FOR REVERSE CONTROL VALVE) |
| 35224C | Spring, Compression (FOR REVERSE CONTROL VALVE) |
| 35230 | Solenoid Assy, Transmission 3Way, NO.2 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35250A | Solenoid Assy, Transmission, NO.3 |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35275 | Valve, Solenoid Modulator |
| 35275A | Spring, Compression (FOR SOLENOID MODULATOR VALVE) |
| 35275C | Key, Straight |
| 35280 | Solenoid Assy, Lock UP Control |
| 35284 | Valve, Solenoid Relay |
| 35284A | Key, Straight (FOR SOLENOID RELAY VALVE) |
| 35284B | Spring, Compression (FOR SOLENOID RELAY VALVE) |
| 35290A | Solenoid Assy, Line Pressure Control |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35410 | Body Assy, Transmission Valve |
| 35415 | Valve, Pressure Regulator |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415Q | Spacer (FOR PRIMARY REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417 | Sleeve, Pressure Regulator Valve |
| 35417B | Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE) |
| 35417C | Plug(FOR PRIMARY REGULATOR VALVE) |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420F | Ball, Check, NO.1 |
| 35420H | Cover, Check Ball |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421W | Plug, C-1 Accumulator Valve |
| 35423 | Piston, B-2 Accumulator |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35423E | Spring, Compression (FOR B-2 ACCMULATOR PISTON) |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427 | Cover, Accumulator |
| 35427P | Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON) |
| 35427R | Piston B-1 Accumulator |
| 35427S | Ring, O(FOR B-1 ACCUMULATOR PISTON) |
| 35432 | Plate, Valve Body, NO.1 |
| 35438G | Plate, Valve Body, NO.2 |
| 35441C | Strainer, Solenoid Oil |
| 35442A | Strainer, Solenoid Oil, NO.2 |
| 35445F | Key, Straight (FOR LOW MODULATOR VALVE) |
| 35445Q | Valve, Low Coast Modulator |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35450E | Ball (FOR UPPER VALVE BODY) |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464D | Key, Straight (FOR 1-2 SHIFT VALVE) |
| 35464E | Plug (FOR 1-2 SHIFT VALVE) |
| 35466C | Valve, 3-4 Shift Timing |
| 35466G | Key, Straight (FOR 2ND LOCK VALVE) |
| 35466W | Spring, Compression(FOR 3-4 SHIFT TIMING VALVE) |
| 35467V | Plunger, 3-4 Shift Timing Valve |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35468F | Plug (FOR SECONDARY REGULATOR VALVE) |
| 35472A | Cover, Lower Valve Body |
| 35474A | Cover, Accumulator |
| 35476J | Valve, Coast Relay |
| 35476K | Key, Straight(FOR COAST RELAY VALVE) |
| 35476L | Plug(FOR COAST RELAY VALVE) |
| 35476M | Spring, Compression(FOR COAST RELAY VALVE) |
| 35477 | Gasket, Valve Body Cover |
| 35478B | Key, Valve Spring, NO.2 |
| 35479G | Key, Valve Spring, NO.1 |
| 35479H | Plug(FOR VALVE SPRING KEY) |
| 35479J | Ball(FOR VALVE SPRING KEY) |
| 35479K | Spring, Compression(FOR VALVE SPRING KEY) |
| 35482B | Clamp, Temperature Sensor |
| 35483H | Valve, 4-3 Shift Timing, NO.1 |
| 35483J | Spring, Compression(FOR 4-3 SHIFT TIMING VALVE) |
| 35484F | Valve, 4-3 Shift Timing, NO.2 |
| 35484H | Plug(FOR 4-3 SHIFT TIMING VALVE) |
| 35484J | Key, Straight(FOR 4-3 SHIFT VALVE) |
| 35488C | Gasket, Valve Body Cover, NO.2 |
| 35491A | Valve, Accumulator Control, NO.1 |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491C | Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35492E | Sleeve, Accumulator Control Valve |
| 35496A | Plunger, 4-3 Shift Timing Valve, NO.2 |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35497F | Key, Straight (FOR 3-4 SHIFT VALVE) |
| 35599 | Cover, Manual Detent Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
