Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

10 part groups · 2 illustrations

Illustrations

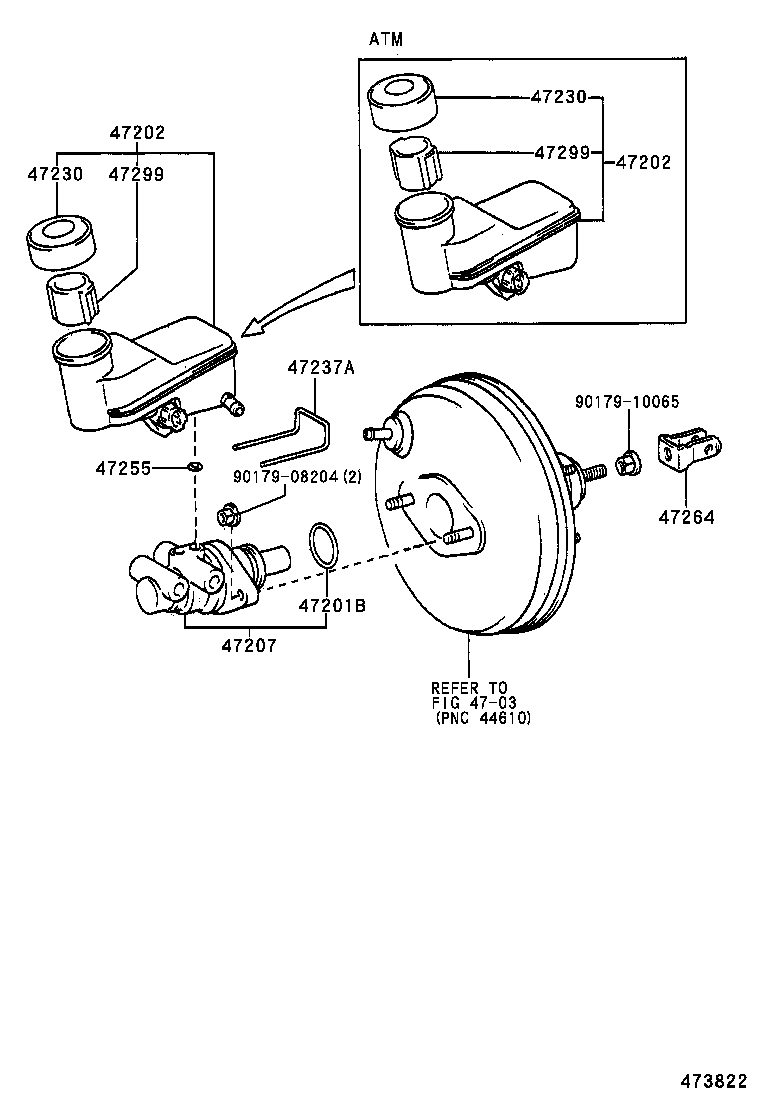

Figure 471689B 471689B 1999-08 → 2003-09 Figure 473822 473822 2003-09 → —

Part groups

PNCDescription
44604F Seal, Brake Booster Body
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47207 Cylinder Sub-assy, Brake Master Less Reservoir Tank
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47237A Stopper, Breke Master Cylinder Reservoir Tank
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
