Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

24 part groups · 2 illustrations

Illustrations

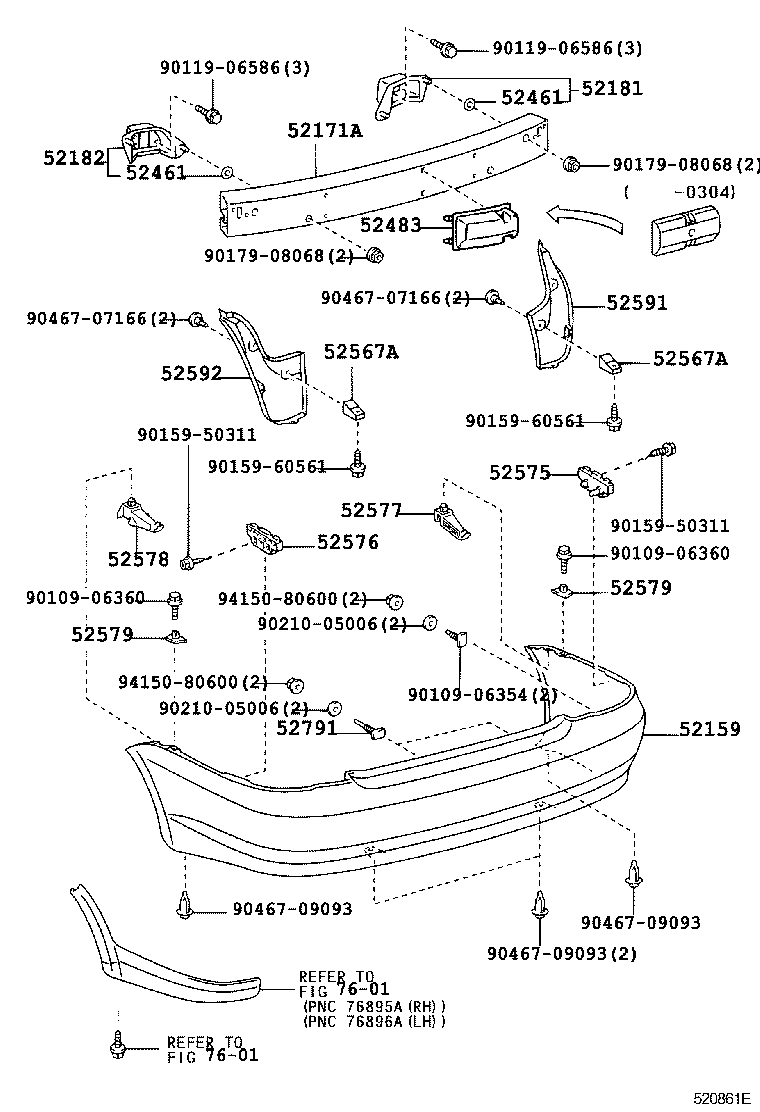

Figure 520538E 520538E 1999-08 → 2002-08 Figure 520861E 520861E 2002-08 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52169C Cover, Rear Bumper, Lower
52171A Reinforcement, Rear Bumper, NO.1
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52185B Bracket, Rear Bumper Side Mounting, RH
52186B Bracket, Rear Bumper Side Mounting, LH
52188B Spacer, Rear Bumper Mounting
52197A Bracket, Rear Bumper Seal, RH
52197B Bracket, Rear Bumper Seal, LH
52461 Pad, Rear Bumper, Center
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52483 Bracket, Rear Bumper Shield, Center
52567A Retainer, Rear Bumper, Lower Side
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52579 Retainer, Rear Bumper Side, NO.3
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
52791A Bolt, Bumper Moulding Set, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
