Toyota Echo
1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States
Discontinued model
Data version 2006-05
Hood & Front Fender
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827B | Protector, Front Fender Side Panel |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53831A | Panel, Front Fender Side, Upper RH |
| 53832A | Panel, Front Fender Side, Upper LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

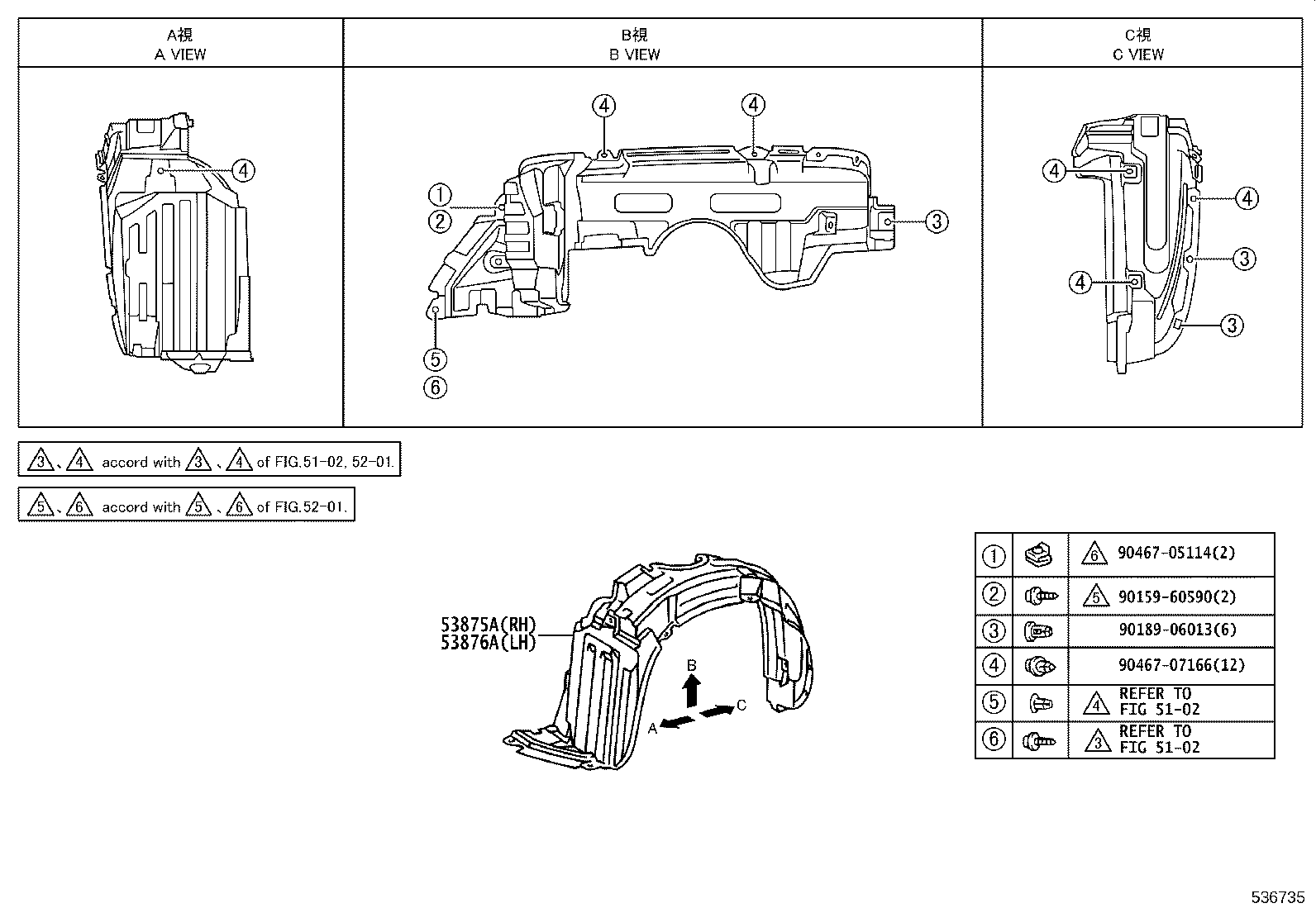

| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53882F | Seal, Front Fender |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
