Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

20 part groups · 2 illustrations

Illustrations

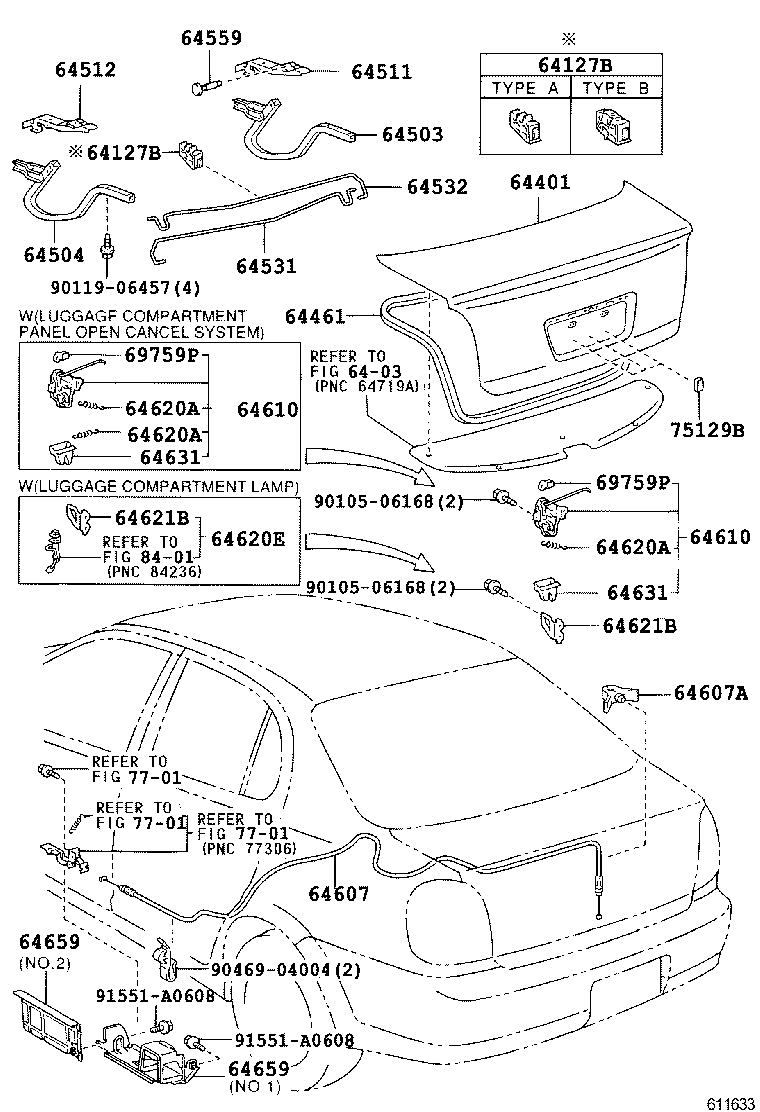

Figure 611036E 611036E 1999-08 → 2002-08 Figure 611633C 611633C 2002-08 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64607 Cable Sub-assy, Luggage Door Lock Control
64607A Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610 Lock Assy, Luggage Compartment Door
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64620E Striker Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
64631 Protector, Luggage Door Lock
64659 Bracket, Luggage Control Cable, LH
69759P Snap, Door Lock Control Link
75129B Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
