Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

34 part groups · 3 illustrations

Illustrations

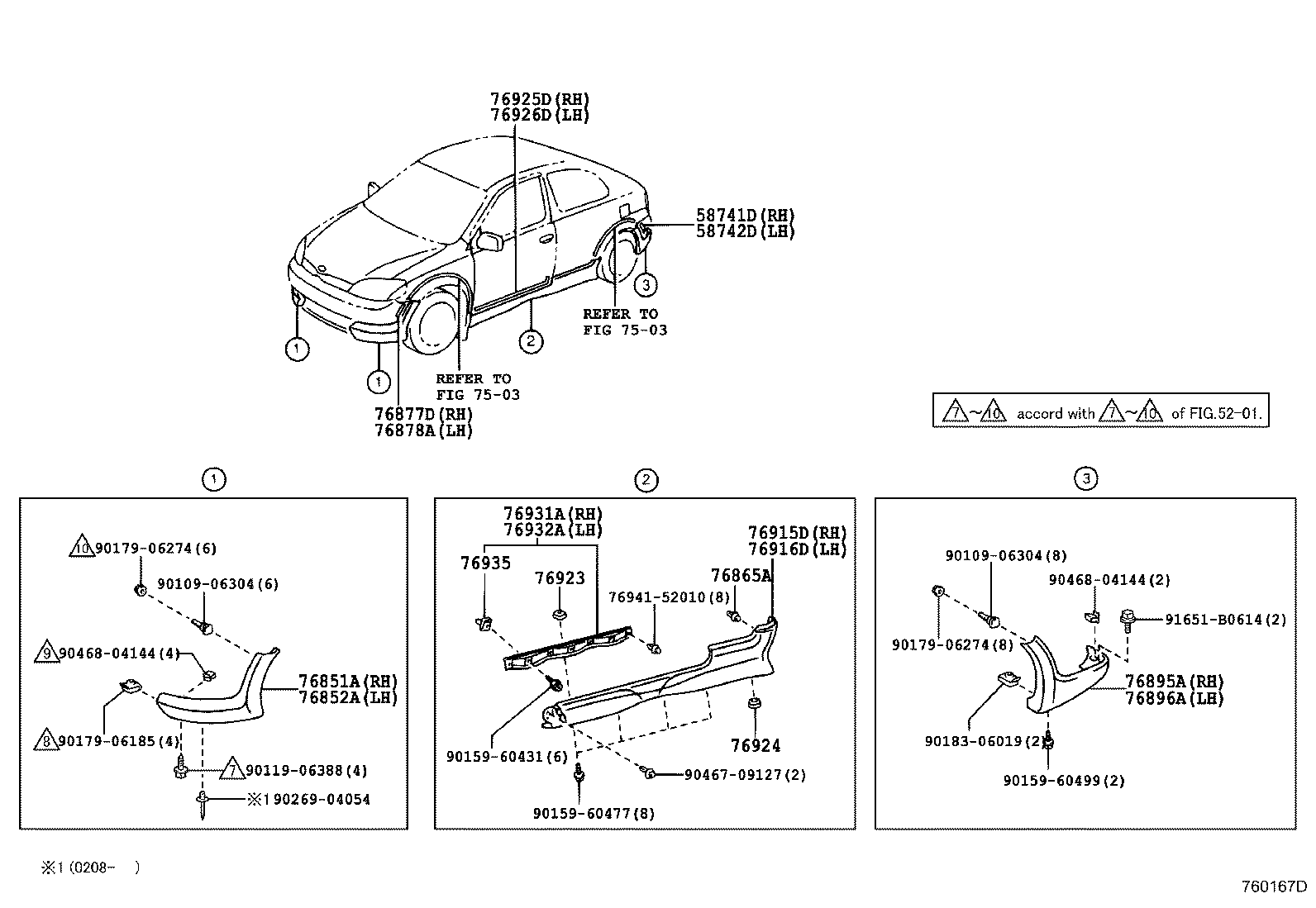

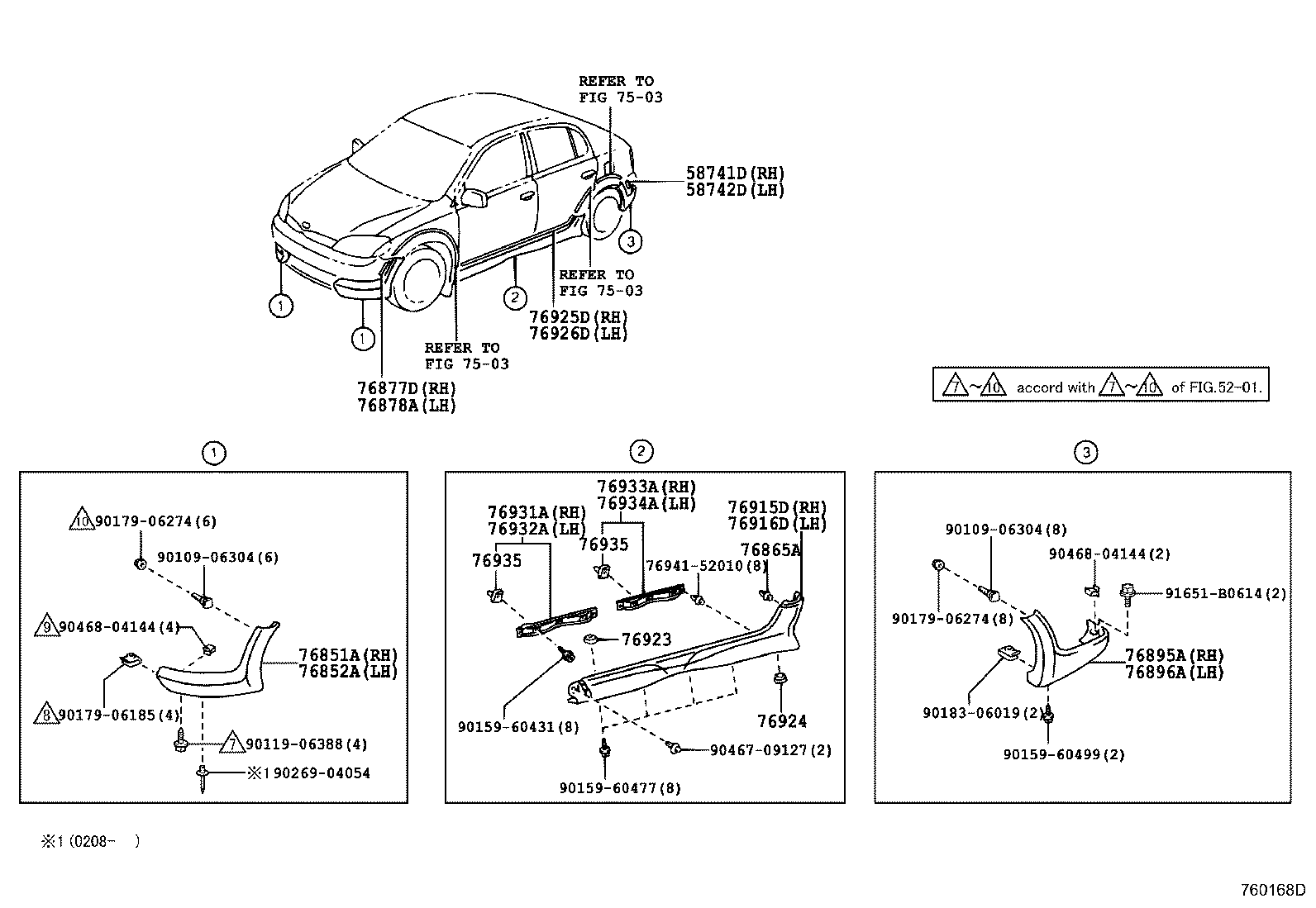

Figure 760166C 760166C 1999-08 → — Figure 760167D 760167D 1999-08 → — Figure 760168D 760168D 1999-08 → —

Part groups

PNCDescription
58741D Protector, Rear Wheel Extension, RH
58742D Protector, Rear Wheel Extension, LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76865A Retainer, Side Mudguard
76867 Retainer, Rear Spoiler Side, RH
76868 Retainer, Rear Spoiler Side, LH
76871 Spoiler, Rear
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76889D Clip, Rear Spoiler, NO.2
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76895A Spoiler, Rear Bumper, RH
76896A Spoiler, Rear Bumper, LH
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76915D Mudguard, Side, Front RH
76916D Mudguard, Side, Front LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76931A Bracket, Side Mudguard, NO.1 RH
76932A Bracket, Side Mudguard, NO.1 LH
76933A Bracket, Side Mudguard, NO.2 RH
76934A Bracket, Side Mudguard, NO.2 LH
76935 Retainer, Side Mudguard, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
