Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 8 illustrations

Illustrations

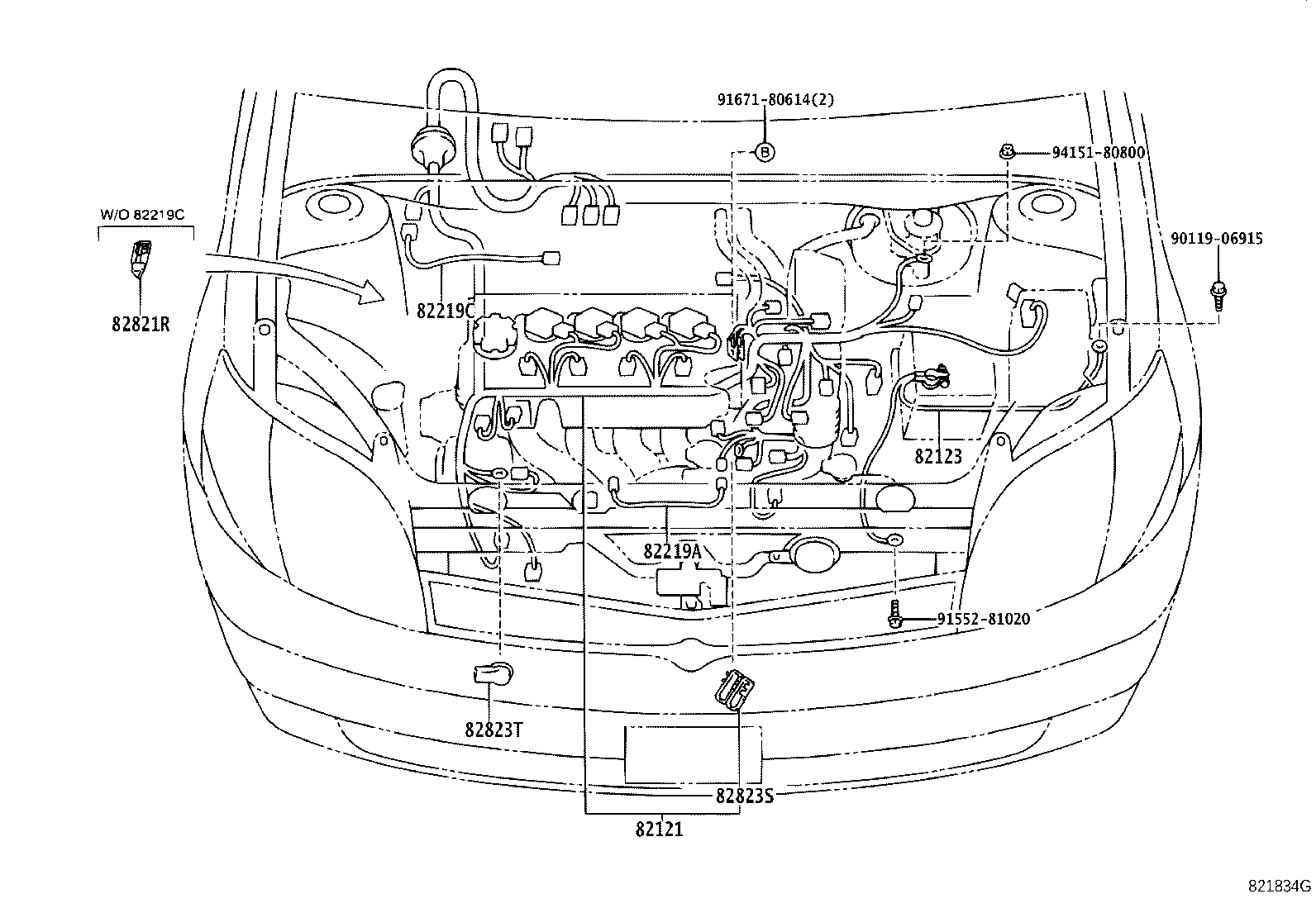

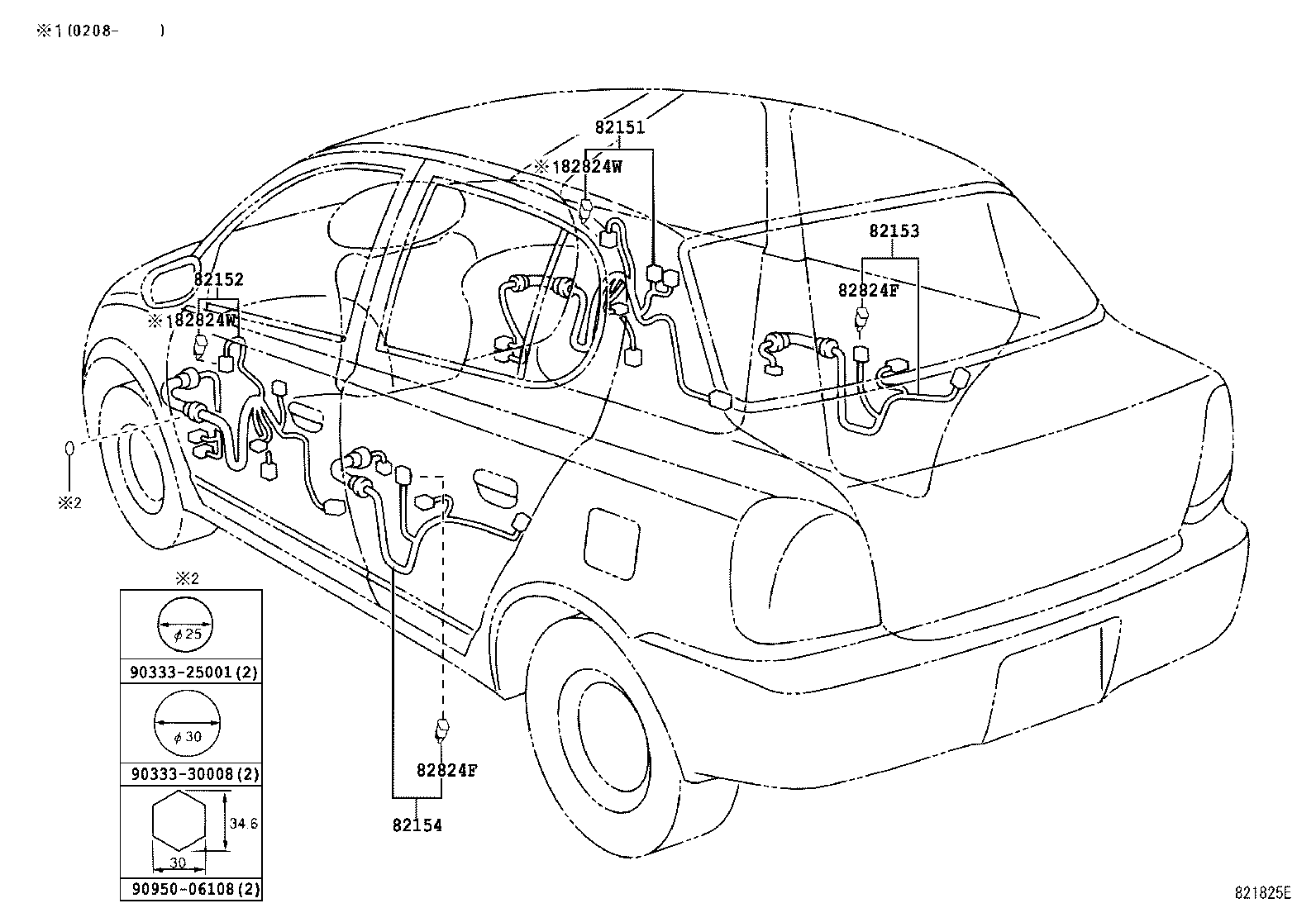

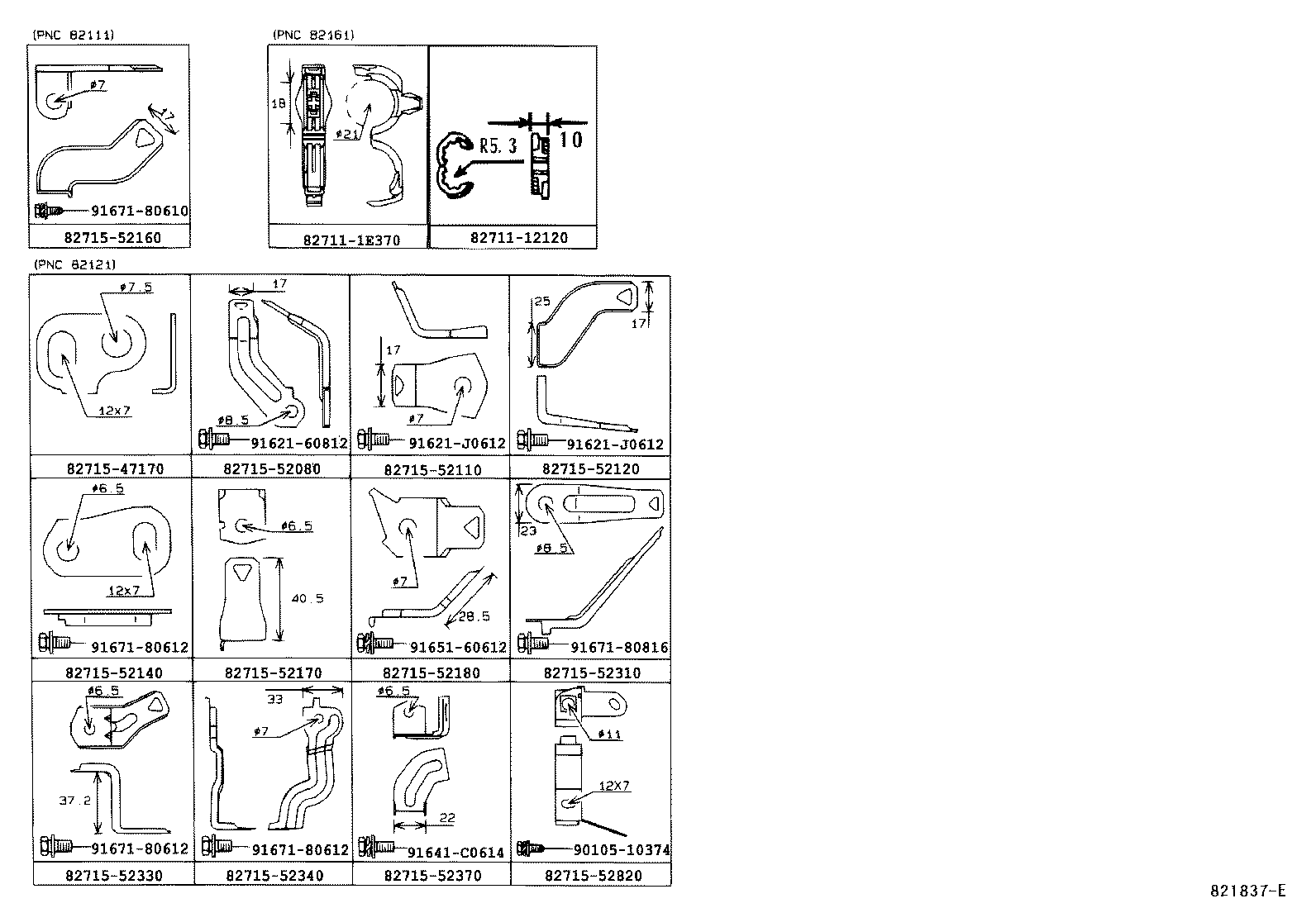

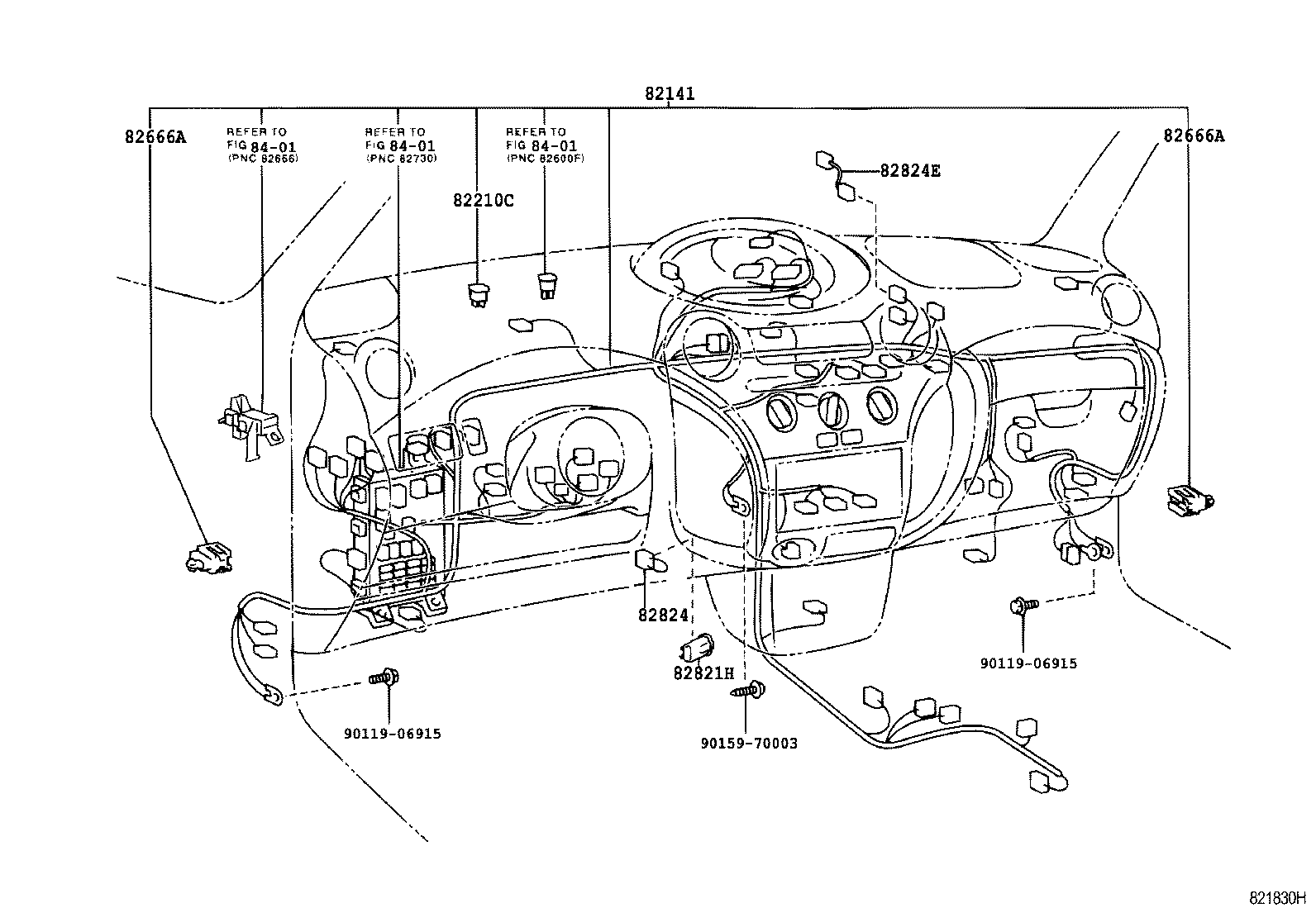

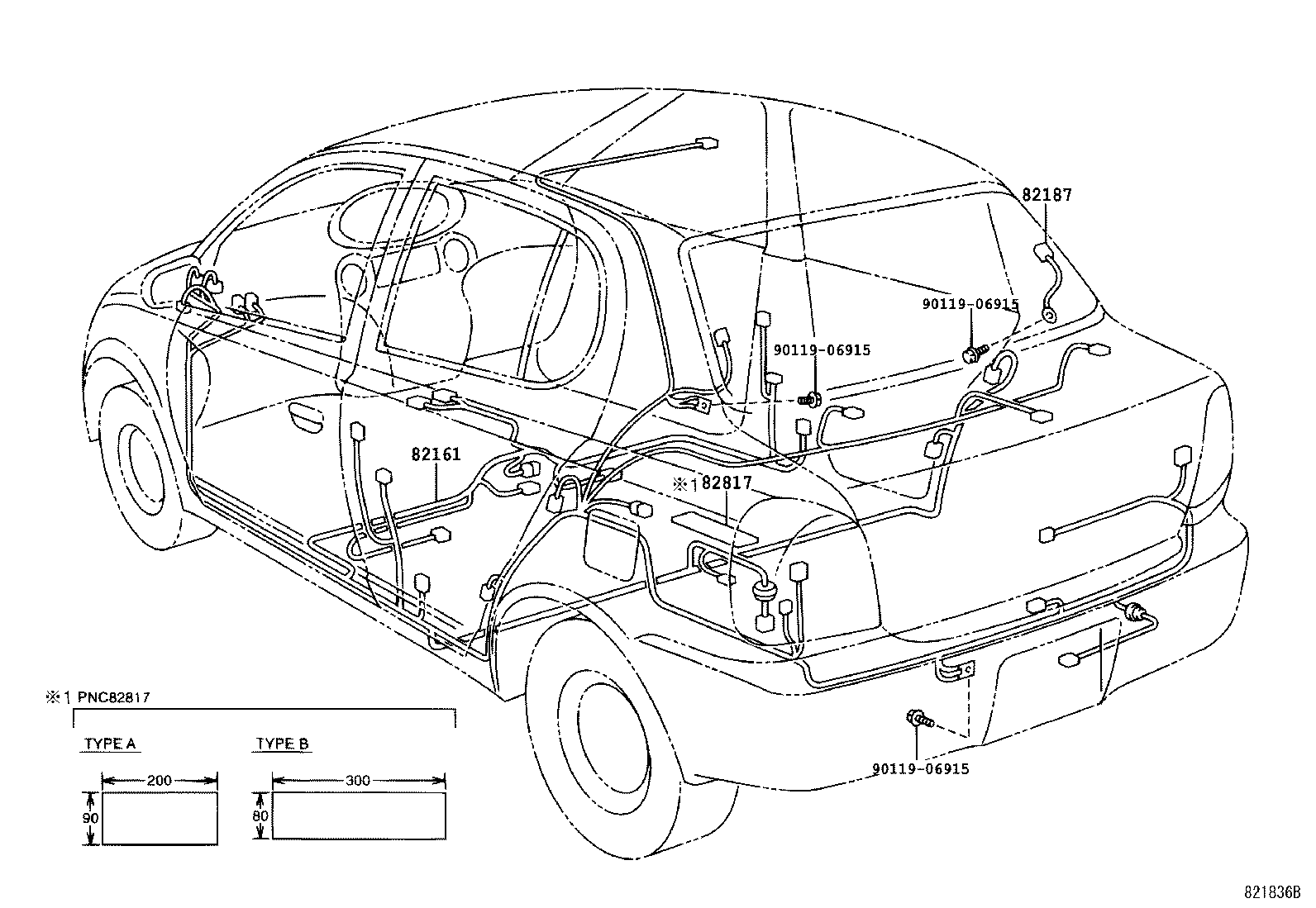

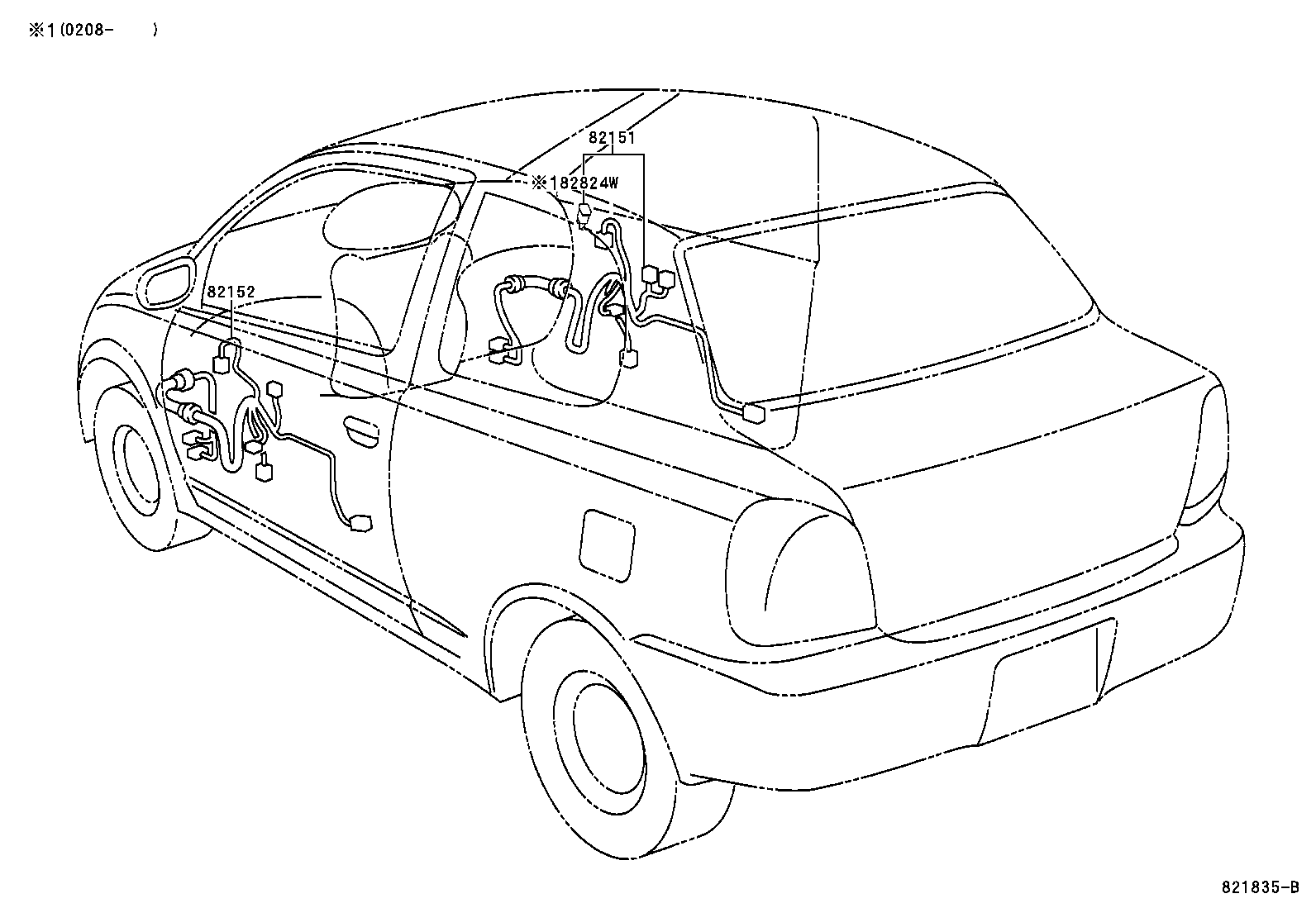

Figure 821833C 821833C 1999-08 → — Figure 821834G 821834G 1999-08 → — Figure 821830H 821830H 1999-08 → — Figure 821835B 821835B 1999-08 → — Figure 821825E 821825E 1999-08 → — Figure 821836B 821836B 1999-08 → — Figure 821837E 821837E 1999-08 → — Figure 823059 823059 1999-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82219C Wire, Sensor
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82821H Cover, Connector
82821R Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824W Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
