Toyota Echo

1999-08 → 2005-11 · chassis NCP12 · catalogue 141460 · United States

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 3 illustrations

Illustrations

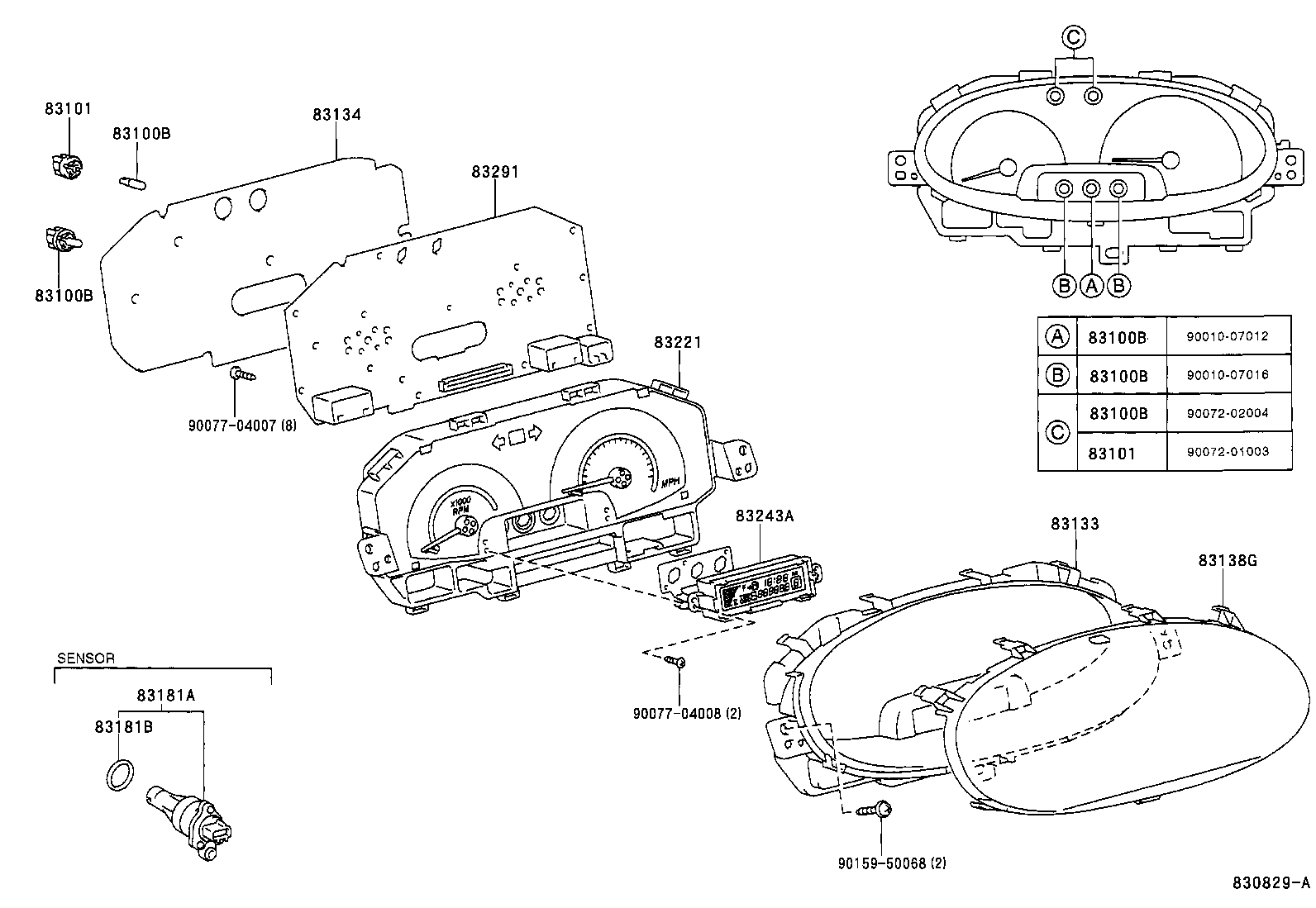

Figure 830530A 830530A 1999-08 → — Figure 830829A 830829A 2002-08 → — Figure 830531A 830531A 1999-08 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83221 Meter, Speed
83243A Gauge Sub-assy, Fuel Receiver
83291 Computer, Combination Meter
83910 Clock Assy
83911C Ornament, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
