Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

12 part groups · 2 illustrations

Illustrations

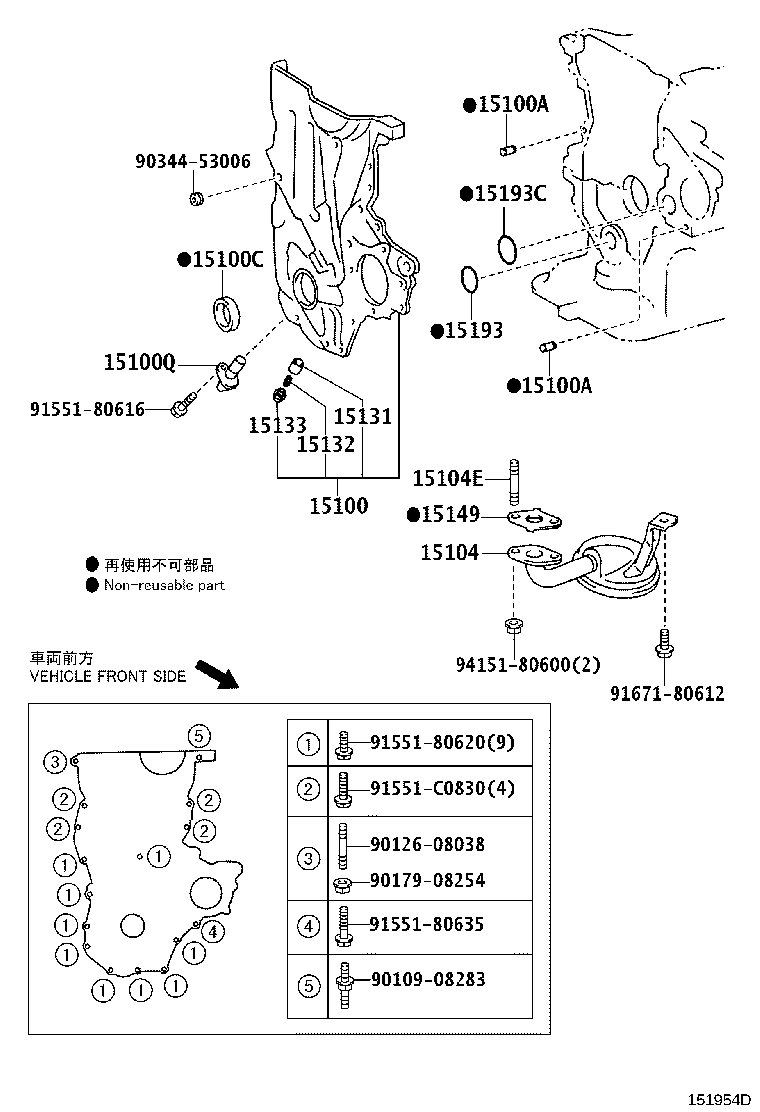

Figure 151067F 151067F 2006-02 → 2012-04 Figure 151954D 151954D 2012-04 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100C Seal(FOR OIL PUMP)
15100Q Sensor, Crank Position
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
15193C Gasket, Oil Pump NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
