Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

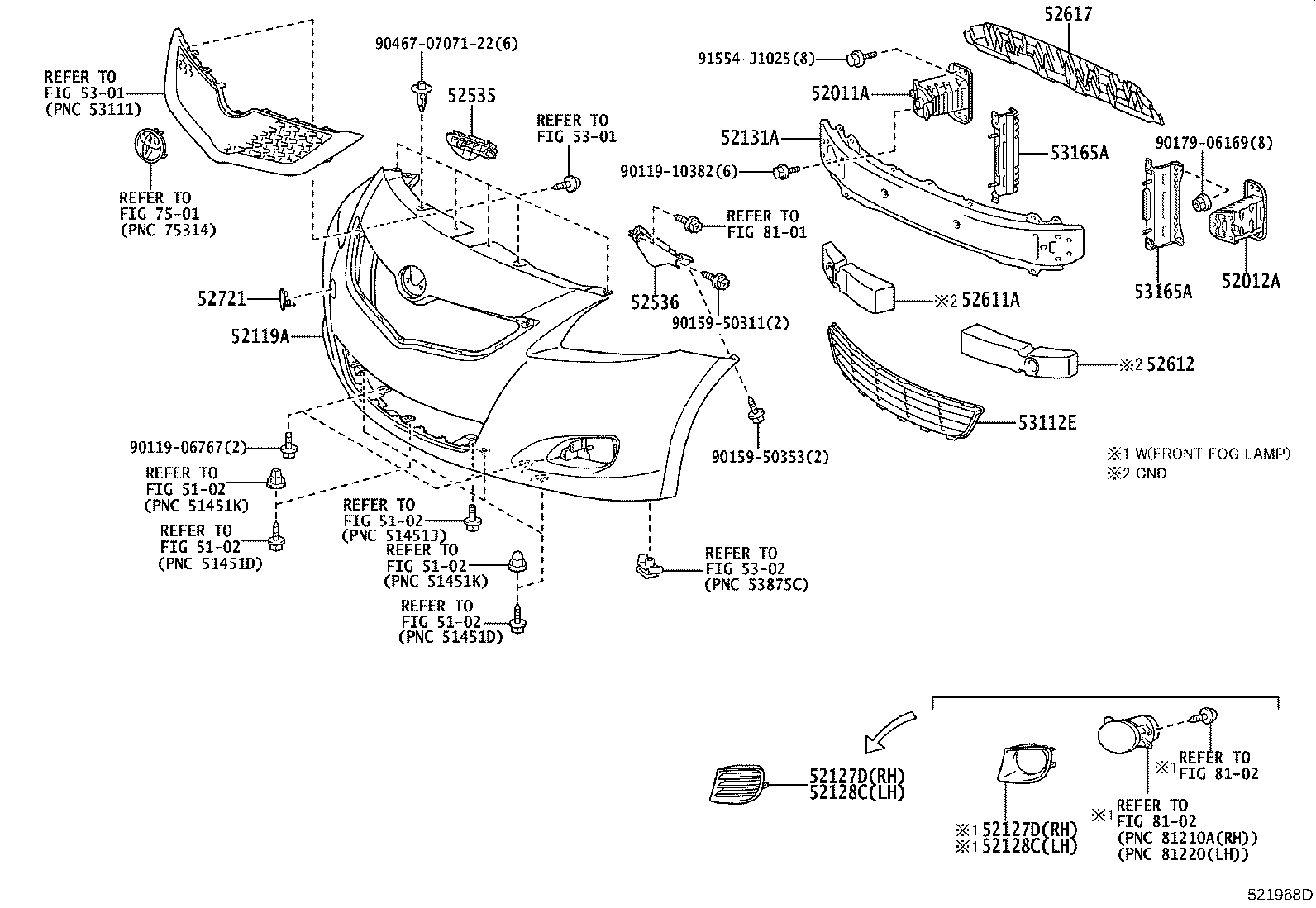

Figure 521490J 521490J 2006-02 → — Figure 521968D 521968D 2008-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
52617 Absorber, Radiator Support, Upper
52721 Moulding, Front Bumper Extension, RH
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
