Toyota Yaris
2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States
Supported model
Data version 2016-10
Hood & Front Fender
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53381 | Seal, Hood TO Radiator Support |
| 53381E | Seal, Hood TO Radiator Support |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53851C | Pad, Front Wheel Opening Extension, NO.1 |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

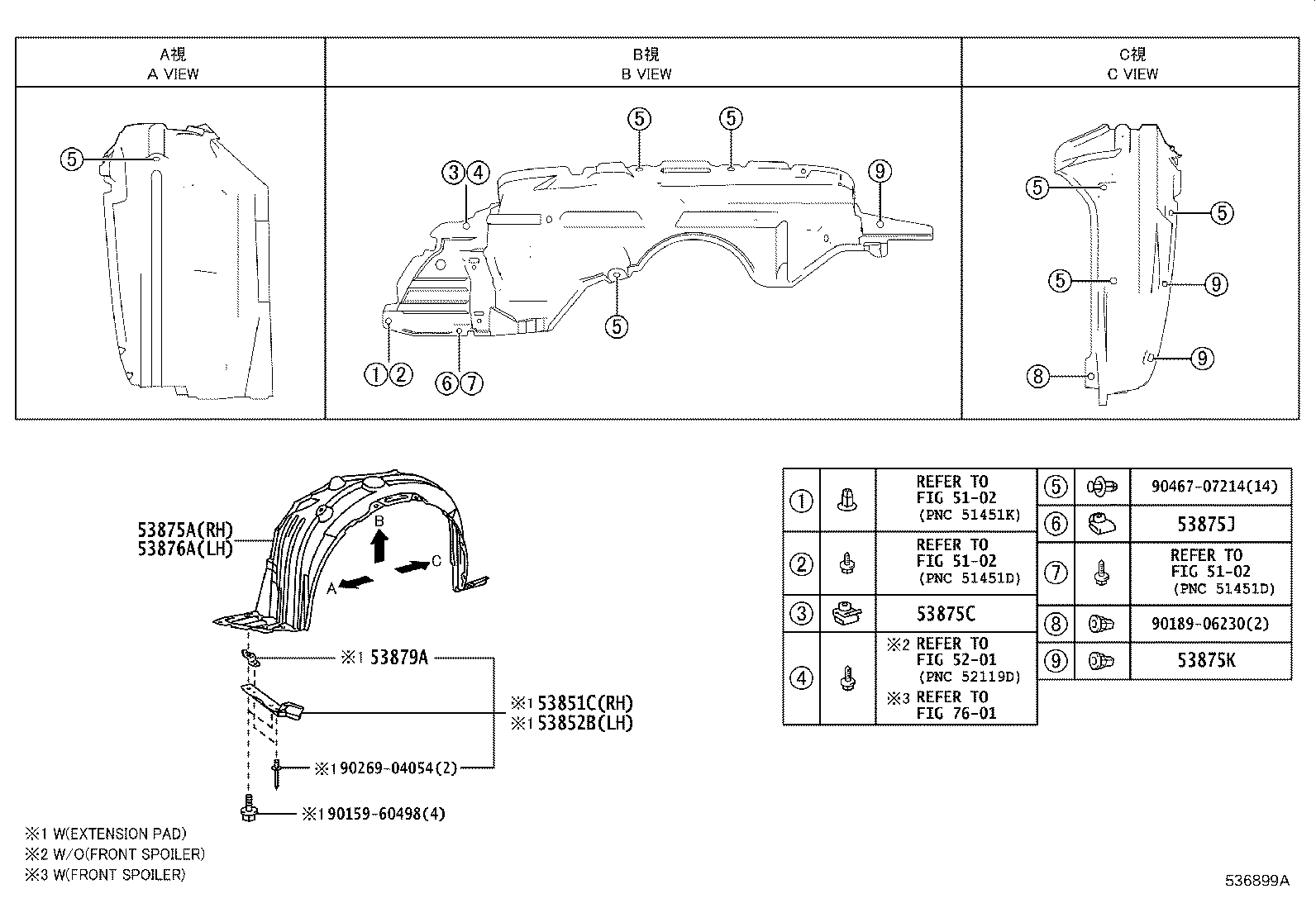

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875J | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882F | Seal, Front Fender |
| 55738C | Stopper, Hood, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
