Toyota Yaris
2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States
Supported model
Data version 2016-10

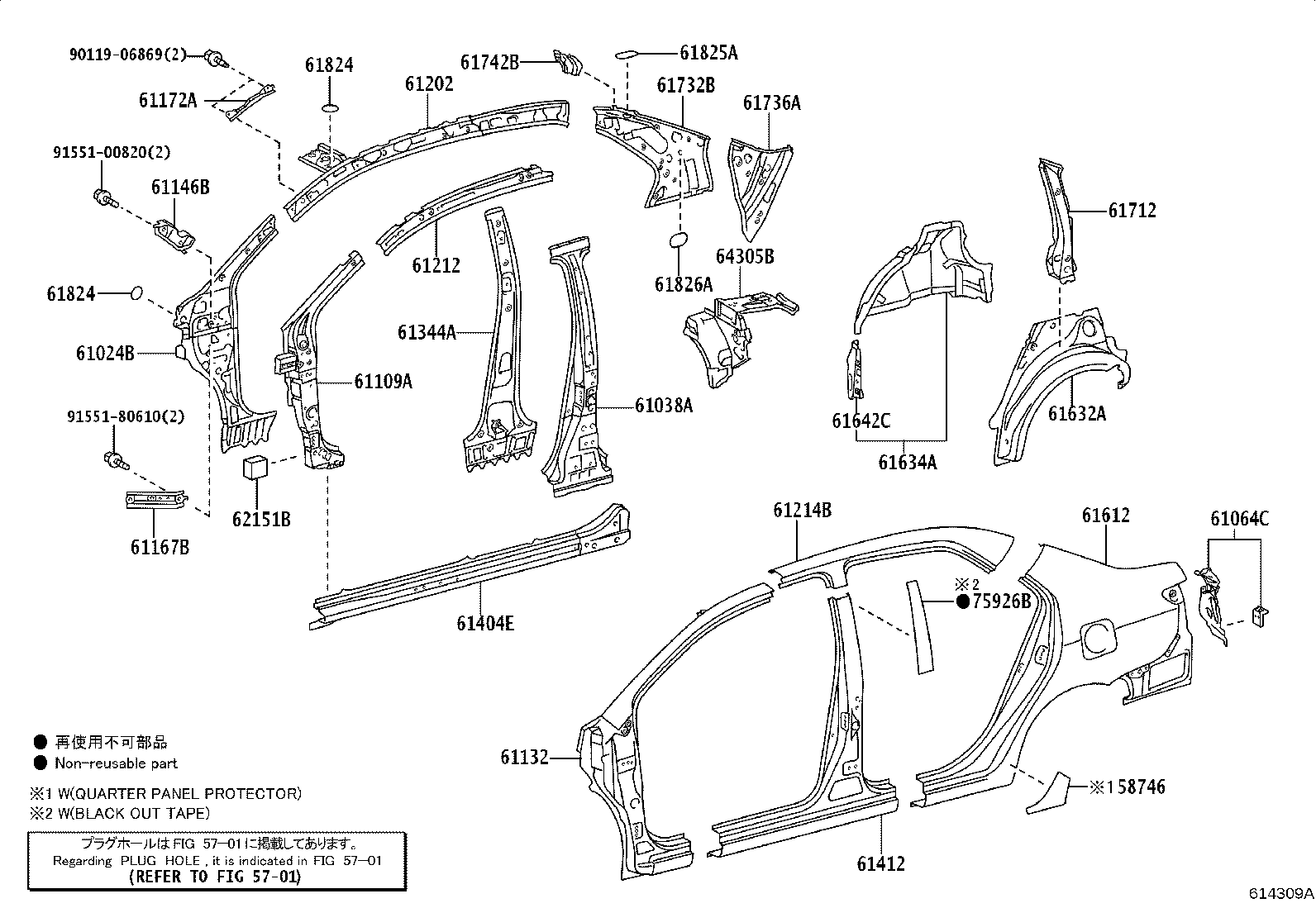

Side Member
53 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58745 | Protector, Quarter Panel, Front RH |
| 58746 | Protector, Quarter Panel, Front LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61063C | Trough Sub-assy, Luggage Door Opening, Front RH |
| 61064C | Trough Sub-assy, Luggage Door Opening, Front LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61145B | Gusset, Front Body Pillar, Lower RH |
| 61146B | Gusset, Front Body Pillar, Lower LH |
| 61167B | Brace, Front Body Pillar, Lower |
| 61171 | Retainer, Front Pillar, Lower Inner RH |
| 61172A | Retainer, Front Pillar, Lower Inner LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61741B | Reinforcement, Back Window Opening, RH |
| 61742B | Reinforcement, Back Window Opening, LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 61826A | Plate, Noise Control, NO.3 |
| 62151B | Pad, Cowl Side Silencer |
| 64304B | Reinforce Sub-assy, Package Tray Bracket, RH |
| 64305B | Reinforce Sub-assy, Package Tray Bracket, LH |
| 75925B | Tape, Black Out, NO.3 RH |
| 75926B | Tape, Black Out, NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
