Toyota Yaris
2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States
Supported model
Data version 2016-10

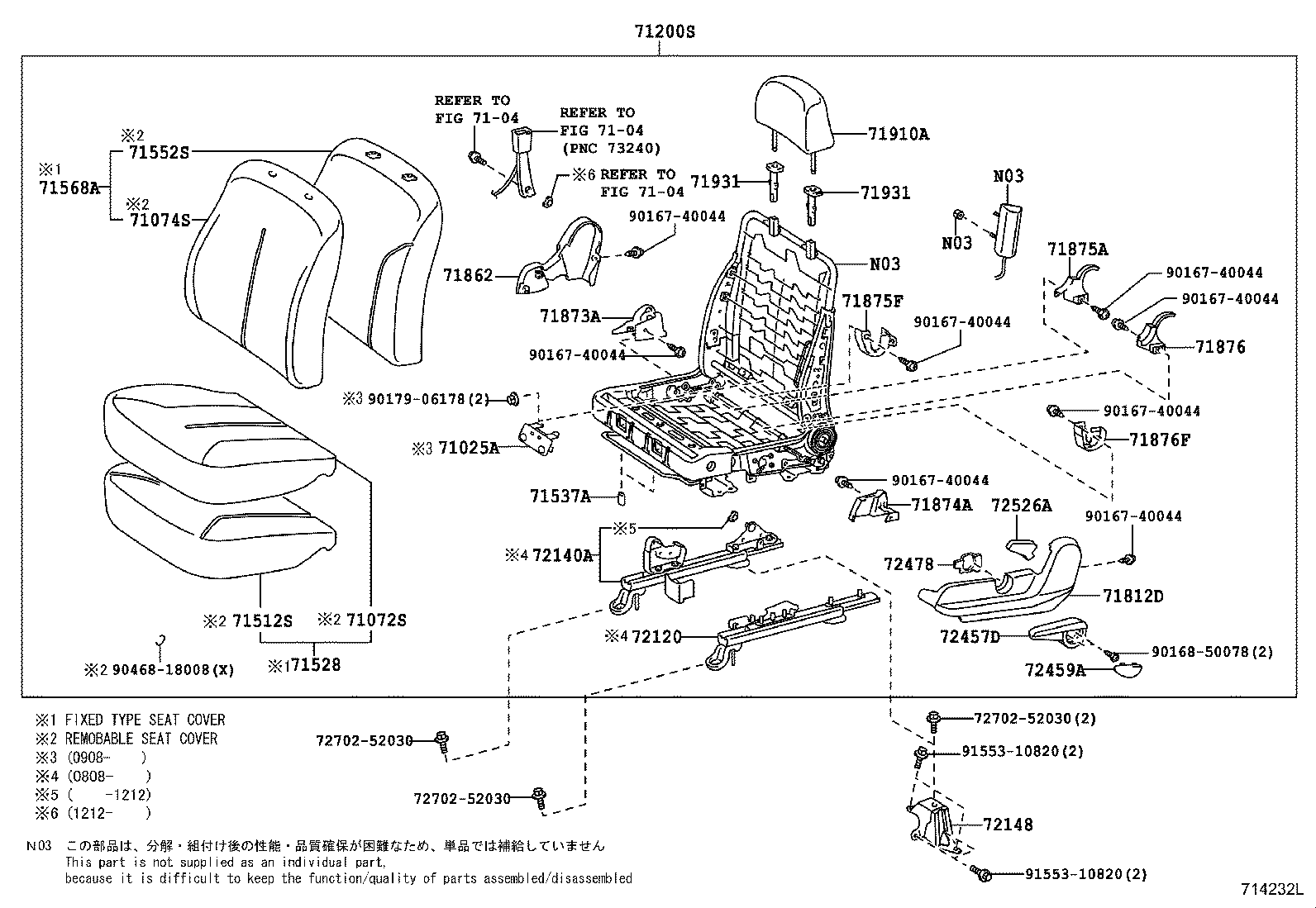

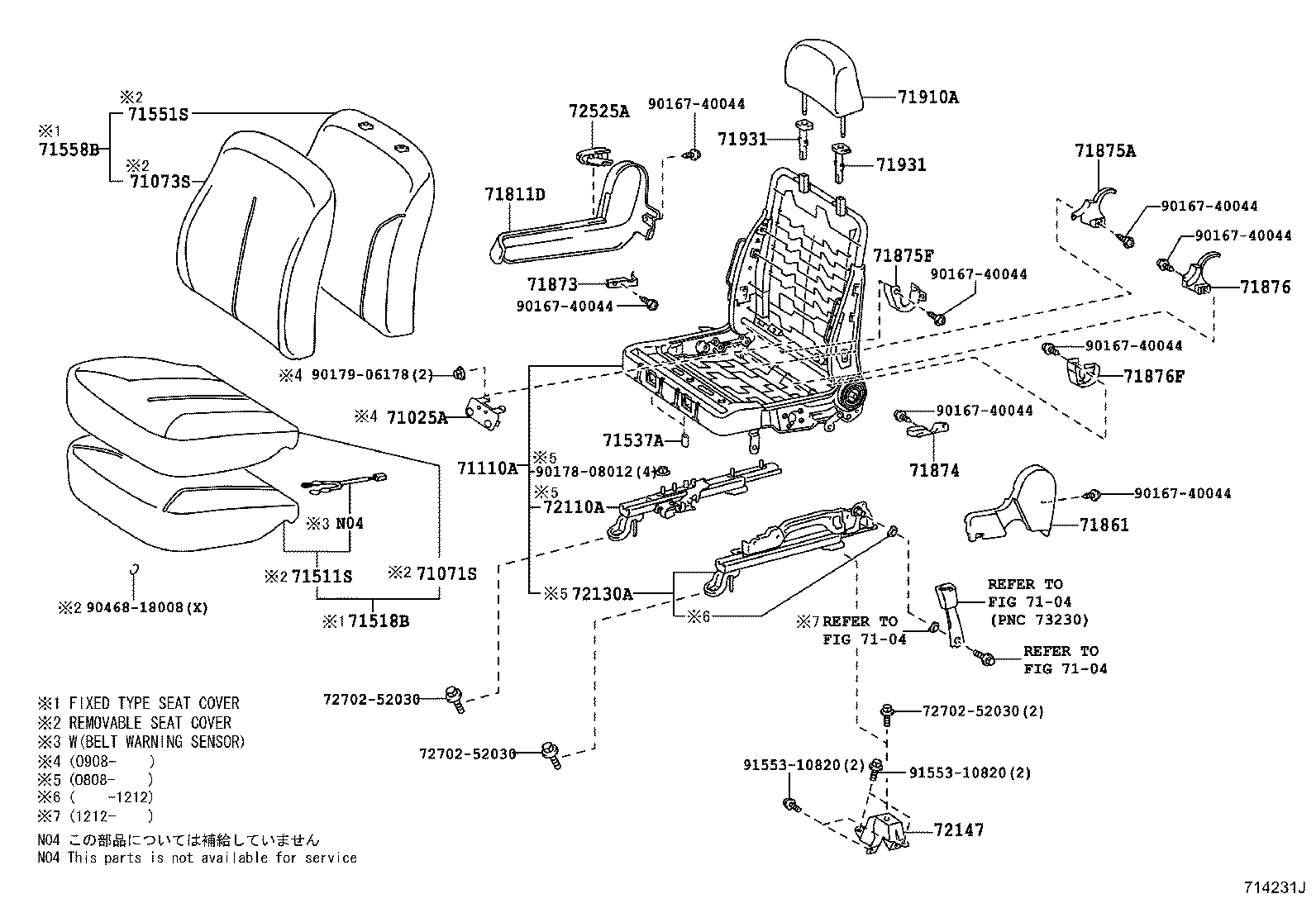

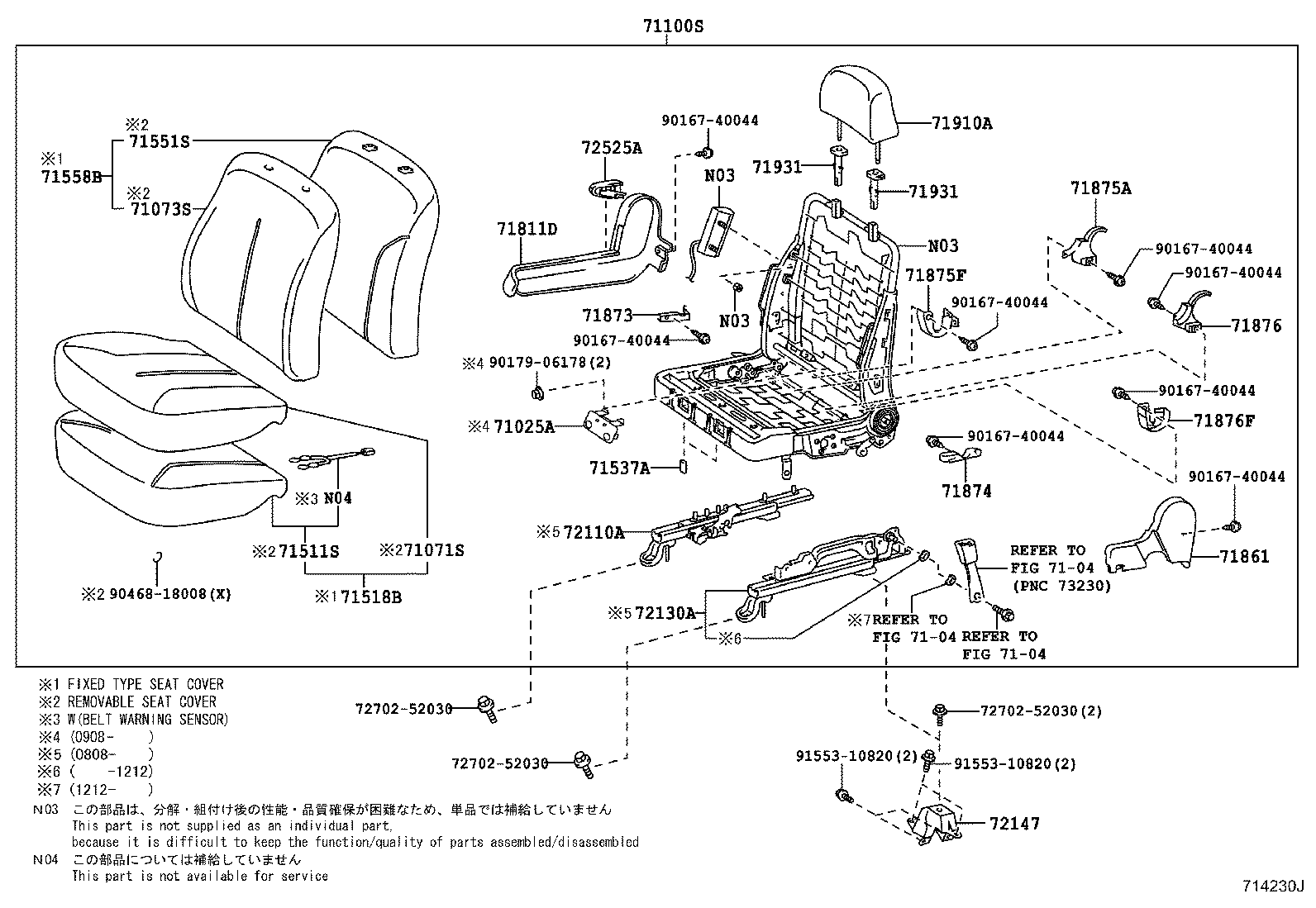

Front Seat & Seat Track
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71025A | Bracket Sub-assy, Front Seatback |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71200S | Seat Assy, Front LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72457D | Knob, Vertical Seat Adjuster, LH |
| 72459A | Cap, Vertical Seat Adjuster Knob |
| 72478 | Bush, Vertical Adjuster |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
