Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

35 part groups · 3 illustrations

Illustrations

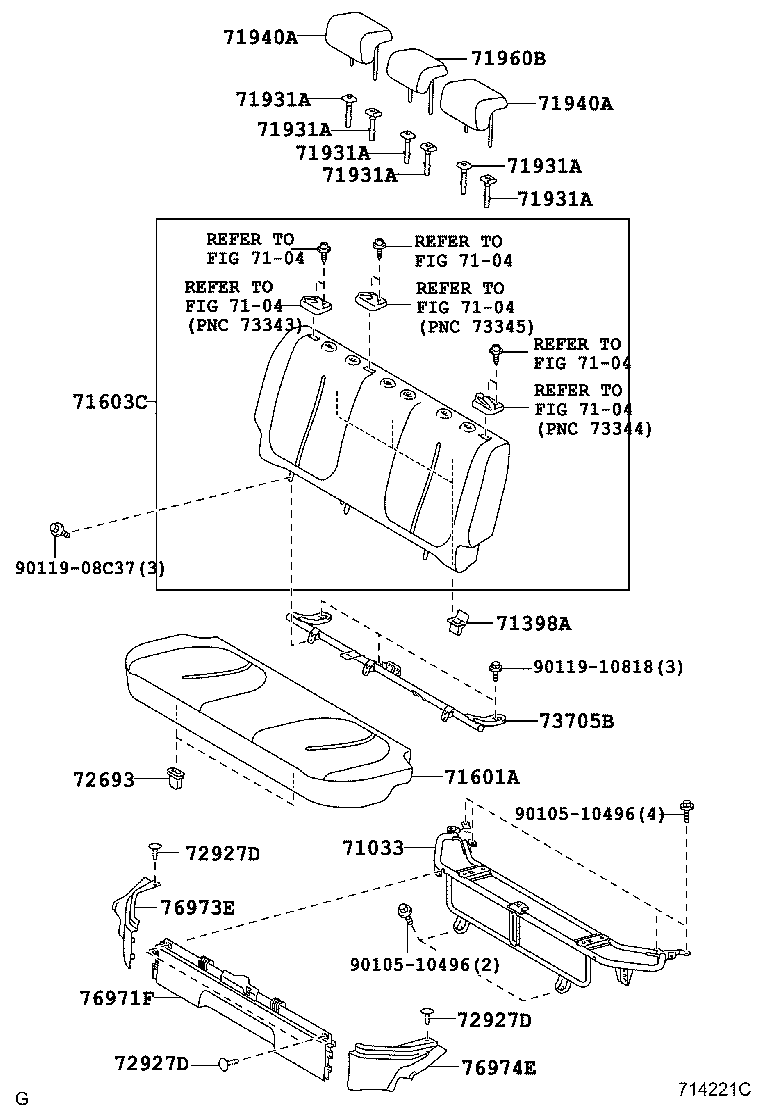

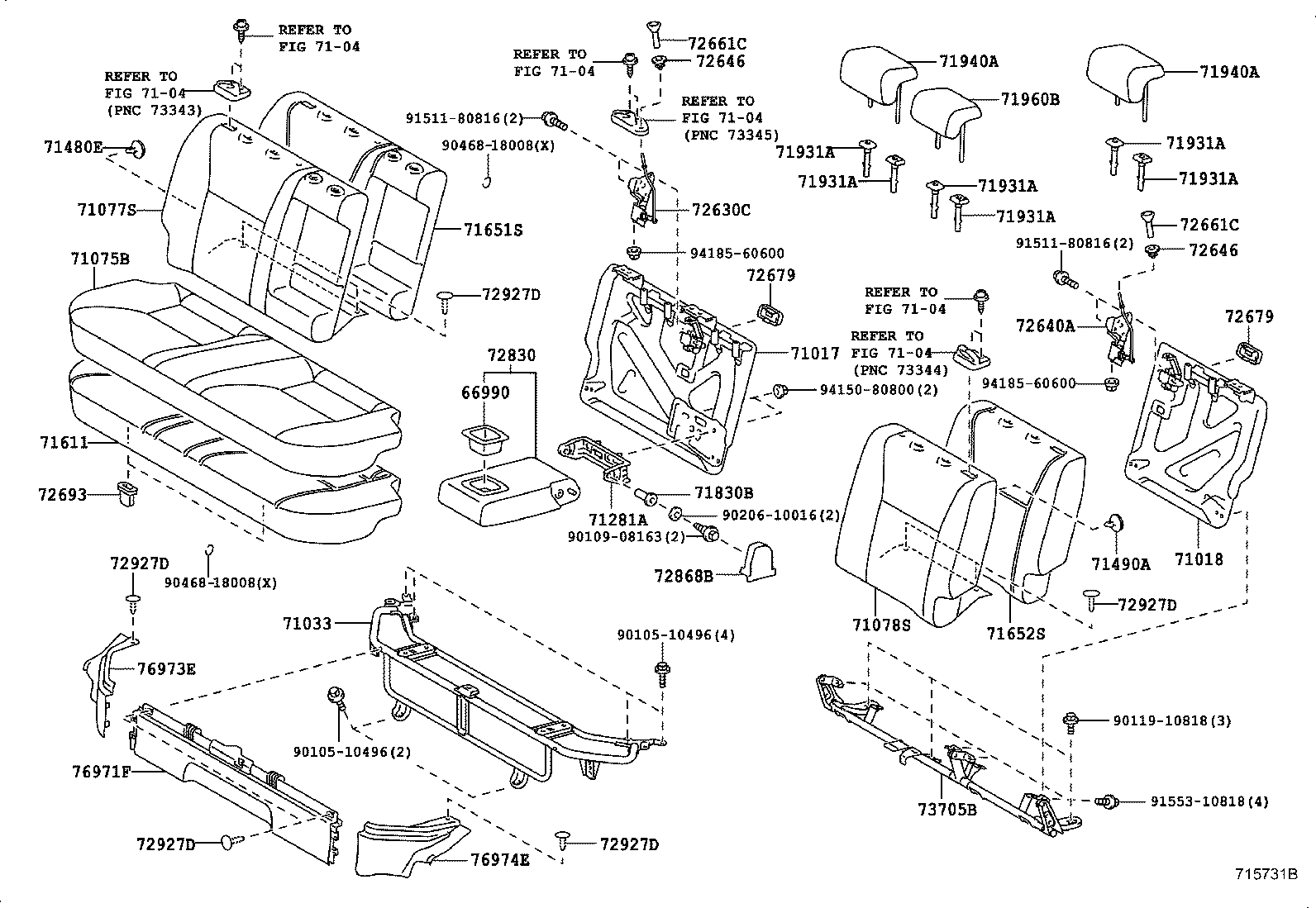

Figure 714224C 714224C 2006-02 → — Figure 715731B 715731B 2008-08 → — Figure 714221C 714221C 2006-02 → —

Part groups

PNCDescription
66990 Holder Assy, Cup
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71281A Hinge, Rear Seat Center Armrest
71398A Holder, Rear Seatback
71480E Clip, Rear Seatback, RH
71490A Clip, Rear Seatback, LH
71601A Pad Sub-assy, Rear Seat Cushion W/Cover
71603C Pad Sub-assy, Rear Seatback W/Cover
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71830B Bush(FOR REAR SEAT ARMREST)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72679 Bezel, Rear Seatback Lock Control
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72868B Cover, Center Armrest Hinge
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
73705B Bracket Sub-assy, Cross Anchor
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
