Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

20 part groups · 3 illustrations

Illustrations

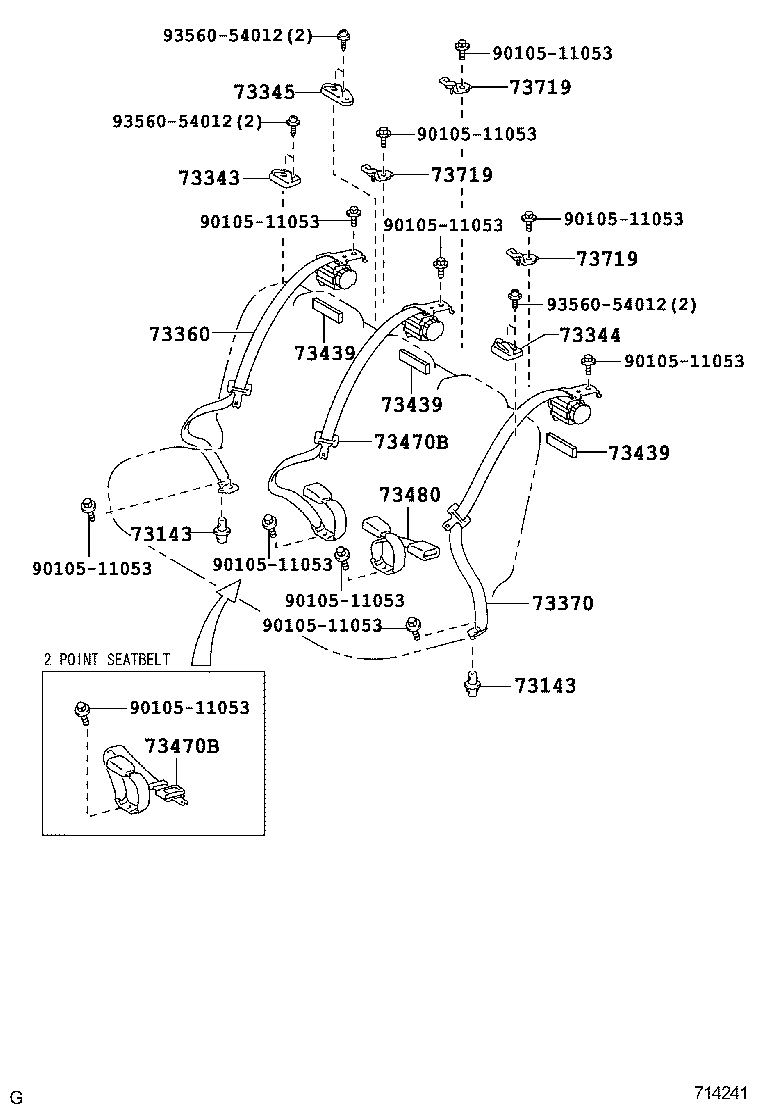

Figure 714216B 714216B 2006-02 → — Figure 714241 714241 2006-02 → — Figure 714242 714242 2006-02 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73143 Seal, Seat Belt Hole
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73408 Belt Assy, Rear Seat 3 Point Type, Center
73439 Cushion, Rear Seat Belt Retractor
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
