Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

10 part groups · 2 illustrations

Illustrations

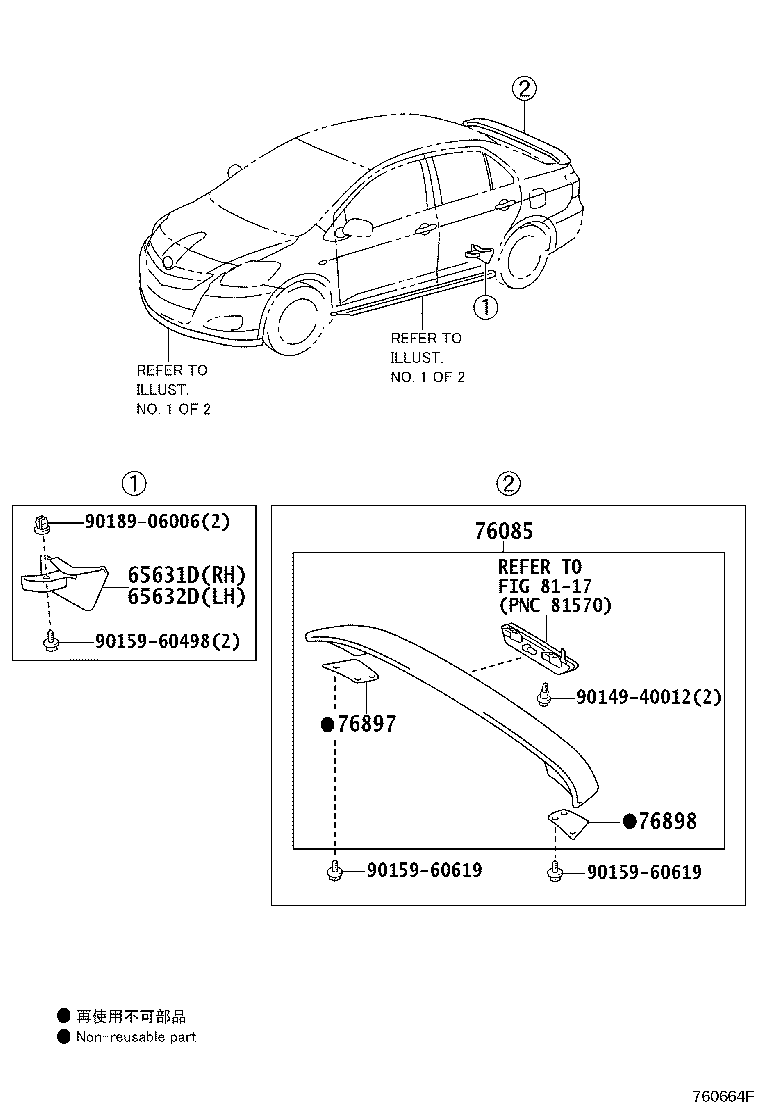

Figure 760517G 760517G 2006-02 → — Figure 760664F 760664F 2006-02 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392D Retainer, Outside Moulding
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
76085 Spoiler Sub-assy, Rear
76851 Cover, Front Spoiler
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76924C Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
