Toyota Yaris
2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States
Supported model
Data version 2016-10
Fuel Tank & Tube

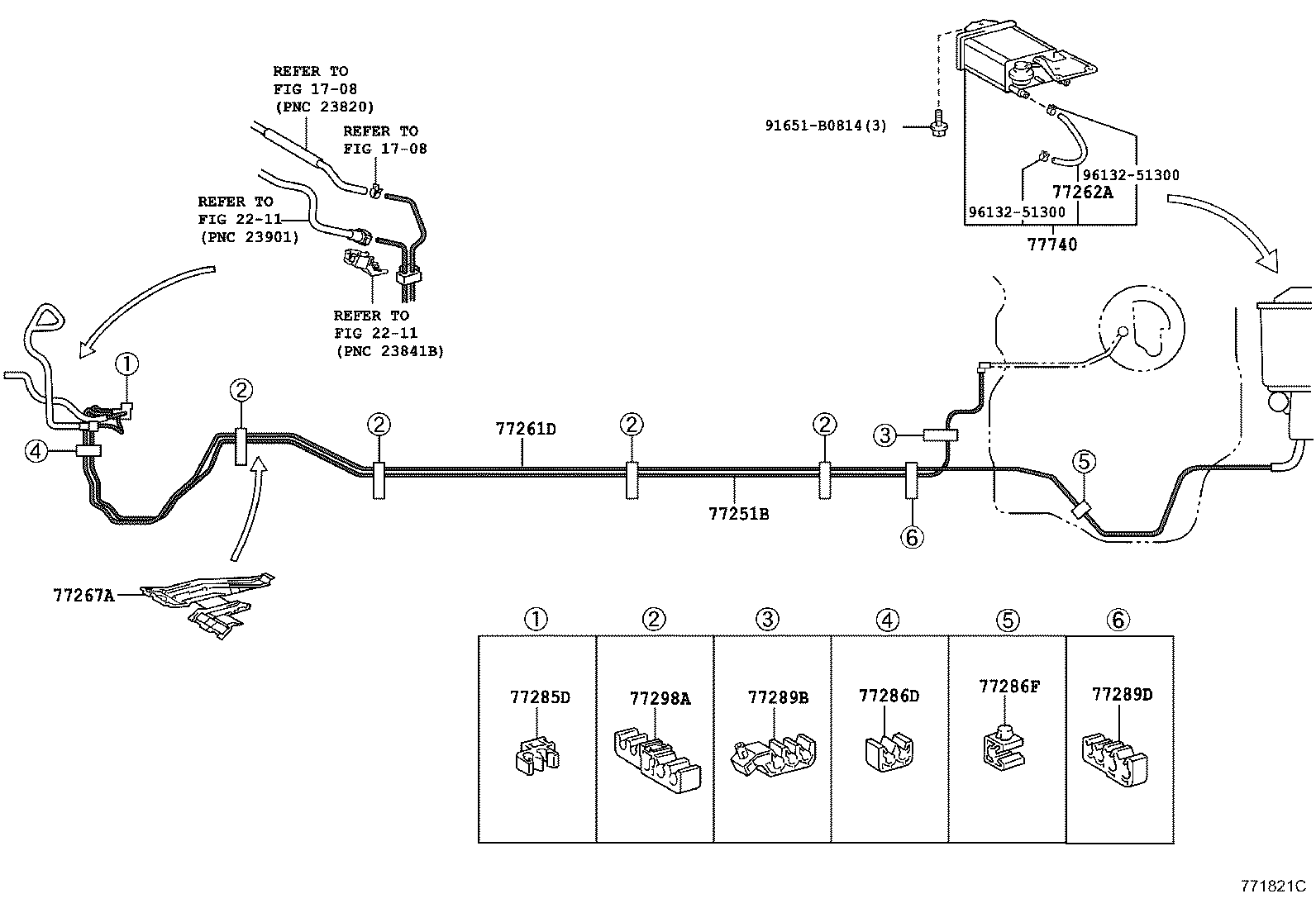

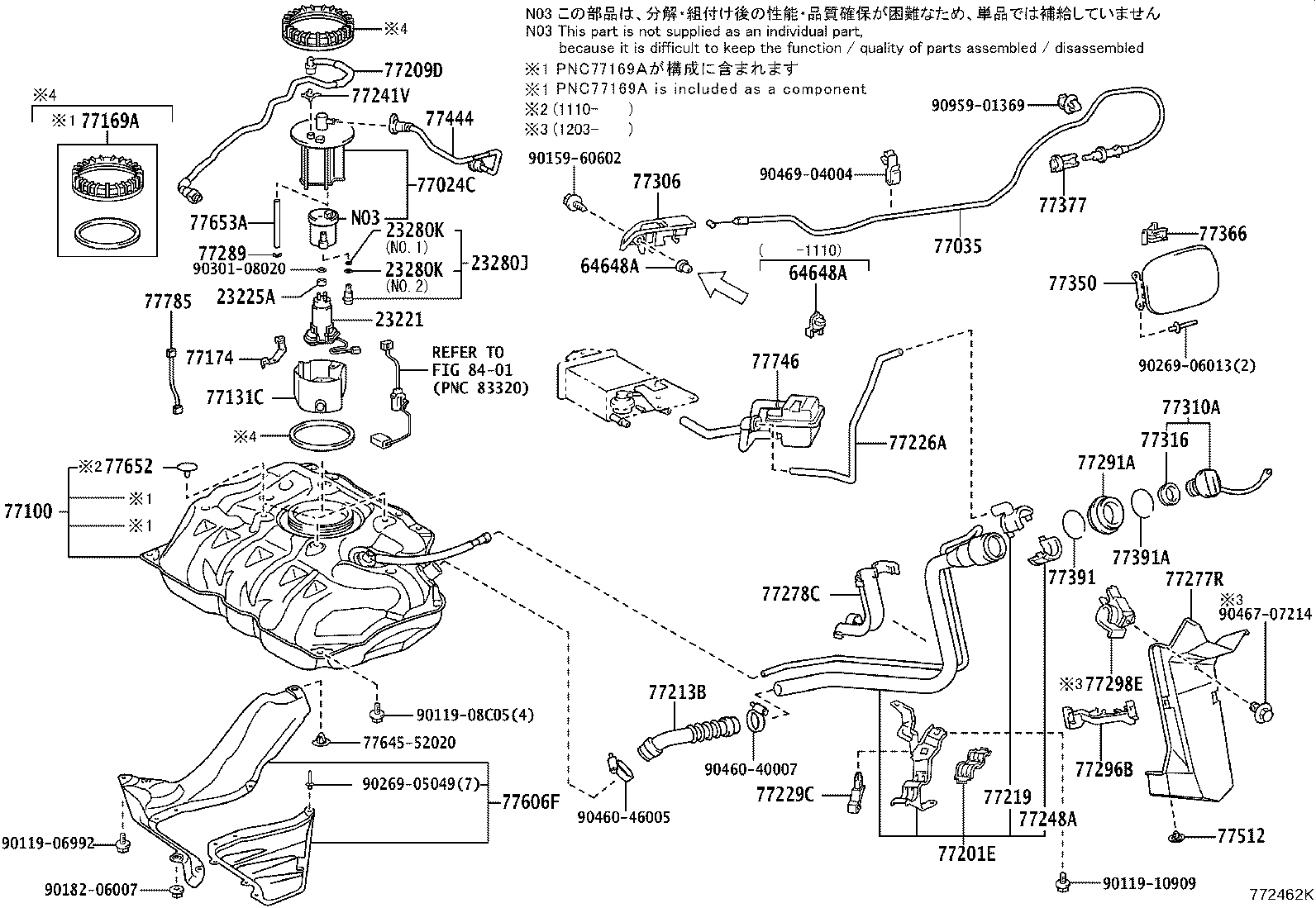

51 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 64648A | Grommet, Luggage Door Lock Opener |
| 77024C | Plate Sub-assy, Fuel Suction W/Fuel Filter |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77241V | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262A | Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289D | Clamp, Fuel Tube, NO.5 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298E | Support, Fuel Tube Protector, NO.3 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77444 | Hose, Fuel Tank Vent |
| 77512 | Bracket, Fuel Tank, Rear |
| 77606F | Case Sub-assy, Fuel Tank Cover Vent |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77740 | Canister Assy, Charcoal |
| 77746 | Filter, Charcoal Canister, NO.2 |
| 77785 | Harness, Fuel Pump |
