Toyota Yaris

2006-02 → 2016-04 · chassis NCP93 · catalogue 141470 · United States

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 9 illustrations

Illustrations

Figure 824639C 824639C 2006-02 → — Figure 824637C 824637C 2006-02 → — Figure 824638C 824638C 2006-02 → — Figure 824634 824634 2006-02 → — Figure 824640A 824640A 2006-02 → — Figure 824641 824641 2006-02 → — Figure 824644B 824644B 2006-02 → — Figure 824848E 824848E 2006-02 → — Figure 829926A 829926A 2006-02 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

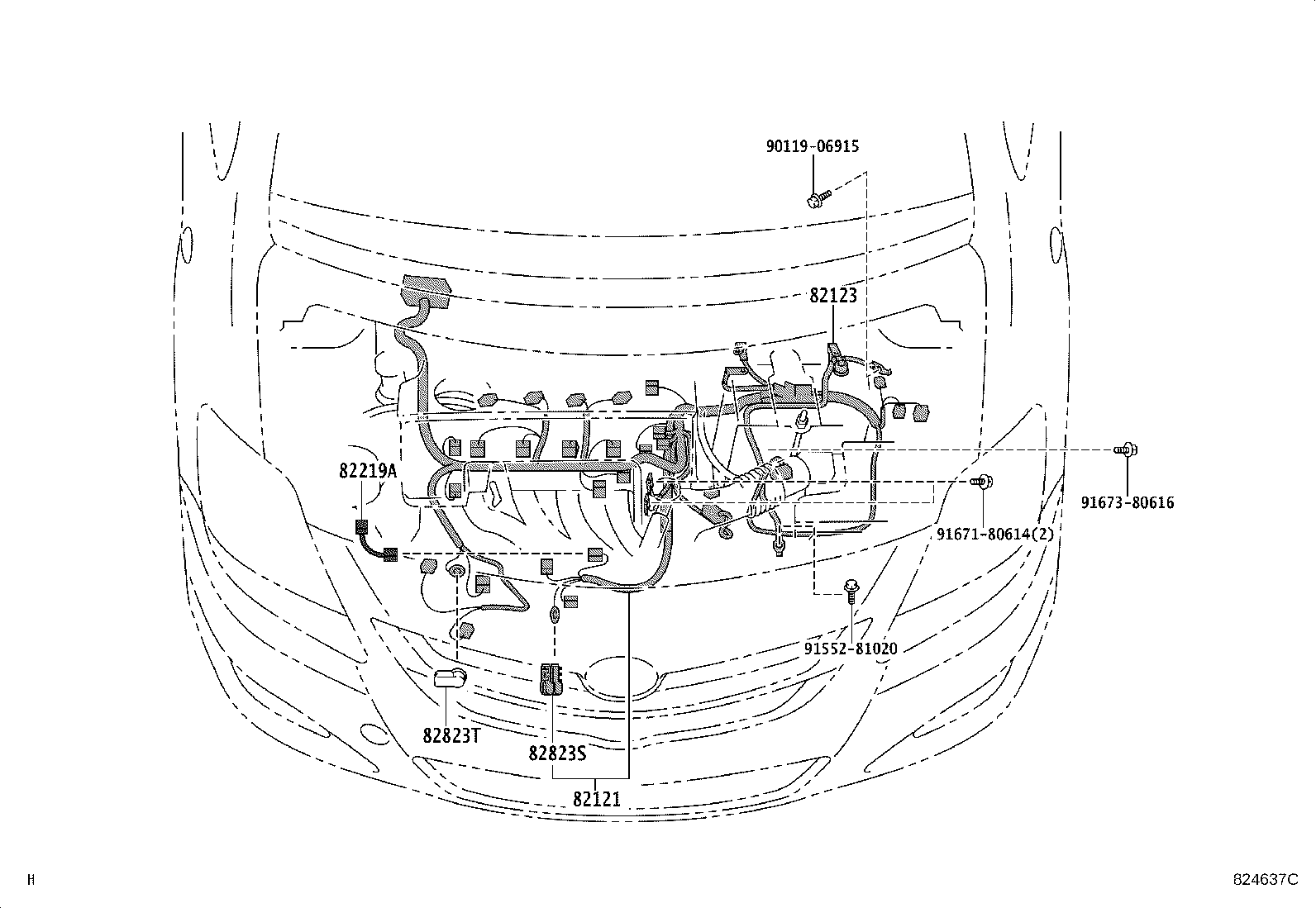

82121 Wire, Engine
82123 Wire, Engine, NO.3

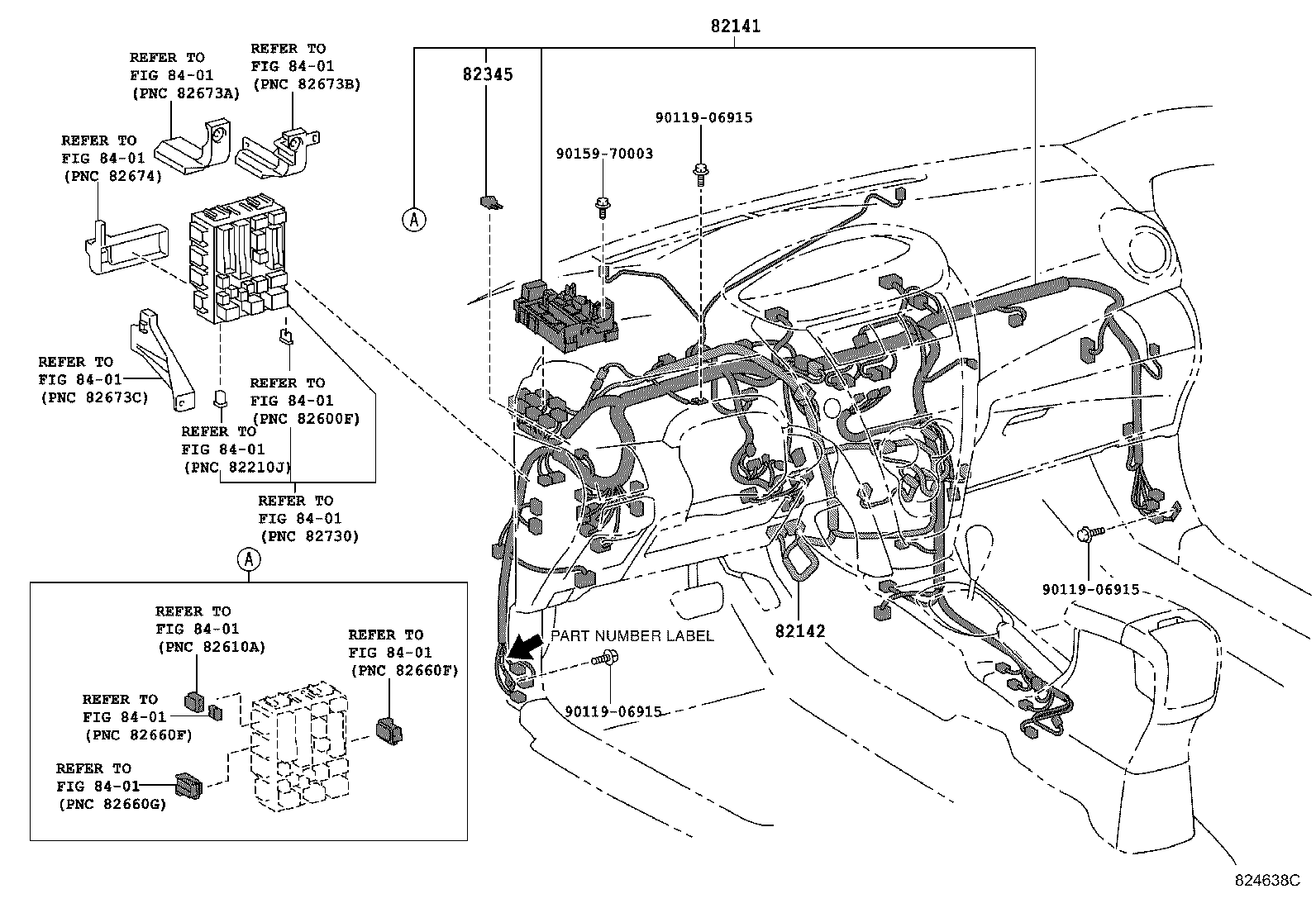

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

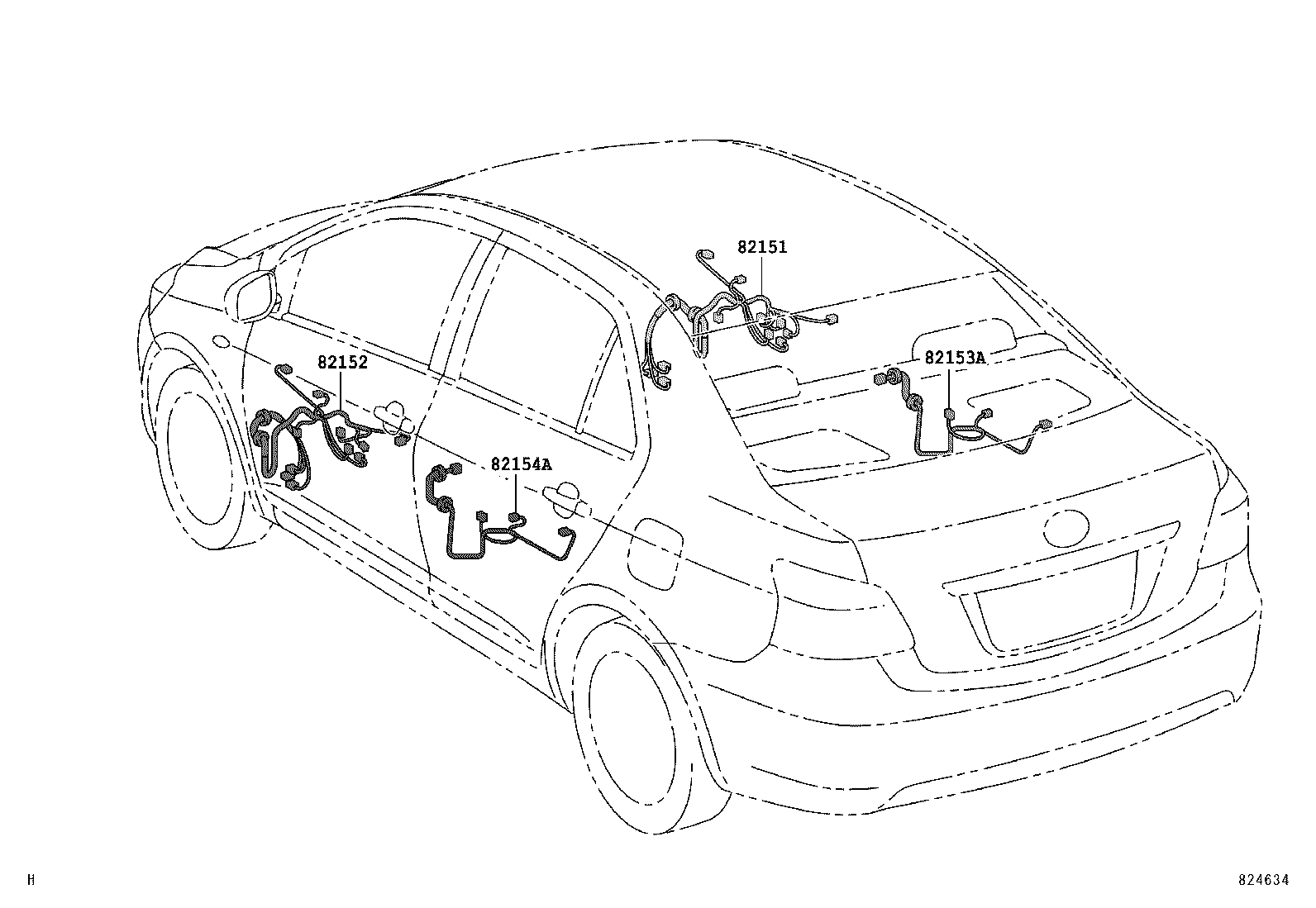

82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

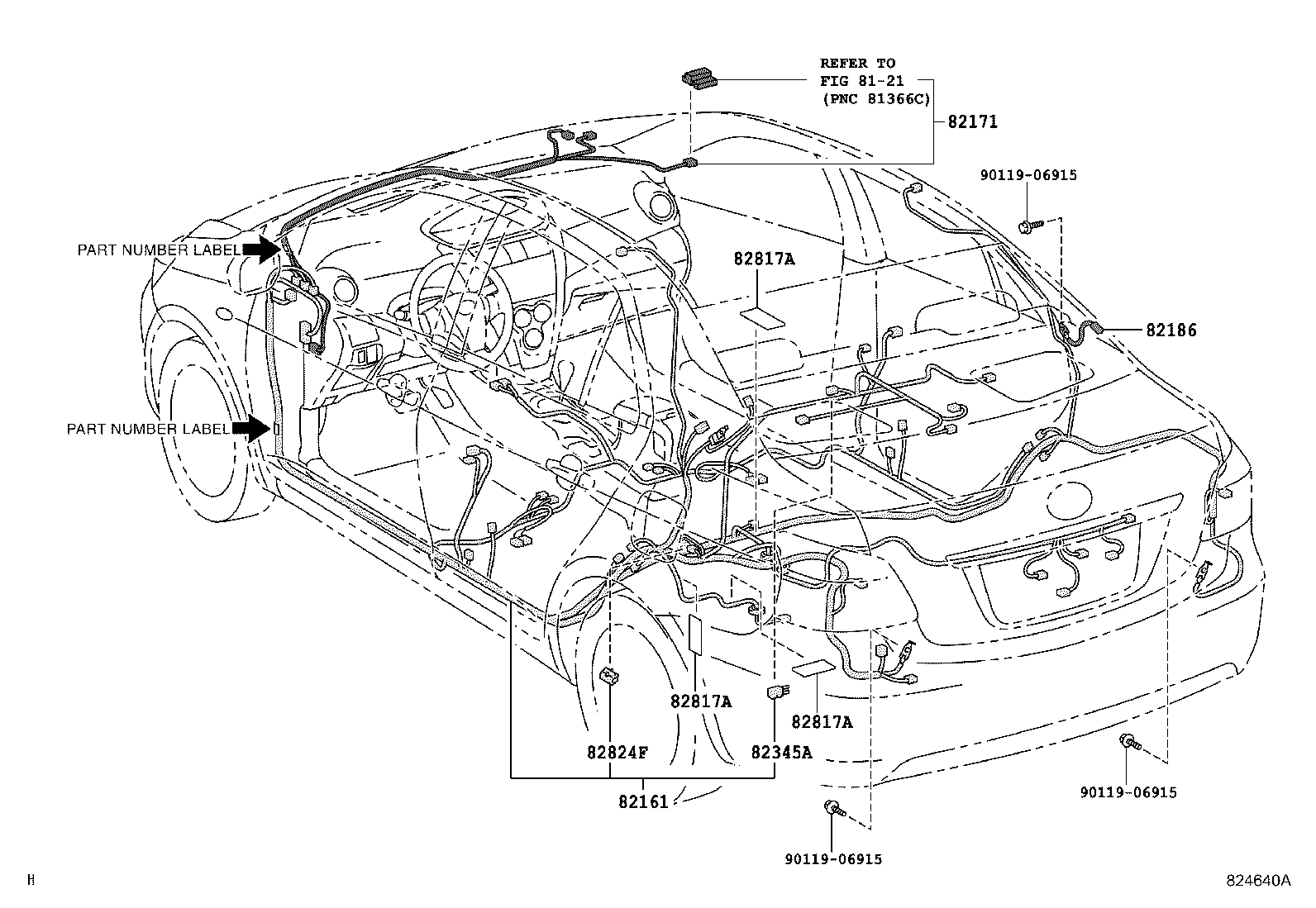

82161 Wire, Floor
82171 Wire, Roof, NO.1
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82219A Wire, Sensor
82345 Diode
82345A Diode

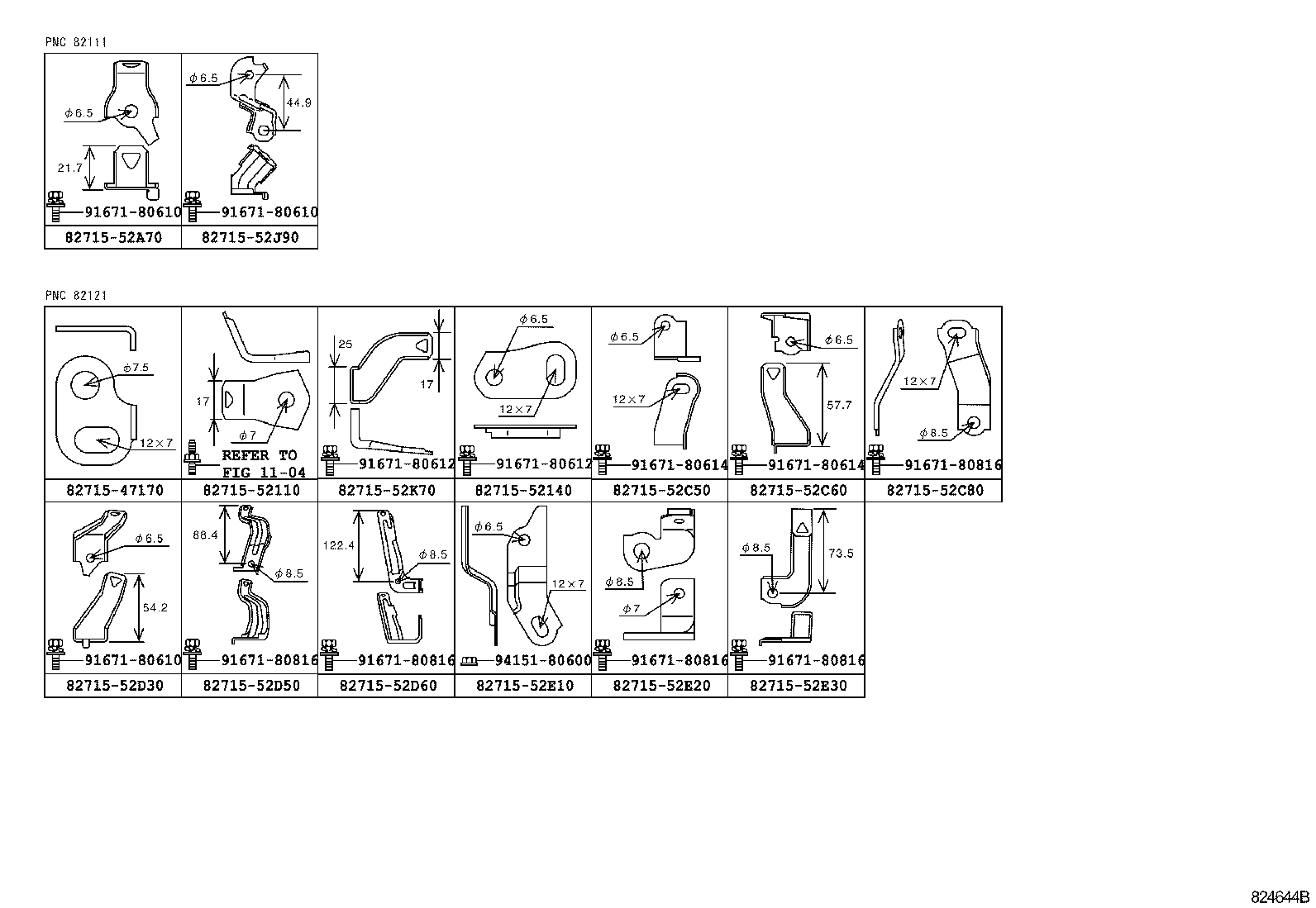

82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

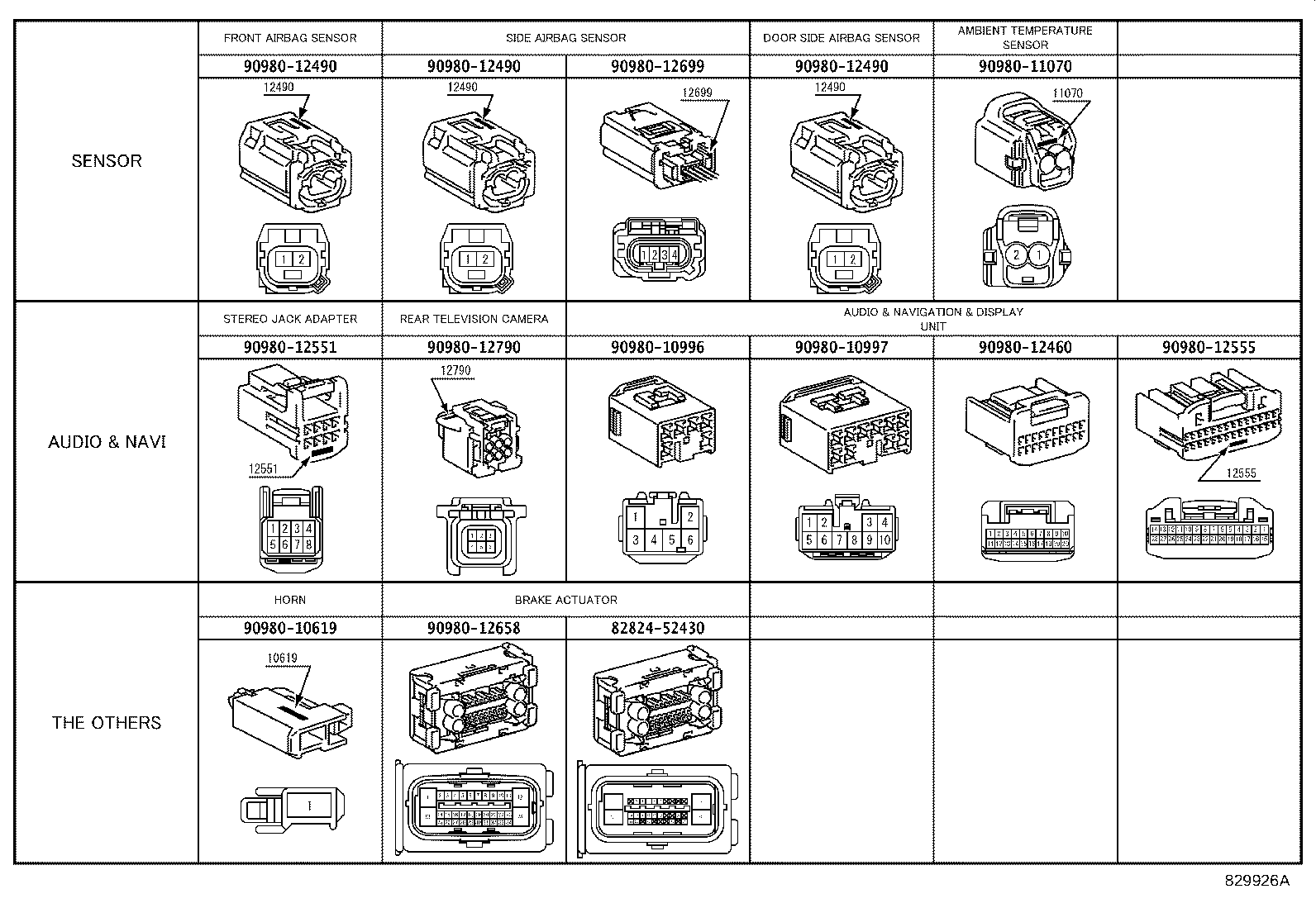

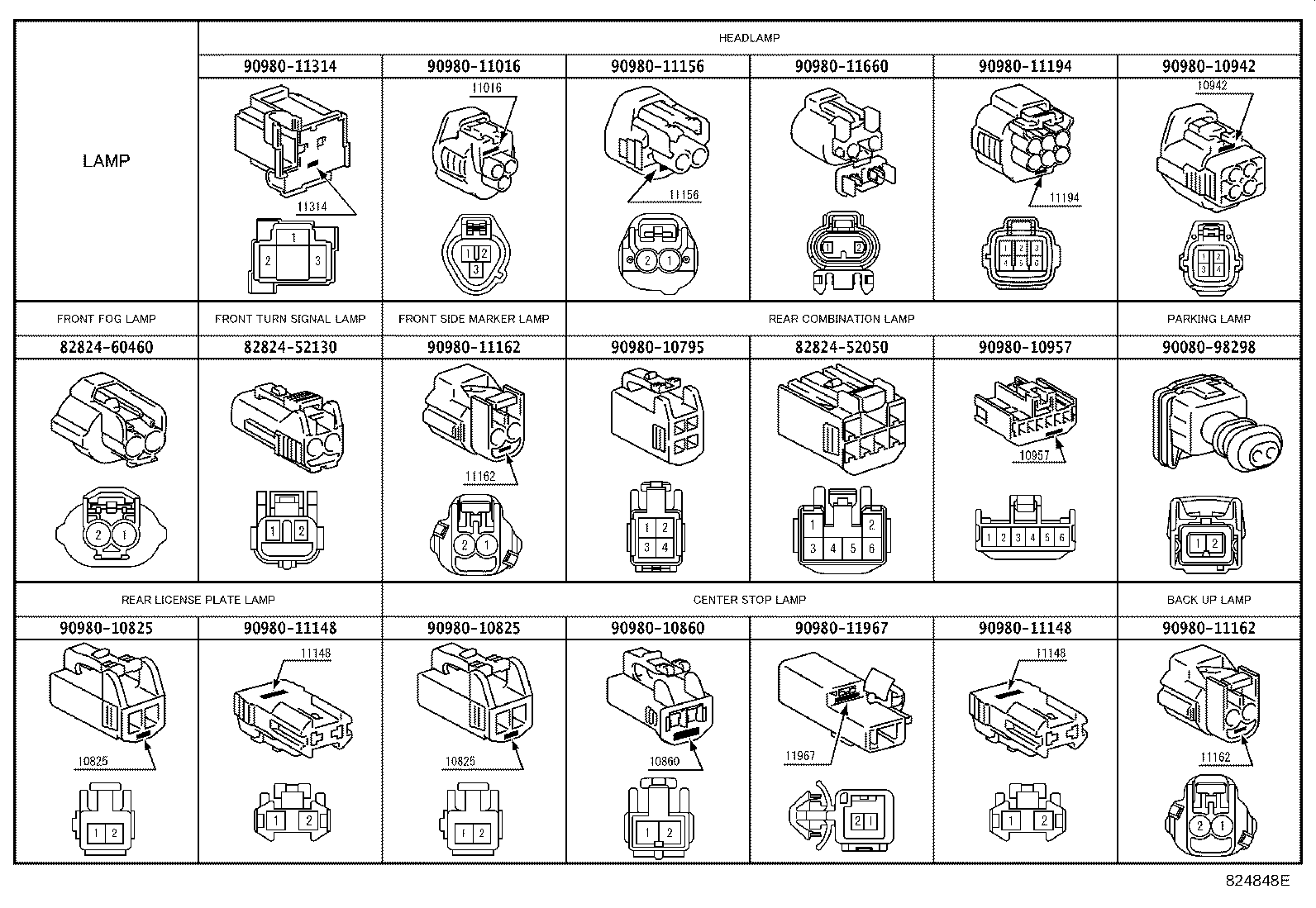

82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
