Heating & Air Conditioning - Cooler Piping

12 part groups · 4 illustrations

Illustrations

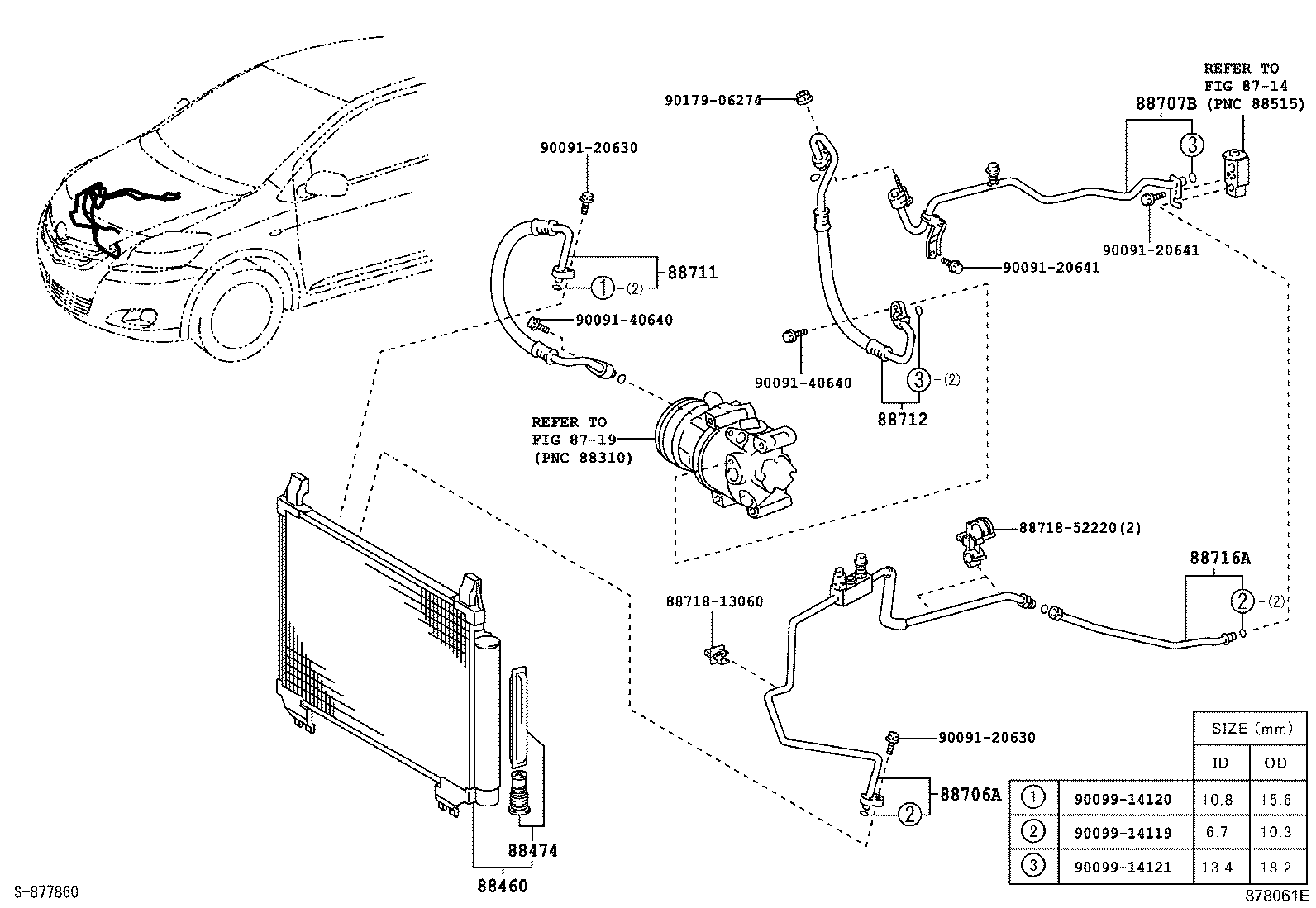

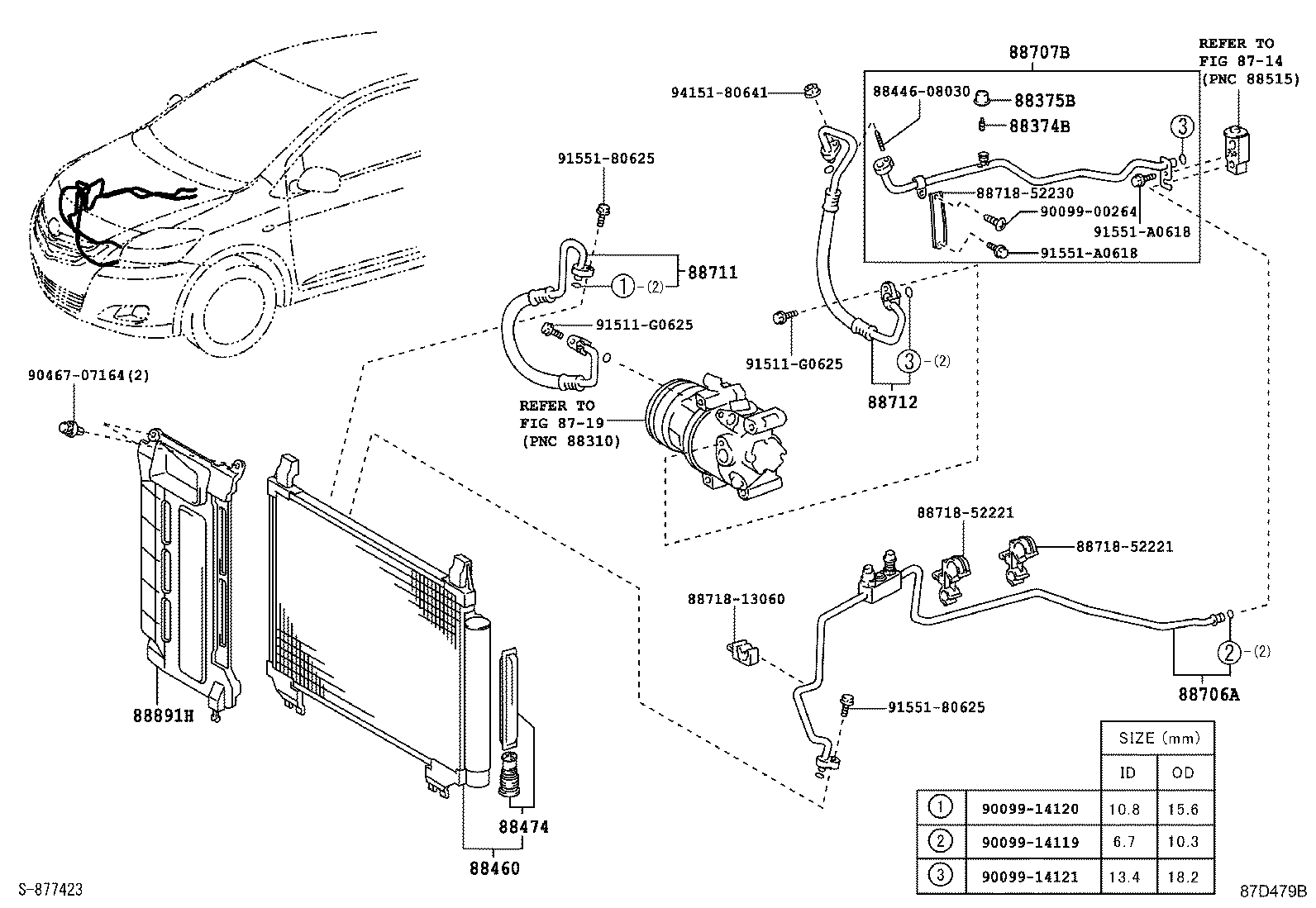

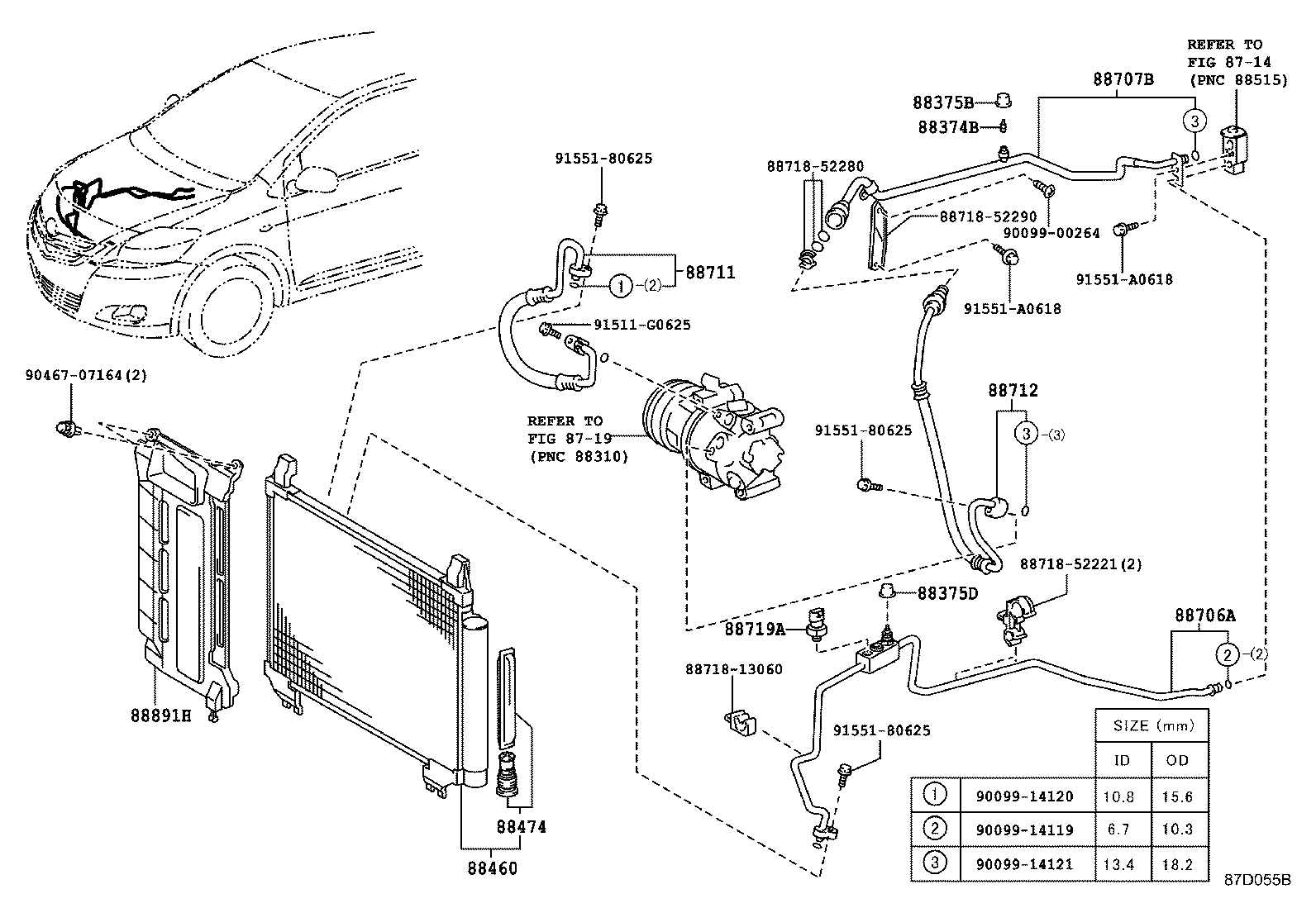

Figure 878060E 878060E 2006-02 → 2008-08 Figure 87D479B 87D479B 2008-08 → 2012-03 Figure 87D055B 87D055B 2012-03 → — Figure 878061E 878061E 2006-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
