Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

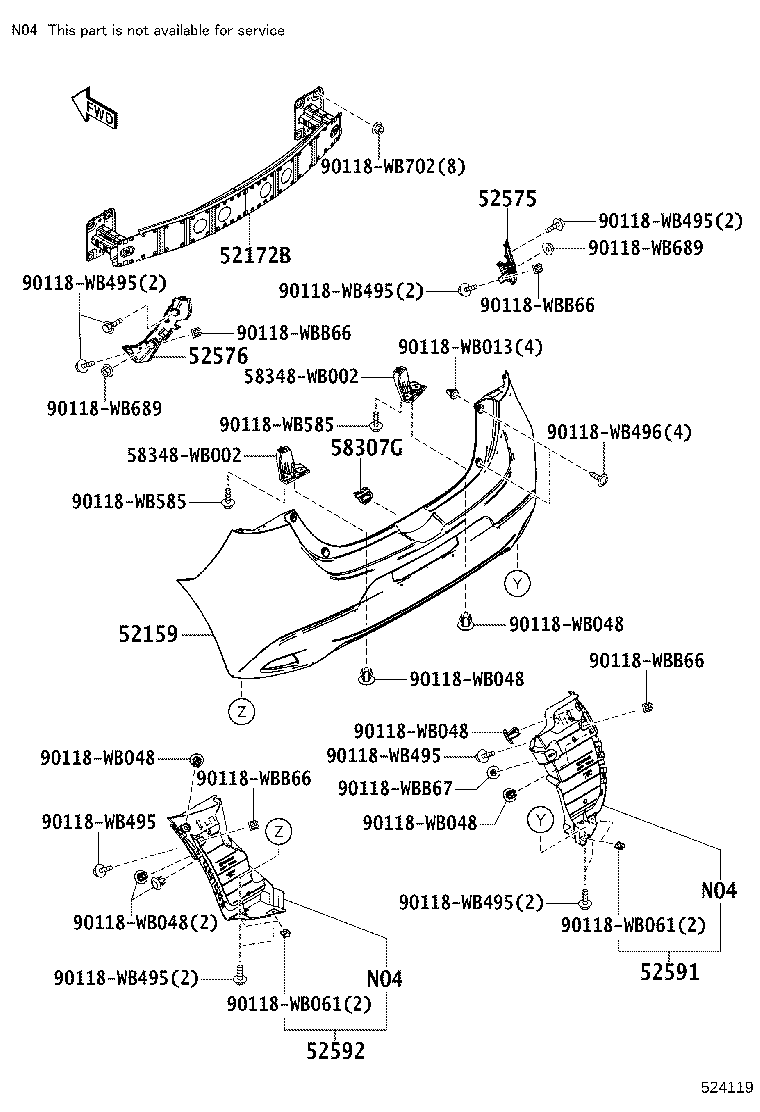

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52159 — Cover, Rear Bumper | ||||
| 52159-WB001 note |
Cover, Rear Bumper
2015-08 → 2016-07
ended
|
DD1C,1D | — | |
| 52159-WB001 note |
Cover, Rear Bumper
2016-07 → 2016-09
ended
|
DB7P,DD1# | — | |
| 52159-WB001 note |
Cover, Rear Bumper
2016-09 → —
|
DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# | — | |
| 52159-WB001 note |
Cover, Rear Bumper
2015-06 → 2016-07
ended
|
DB7P,DD1B | — | |
| 52159-WB003 |
Cover, Rear Bumper
2015-06 → —
|
DADW1,DAEA1,DB7P,DD1B,F4,F5,DM0S,0T | — | |
| 52159-WB004 note |
Cover, Rear Bumper
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52159-WB005 note |
Cover, Rear Bumper
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52172B — Reinforcement, Rear Bumper, NO.2 | ||||
| 52172-WB001 |
Reinforcement, Rear Bumper, NO.2
2015-06 → —
|
DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0# | — | |
| 52172-WB002 |
Reinforcement, Rear Bumper, NO.2
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52575 — Retainer, Rear Bumper Side, RH | ||||
| 52575-WB001 |
Retainer, Rear Bumper Side, RH
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 52575-WB001 |
Retainer, Rear Bumper Side, RH
2015-08 → —
|
DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 52575-WB002 |
Retainer, Rear Bumper Side, RH
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52576 — Retainer, Rear Bumper Side, LH | ||||
| 52576-WB001 |
Retainer, Rear Bumper Side, LH
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 52576-WB001 |
Retainer, Rear Bumper Side, LH
2015-08 → —
|
DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 52576-WB002 |
Retainer, Rear Bumper Side, LH
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52591 — Seal, Rear Bumper Side, RH | ||||
| 52591-WB001 |
Seal, Rear Bumper Side, RH
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 52591-WB001 |
Seal, Rear Bumper Side, RH
2015-08 → —
|
DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 52591-WB002 |
Seal, Rear Bumper Side, RH
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 52592 — Seal, Rear Bumper Side, LH | ||||
| 52592-WB001 |
Seal, Rear Bumper Side, LH
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 52592-WB001 |
Seal, Rear Bumper Side, LH
2015-08 → —
|
DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 52592-WB002 |
Seal, Rear Bumper Side, LH
2019-08 → —
|
DAEB1,DAEC1 | — | |
| 58307G — Retainer Sub-assy, Back Door Lock Striker | ||||
| 58309-WB001 |
Retainer Sub-assy, Back Door Lock Striker
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 58309-WB001 |
Retainer Sub-assy, Back Door Lock Striker
2015-08 → —
|
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
