Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

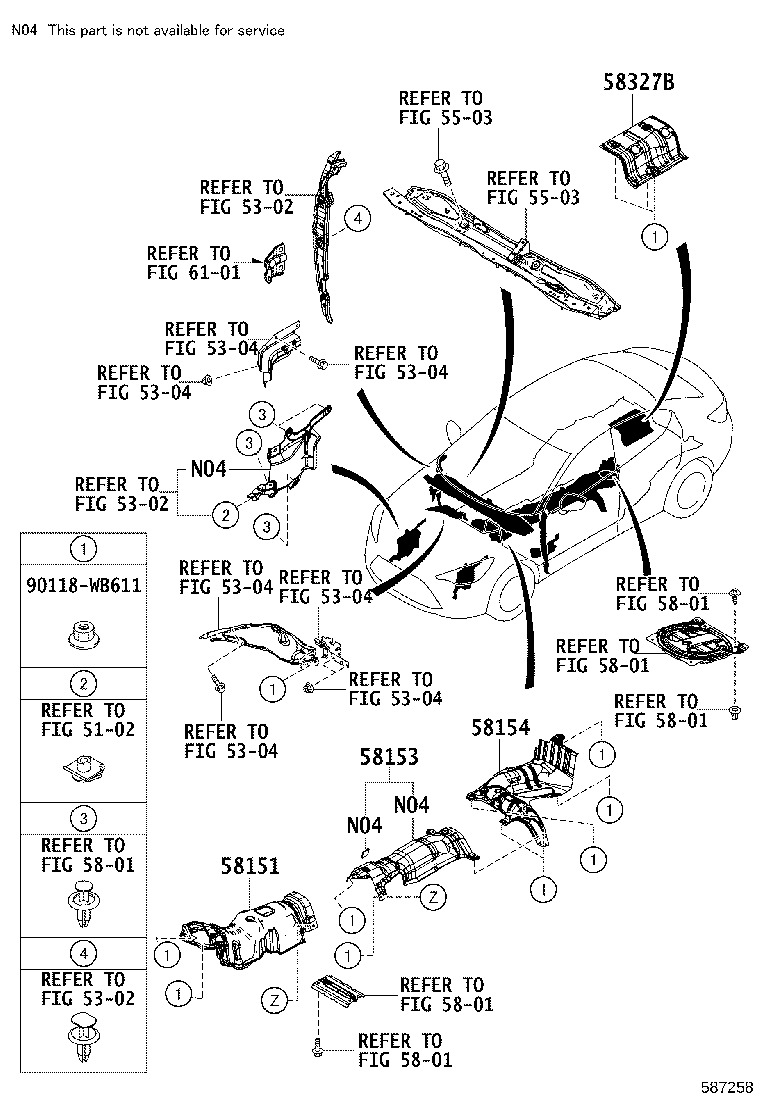

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-WB001 |
Insulator, Front Floor Heat, NO.1
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 58151-WB001 |
Insulator, Front Floor Heat, NO.1
2015-08 → —
|
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-WB001 |
Insulator, Front Floor Heat, NO.2
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 58153-WB001 |
Insulator, Front Floor Heat, NO.2
2015-08 → —
|
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 58154 — Insulator, Front Floor Heat, NO.2 Lower | ||||
| 58154-WB001 |
Insulator, Front Floor Heat, NO.2 Lower
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 58154-WB001 |
Insulator, Front Floor Heat, NO.2 Lower
2015-08 → —
|
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-WB002 |
Insulator, Main Muffler Heat
2015-06 → 2018-08
ended
|
DB7P,DD1B,DM0S,0T | — | |
| 58327-WB002 |
Insulator, Main Muffler Heat
2015-08 → —
|
DADW1,DAEA1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W | — | |
| 58327-WB003 |
Insulator, Main Muffler Heat
2019-08 → —
|
DAEB1,DAEC1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
