Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

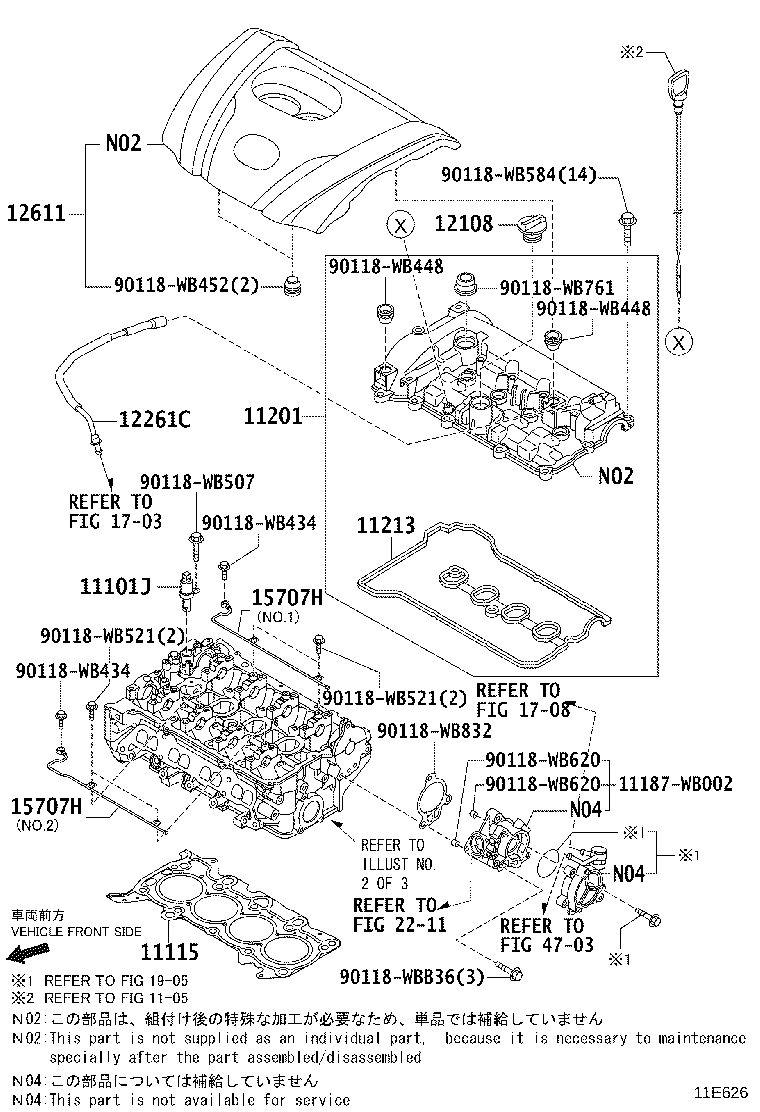

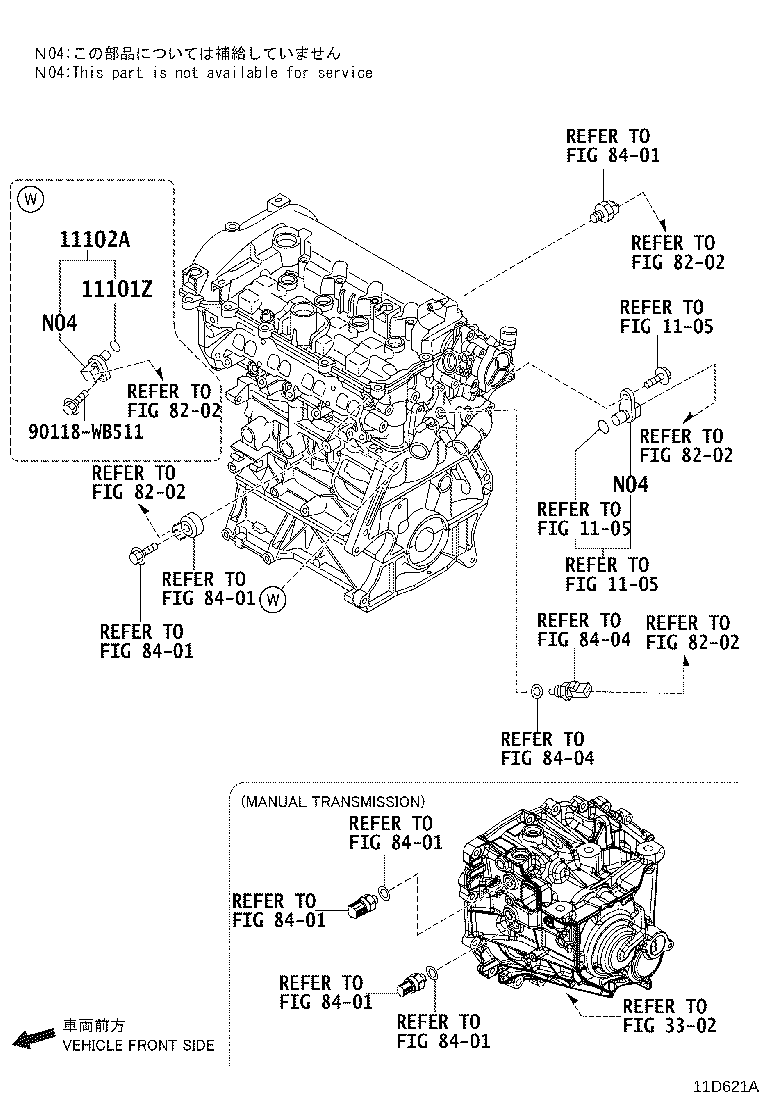

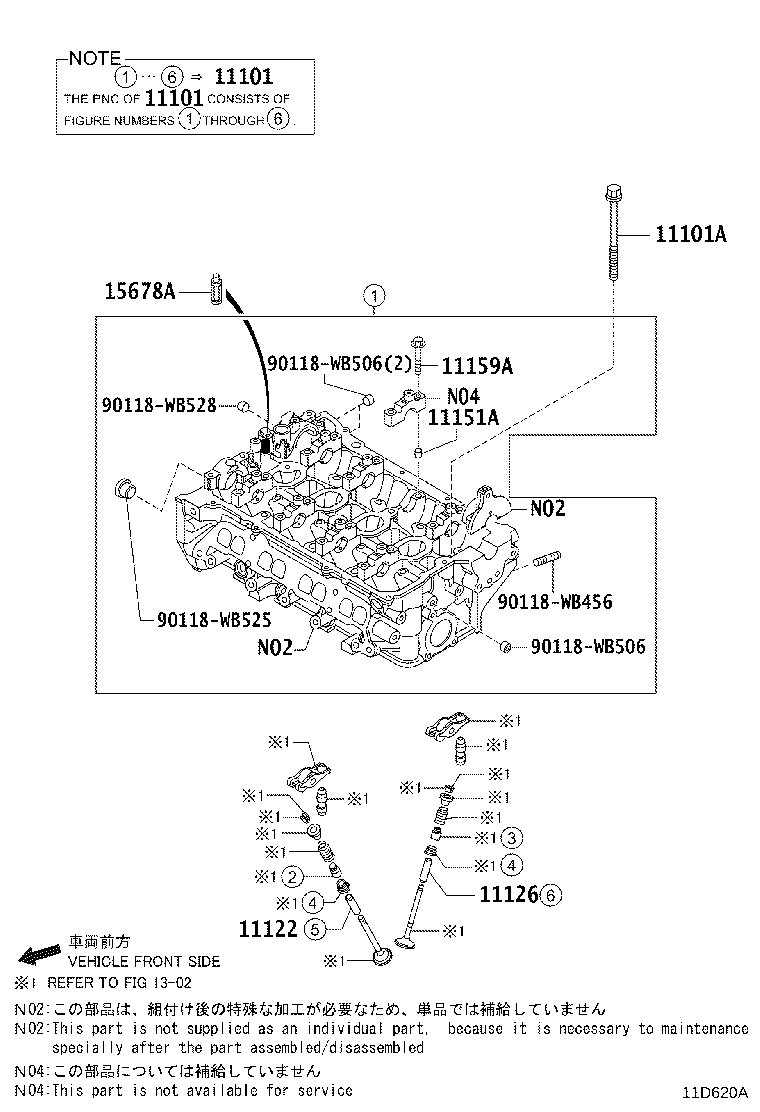

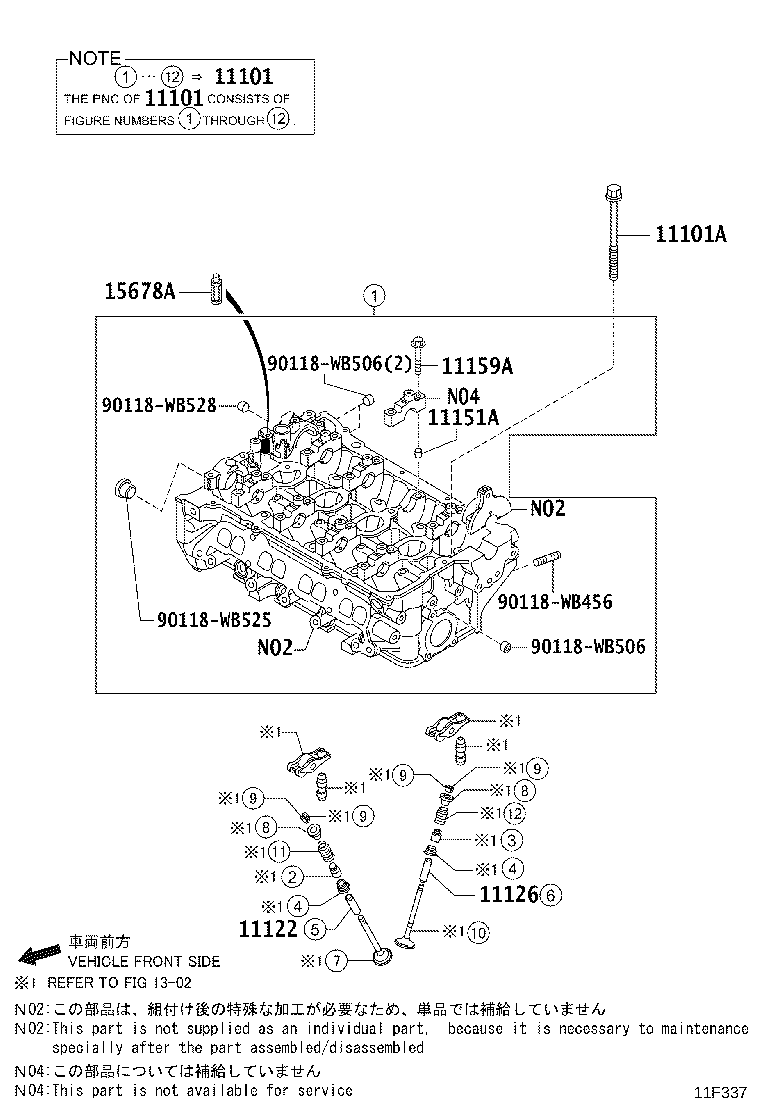

Cylinder Head
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11101Z | O Ring, Cam Position Sensor |
| 11102A | Sensor, Camshaft Position |
| 11115 | Gasket, Cylinder Head |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12261C | Hose, Ventilation |
| 12611 | Cover, Engine, NO.1 |
| 15678A | Filter, Oil Control Valve |
| 15707H | Pipe Sub-assy, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
