Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

12 part groups · 7 illustrations

Illustrations

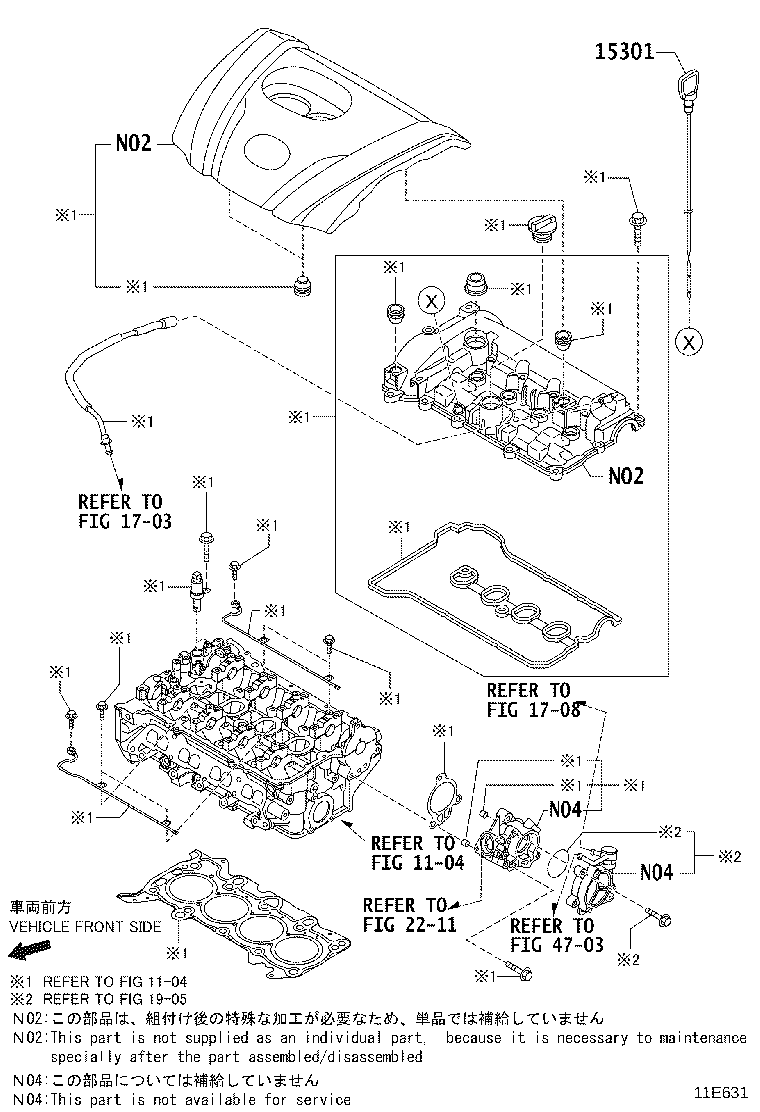

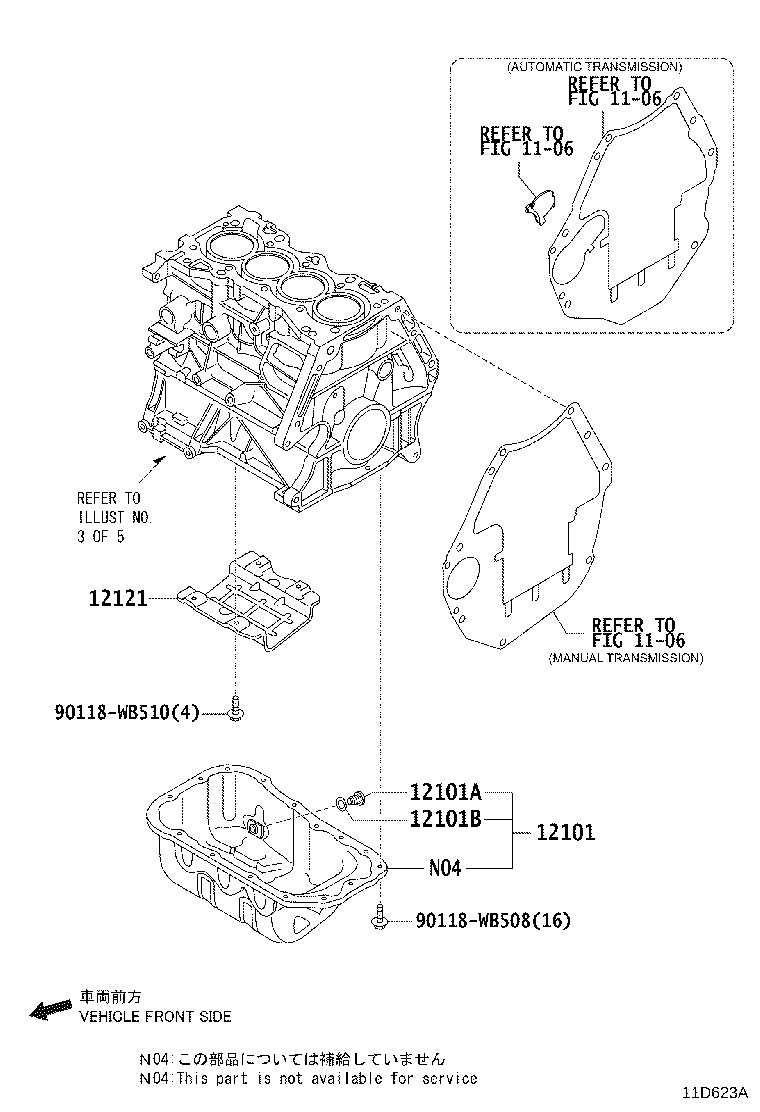

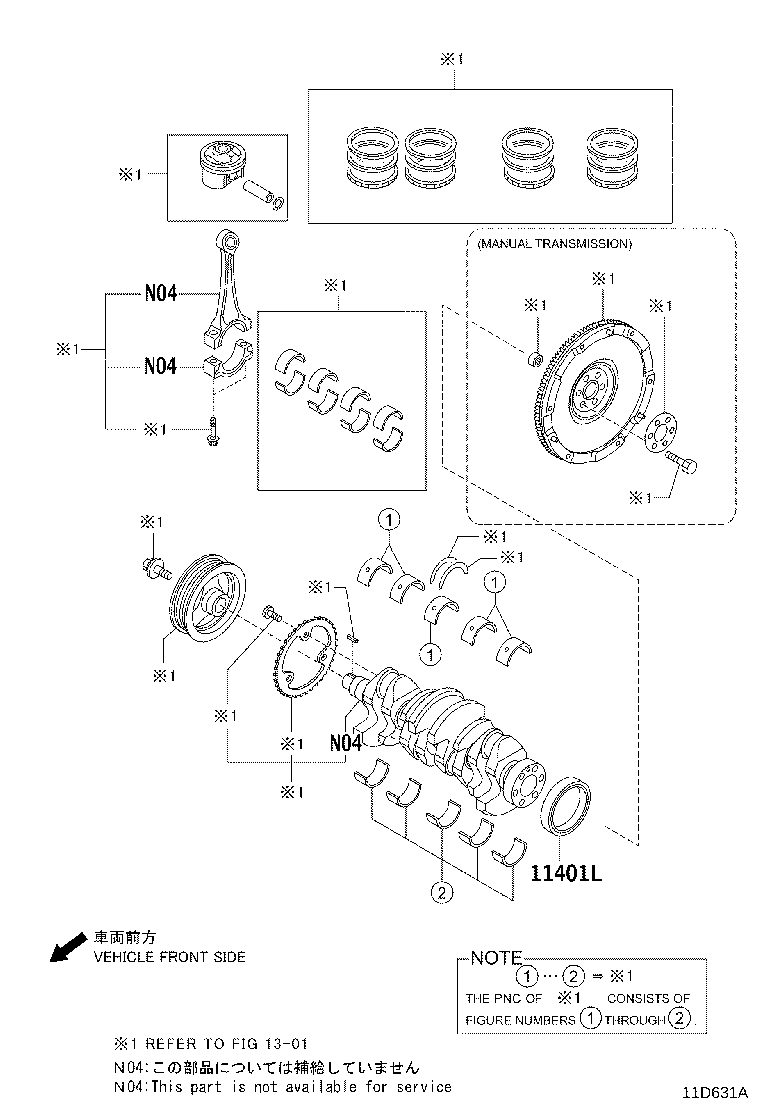

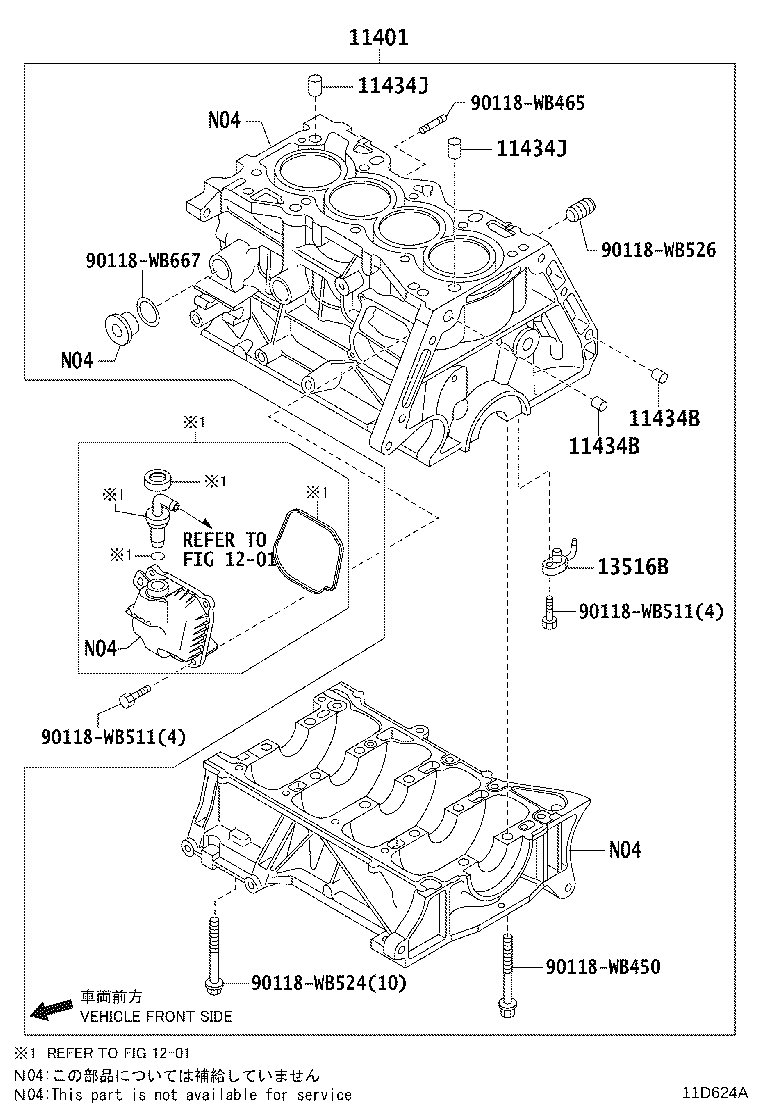

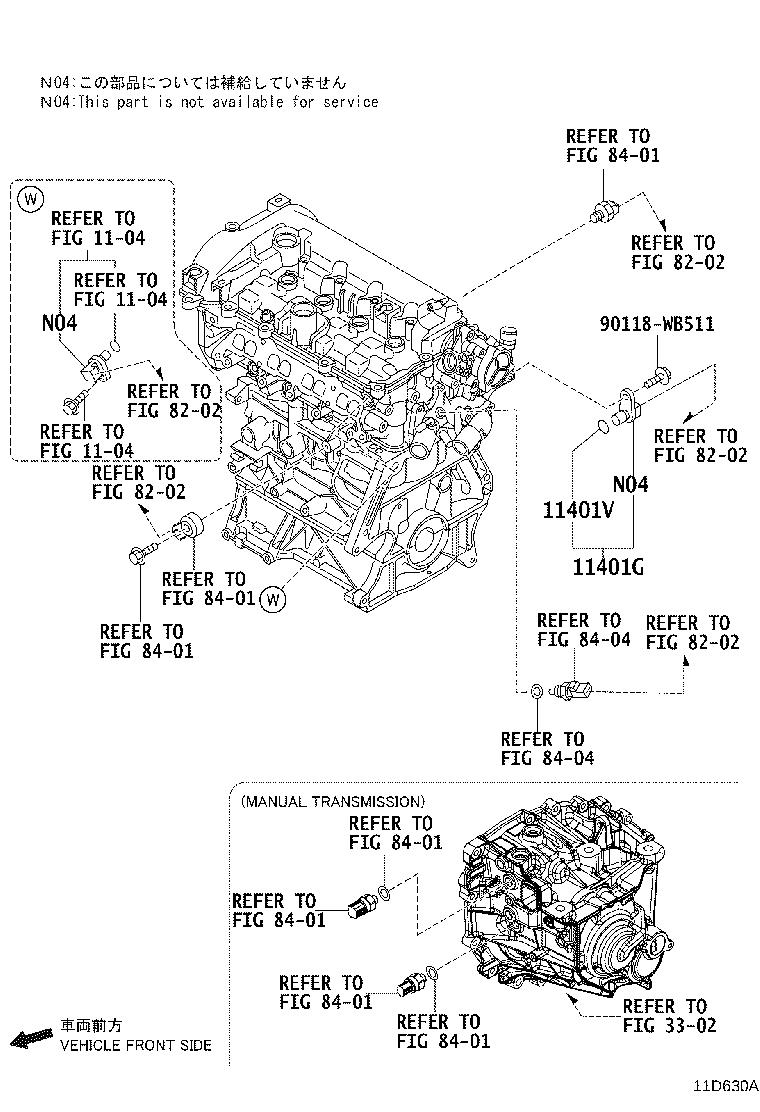

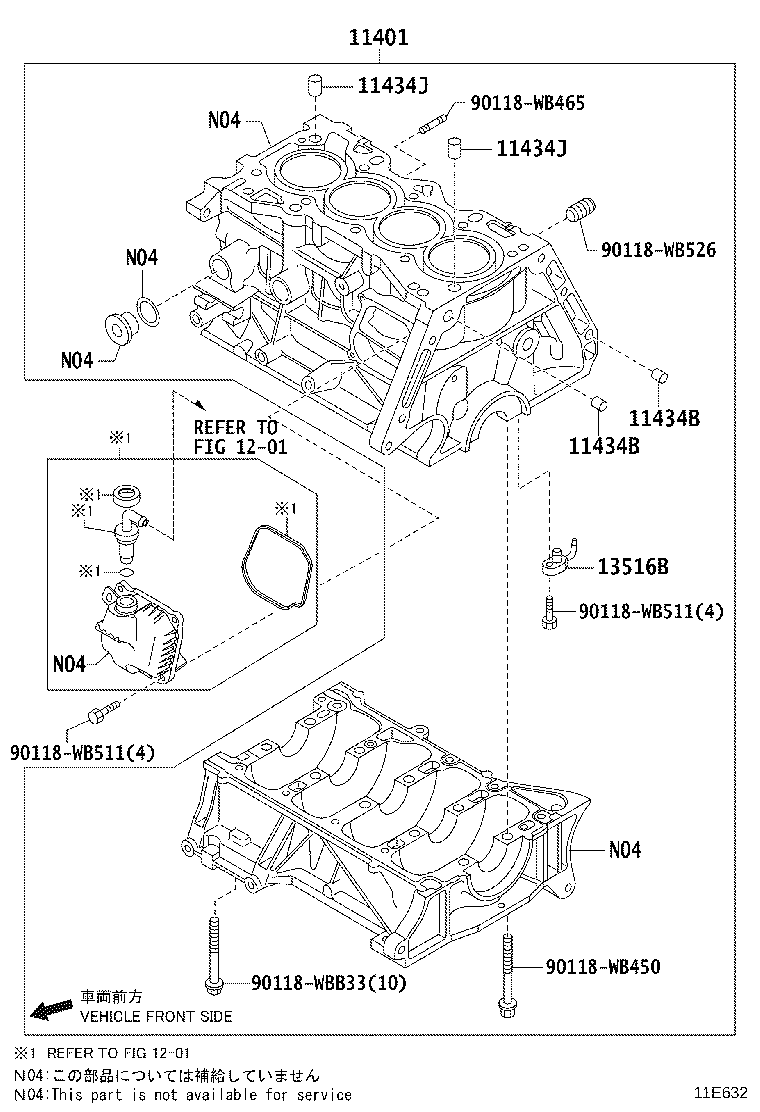

Figure 11D622A 11D622A 2015-06 → 2019-08 Figure 11E631 11E631 2019-08 → — Figure 11D623A 11D623A 2015-06 → — Figure 11D624A 11D624A 2015-06 → 2019-08 Figure 11E632 11E632 2019-08 → — Figure 11D631A 11D631A 2015-06 → — Figure 11D630A 11D630A 2015-06 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11401V O-ring, Crank Position Sensor
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
13516B Jet, Oil
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
