Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09
Timing Gear Cover & Rear End Plate
4 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |

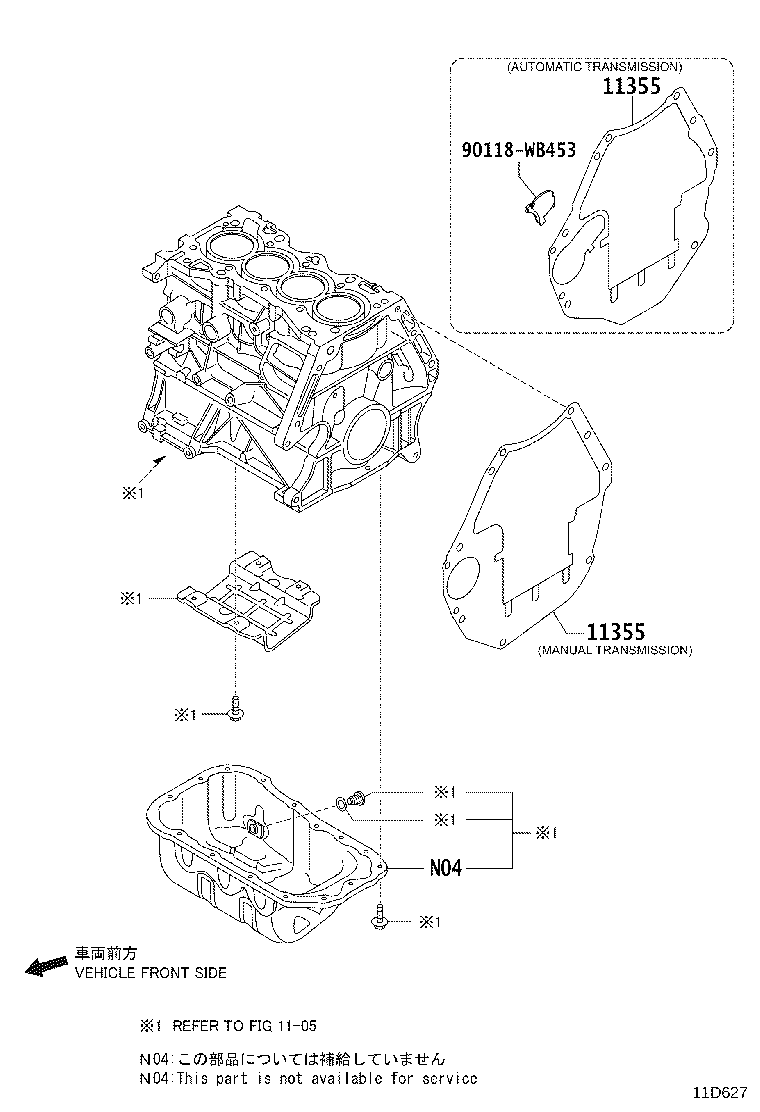

| 11355 | Plate, Rear End |

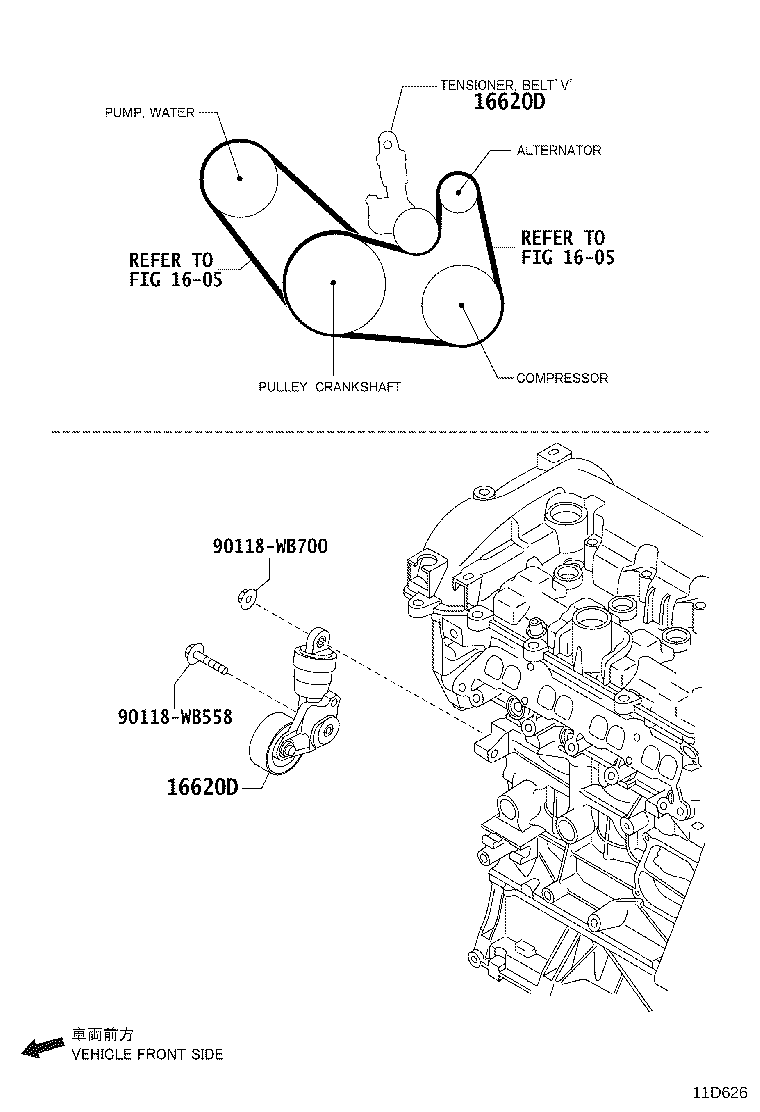

| 16620D | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
