Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

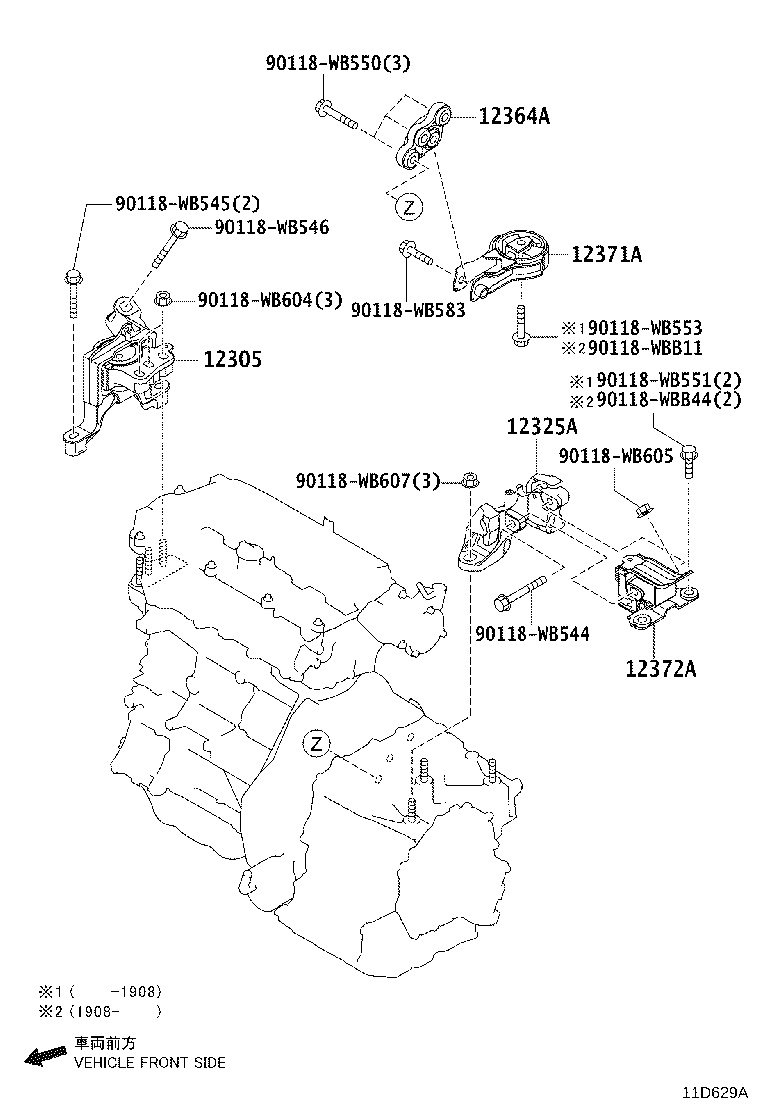

Mounting
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12364A | Rod, Engine Lateral Control |
| 12371A | Insulator, Engine Mounting, Rear |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
