Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

4 part groups · 3 illustrations

Illustrations

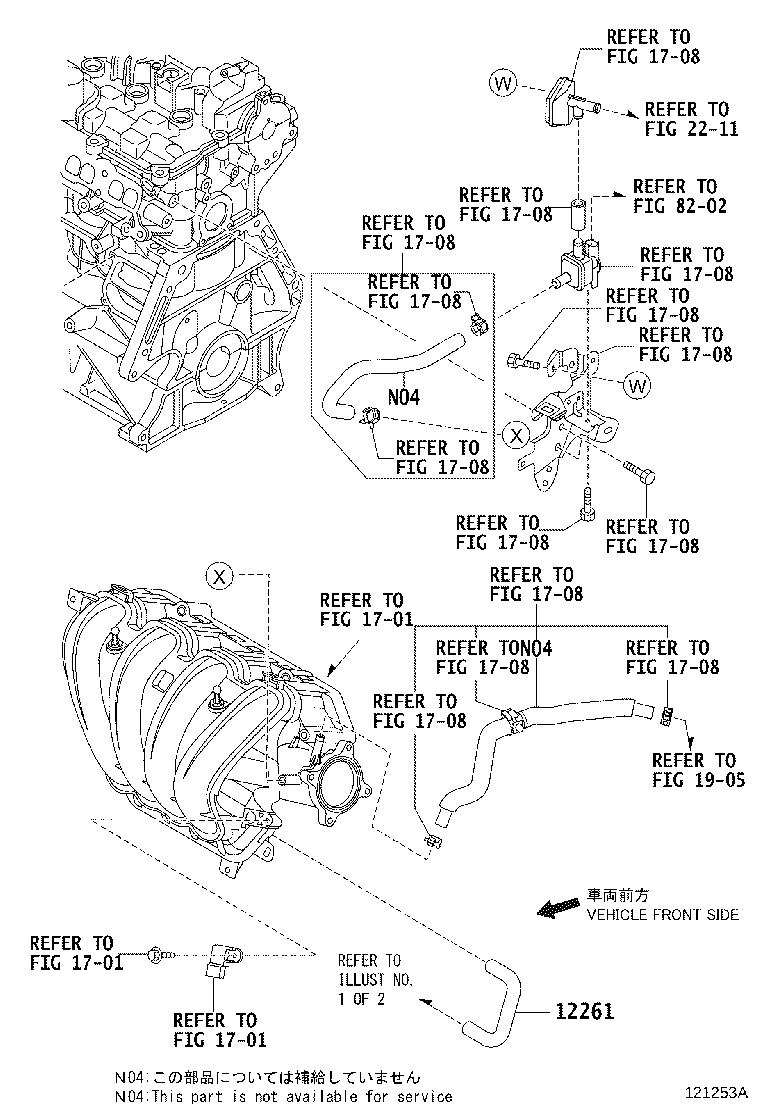

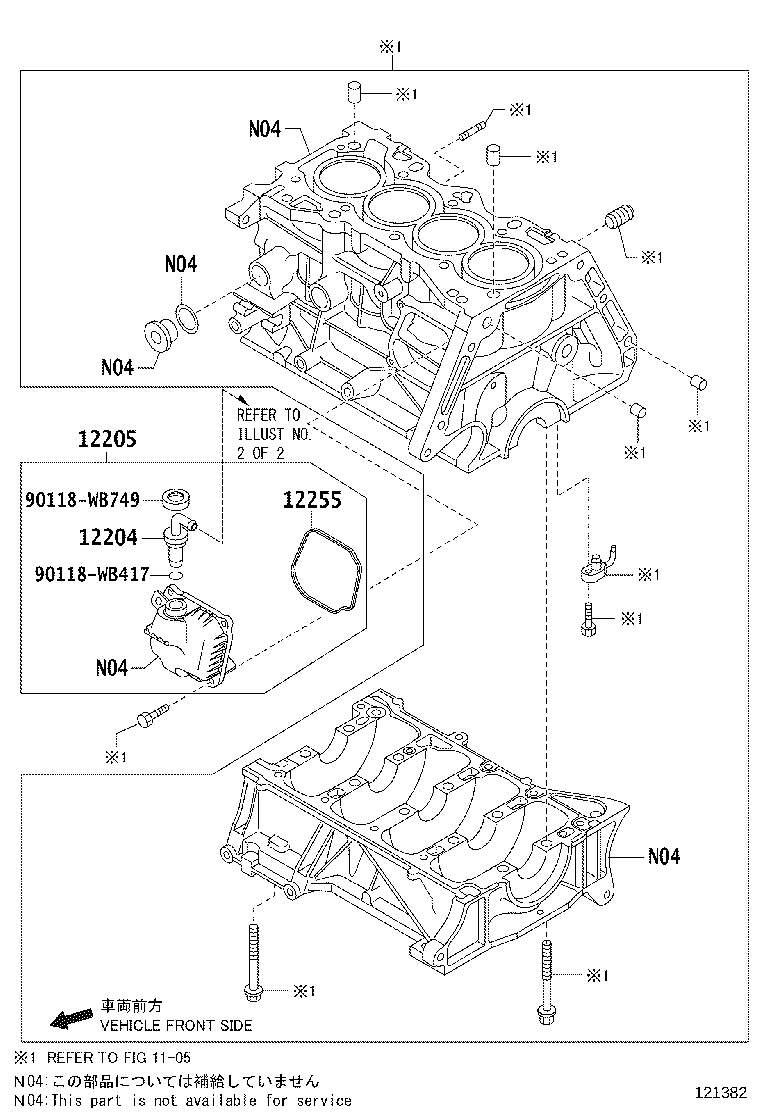

Figure 121252A 121252A 2015-06 → 2019-08 Figure 121382 121382 2019-08 → — Figure 121253A 121253A 2015-06 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205 Case Sub-assy, Ventilation
12255 Gasket, Ventilation
12261 Hose, Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
