Fuel Injection System

9 part groups · 6 illustrations

Illustrations

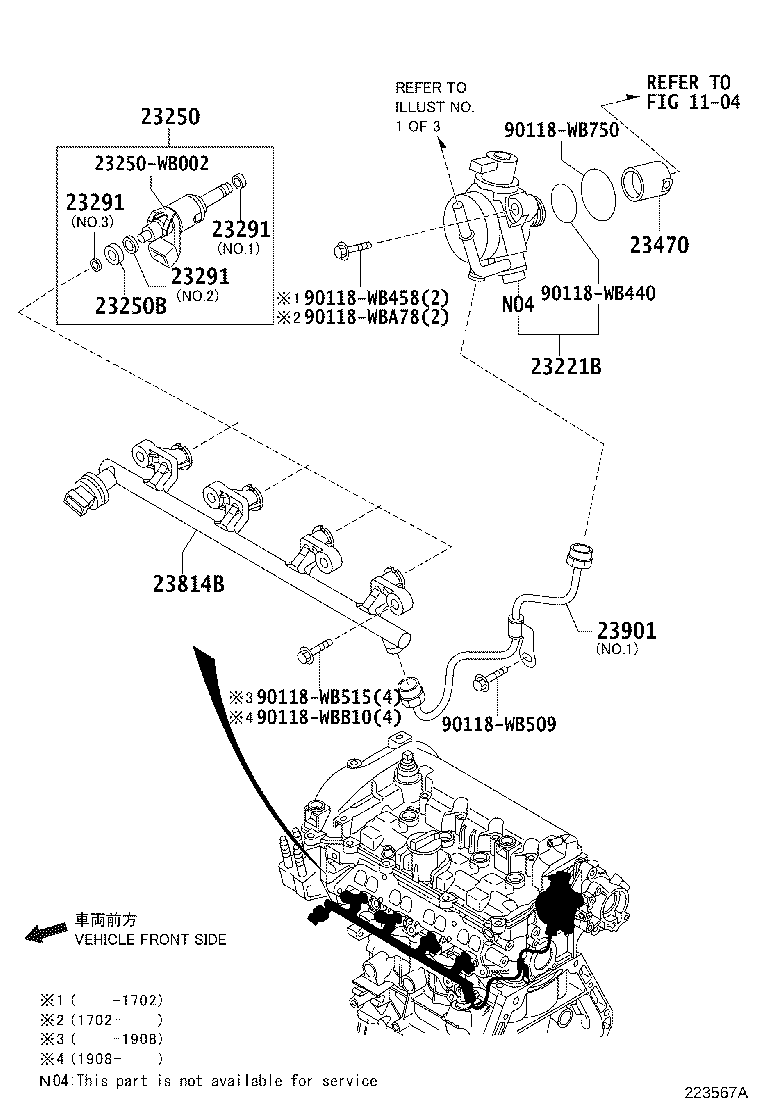

Figure 223199D 223199D 2015-06 → 2018-08 Figure 223630A 223630A 2018-08 → — Figure 223631A 223631A 2018-08 → — Figure 223567A 223567A 2015-06 → — Figure 223568 223568 2015-06 → 2018-08 Figure 223605A 223605A 2018-08 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
23221B Pump, Fuel
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23470 Lifter Assy, Fuel Pump
23814B Pipe, Fuel Delivery
23901 Tube Sub-assy, Fuel
23902 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
