Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09
Clutch Housing & Transmission Case (MTM)
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33111 | Case, Manual Transmission |

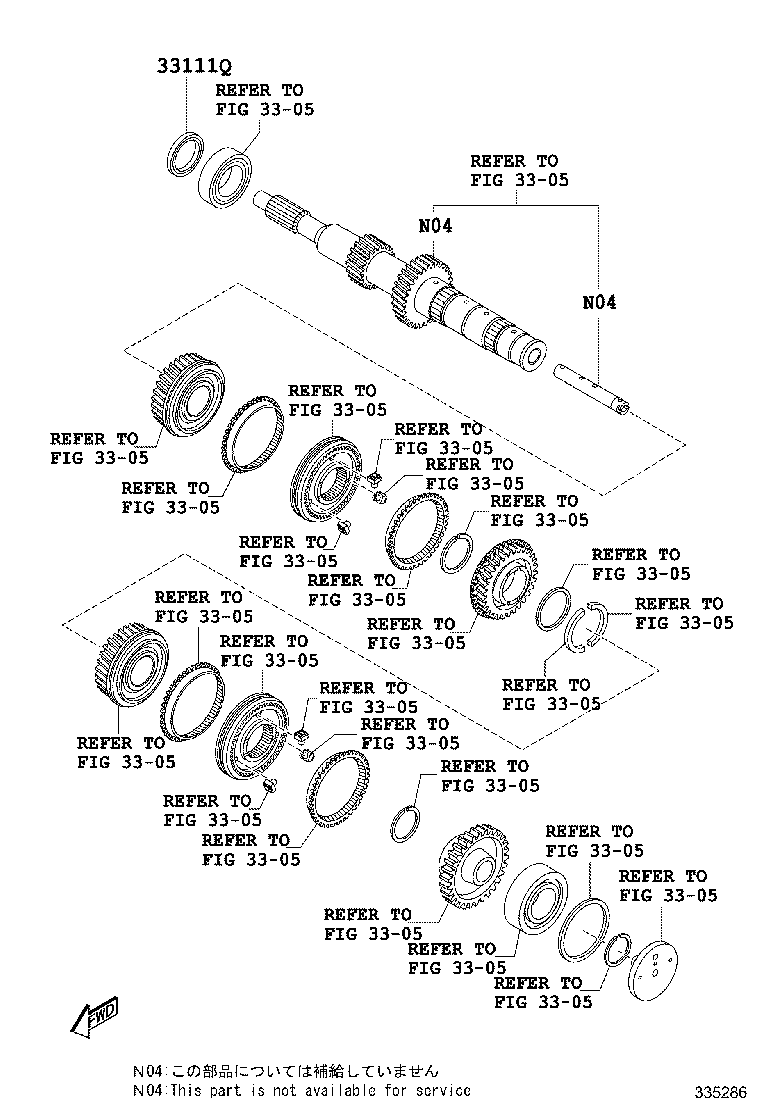

| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111Y | Seal, Oil(FOR TRANSMISSION CASE) |
| 33121G | Cover, Manual Transmission Case |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33449B | Magnet, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
