Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

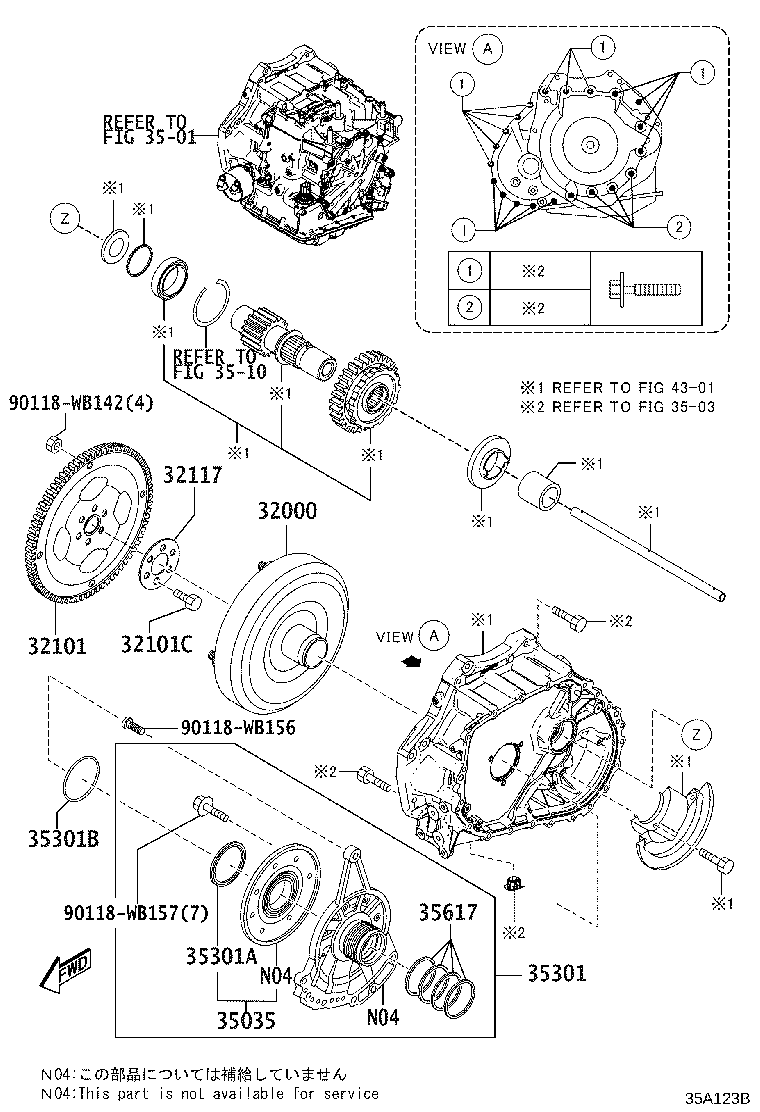

Torque Converter, Front Oil Pump & Chain (ATM)
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000 | Converter Assy, Torque |
| 32101 | Gear Sub-assy, Drive Plate & Ring |
| 32101C | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32117 | Spacer, Drive Plate, Rear |
| 35035 | Body Sub-assy, FR Oil Pump & Gear |
| 35301 | Body Sub-assy, Front Oil Pump |
| 35301A | Seal, Oil (FOR FRONT OIL PUMP) |
| 35301B | Ring, O (FOR FRONT OIL PUMP BODY) |
| 35617 | Ring, Clutch Drum Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
