Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

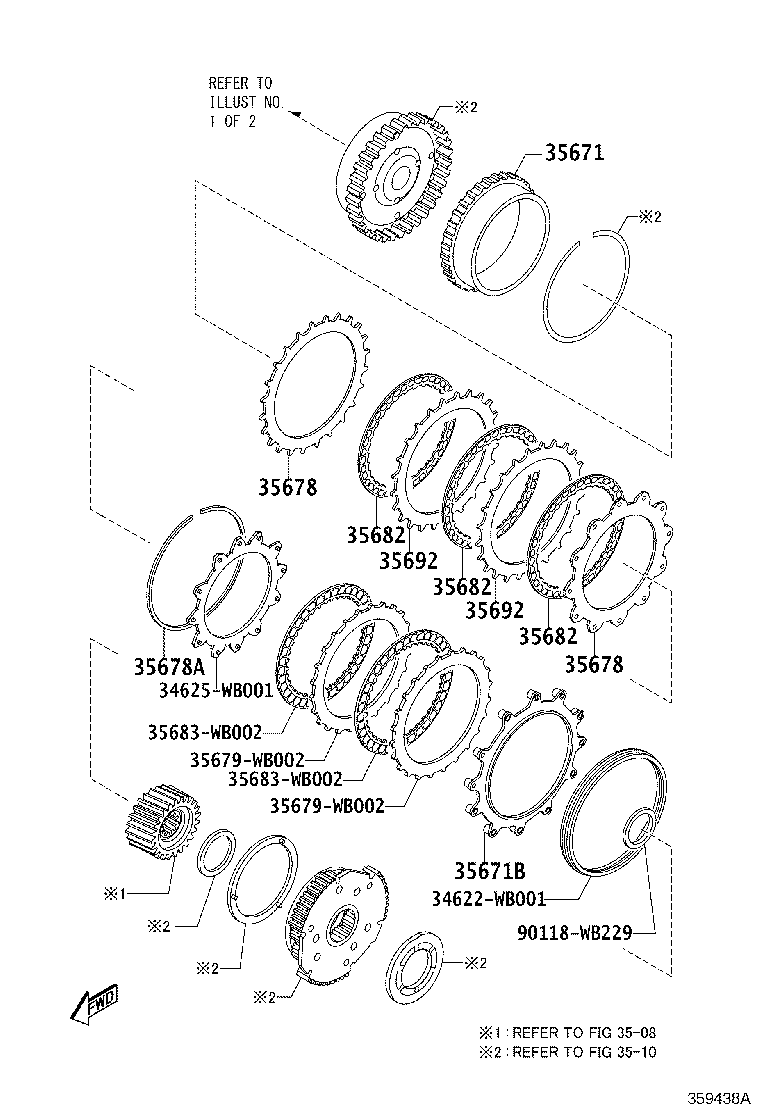

Brake NO.3, 1ST & Reverse Brake (ATM)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35671 | Plate, Brake Cushion |
| 35671B | Spring, Brake Piston Return |
| 35678 | Flange, Brake(FOR 2ND BRAKE) |
| 35678A | Flange, Brake, NO.1(FOR 2ND BRAKE) |
| 35679 | Flange, Brake(FOR 1ST & REVERSE) |
| 35679A | Ring, Hole Snap(FOR BRAKE FLANGE) |
| 35682 | Disc, Brake(FOR 2ND BRAKE) |
| 35683 | Disc, Brake(FOR 1ST & REVERSE) |
| 35692 | Plate, Brake(FOR 2ND BRAKE) |
| 35693 | Plate, Brake (FOR 1ST & REVERSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
