Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

5 part groups · 3 illustrations

Illustrations

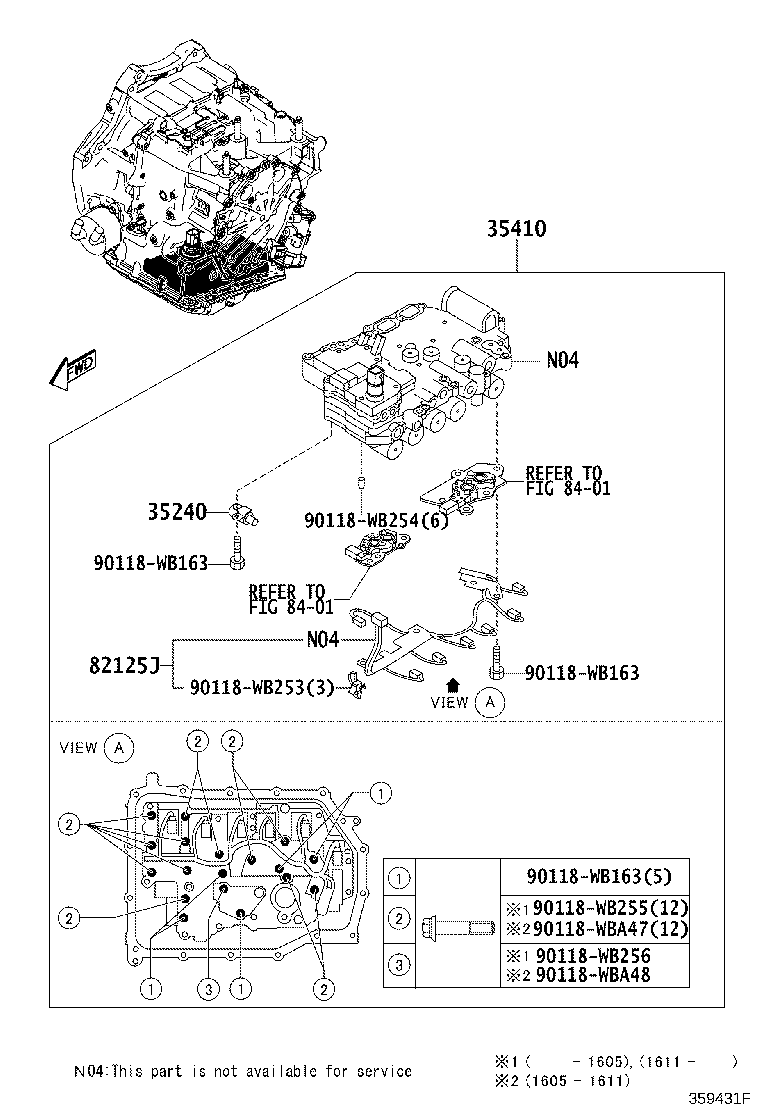

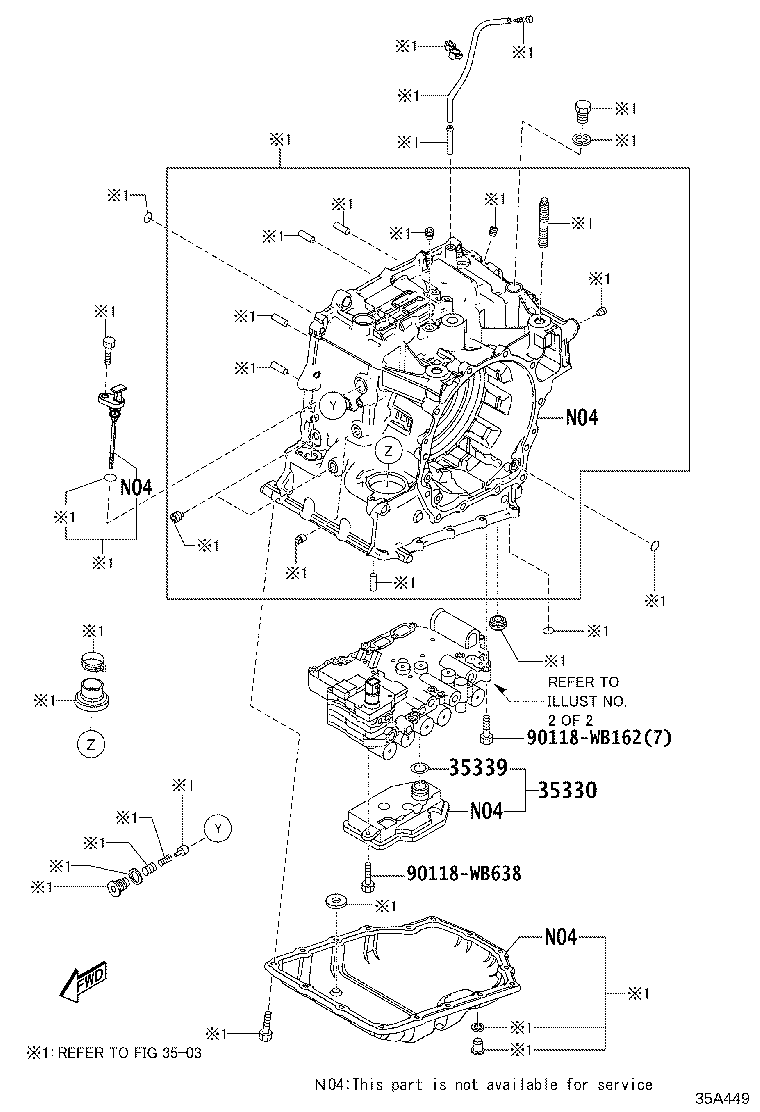

Figure 359433B 359433B 2015-06 → 2019-02 Figure 35A449 35A449 2019-02 → — Figure 359431F 359431F 2015-06 → —

Part groups

PNCDescription
35240 Solenoid Assy, Automatic Transmission 3Way
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35410 Body Assy, Transmission Valve
82125J Wire, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
